What is an Inductor?

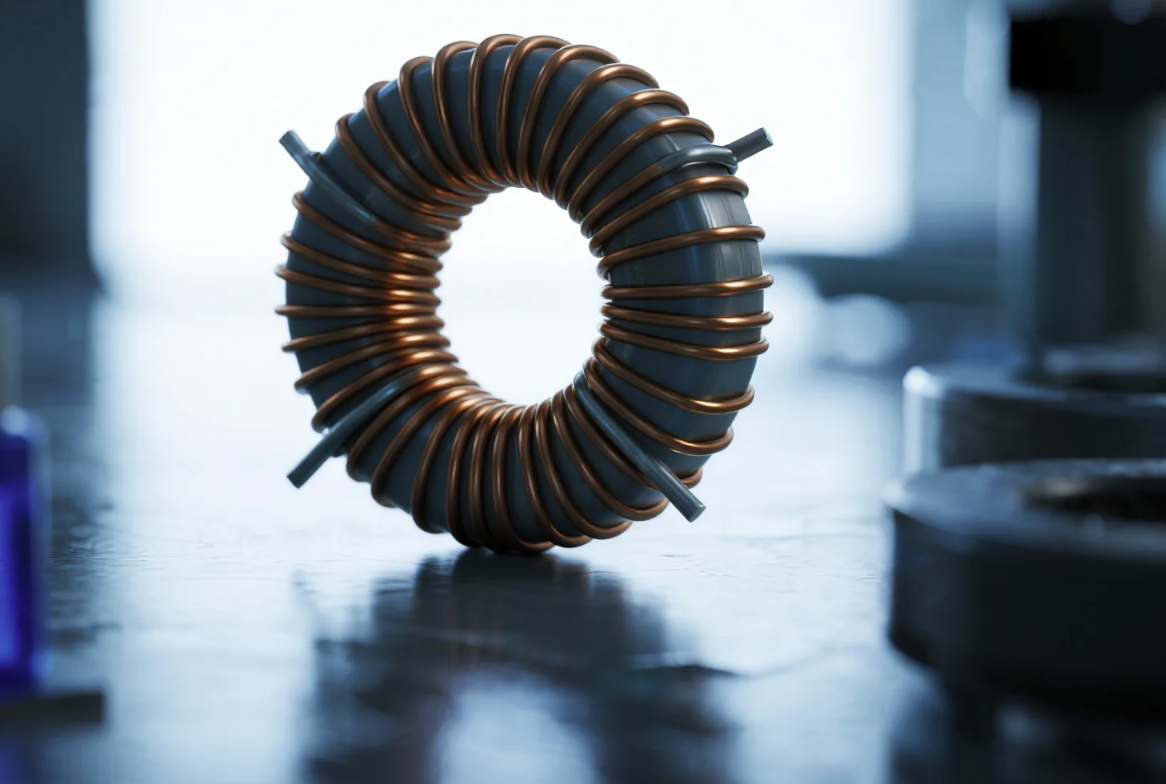

An inductor is one of the most fundamental and core passive components in electronic circuits, alongside resistors and capacitors, collectively known as the "Big Three Passive Components." It operates on the principle of electromagnetic induction and is essentially a device capable of storing magnetic field energy. From a structural perspective, an inductor typically consists of a coil wound from conductive wire. When electric current flows through the coil, it generates a magnetic field around it; when the current changes, the magnetic field changes accordingly, inducing an electromotive force (EMF) within the coil that opposes the change in current. This property is referred to as "inductance," measured in Henry (H), with commonly used subunits including millihenry (mH) and microhenry (μH).


The working principle of an inductor is rooted in Faraday's Law of Electromagnetic Induction and Lenz's Law. According to Faraday's Law, a change in magnetic flux through a coil induces an electromotive force; Lenz's Law states that the direction of this induced EMF is always such that it opposes the change in magnetic flux that produced it. Consequently, an inductor presents extremely low resistance to direct current (approximately a short circuit), while presenting inductive reactance to alternating current. The higher the frequency and the greater the inductance, the larger the reactance. This characteristic makes the inductor an irreplaceable component in filtering, oscillation, and impedance matching circuits.

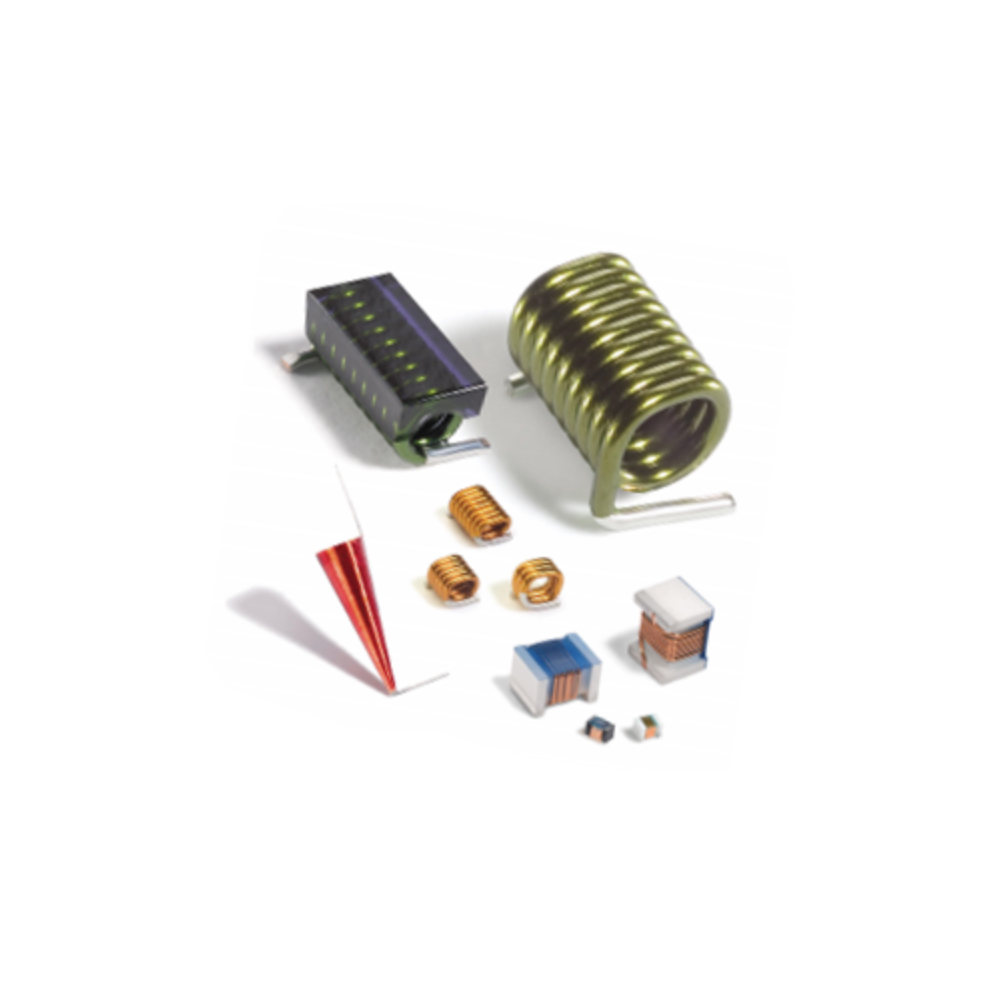

In terms of structural classification, inductors encompass a wide variety of types. Based on core materials, they can be categorized into air-core inductors (no magnetic core, excellent linearity, commonly used in high-frequency applications), ferrite inductors (low high-frequency losses, widely used in switching power supplies and RF circuits), iron powder core inductors (high saturation flux density, suitable for high-current applications), and amorphous/nanocrystalline inductors (outstanding high-frequency characteristics). By package form, there are through-hole types (such as drum core inductors and color-ring inductors) and surface-mount devices (SMD power inductors, multilayer chip inductors, etc.), with the latter accommodating the miniaturization and automated production requirements of modern electronic products. Additionally, there are special types such as variable inductors (adjusting inductance by changing core position) and common-mode inductors (used for electromagnetic interference suppression).

The core parameters of an inductor include: inductance value (nominal value and tolerance range), rated current (temperature rise limit under DC resistance), saturation current (maximum current before core saturation), DC resistance (DCR, affecting efficiency and heat generation), self-resonant frequency (SRF, above which the inductor exhibits capacitive behavior), and quality factor Q (representing the ratio of stored energy to energy loss). Engineers must comprehensively consider these parameters during circuit design; for instance, energy storage inductors in switching power supplies require attention to saturation current, while RF circuits prioritize Q factor and SRF.

In application domains, inductors permeate nearly all electronic systems. In power management, DC-DC converters (Buck, Boost, and other topologies) utilize inductors for temporary energy storage and transfer, working in conjunction with capacitors to form LC filters that smooth output voltage. In telecommunications, inductors combined with capacitors form LC resonant circuits for frequency selection, oscillation, and impedance matching, serving as critical components in the RF front-ends of radios, mobile phones, and base stations. In electromagnetic compatibility (EMC) design, common-mode and differential-mode inductors effectively suppress conducted interference, ensuring equipment compliance with EMC standards. In automotive electronics, inductors are employed in LED drivers, motor controls, onboard chargers, and must meet stringent reliability standards such as AEC-Q200. In recent years, driven by developments in new energy, 5G communications, and artificial intelligence, demand for high-frequency, high-current, and miniaturized inductors has continued to grow, promoting advancements in planar inductors, thin-film inductors, and integrated magnetic components.

Notably, inductors and capacitors exhibit a profound duality: capacitors store electric field energy and oppose voltage changes, while inductors store magnetic field energy and oppose current changes. In LC oscillation circuits, they exchange energy to produce oscillations at specific frequencies; in LC filters, they collaborate to achieve low-pass, high-pass, or band-pass characteristics. This dual relationship serves not only as an important tool for circuit analysis but also reflects the elegant symmetry inherent in electromagnetic theory.

In summary, as a cornerstone of electromagnetic energy conversion and control, the importance of the inductor is self-evident. From the early days of wireless telegraphy to modern nanoscale integrated circuits, inductors have consistently played a pivotal role. Understanding the working principles, characteristic parameters, and application scenarios of inductors constitutes an essential foundation for mastering electronic circuit design.
