| Brand | ADI |
| Date Code | 2210 |
| Packing | Reel |

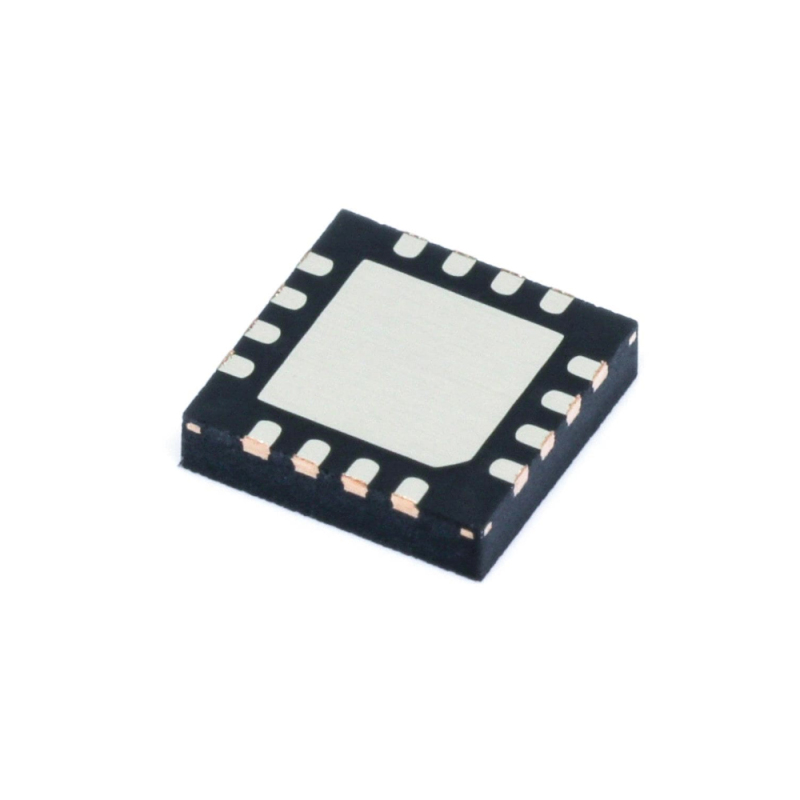

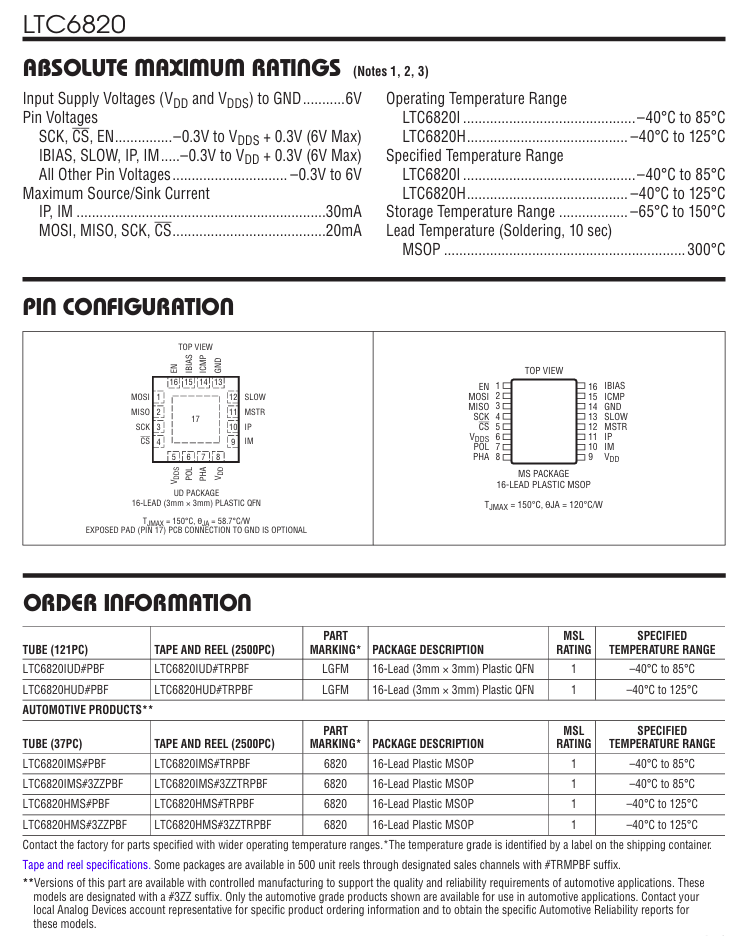

| Package | QFN-16 |
| Minimum Packing | 2500pcs |
Interface - Specialized isoSPI Iso Communications Int
Features：
AEC-Q100 Qualified for Automotive Applications
1Mbps Isolated SPI Data Communications
Simple Galvanic Isolation Using Standard Transformers
Bidirectional Interface Over a Single Twisted Pair
Supports Cable Lengths Up to 100 Meters
Very Low EMI Susceptibility and Emissions
Configurable for High Noise Immunity or Low Power
Engineered for ISO26262 Compliant Systems
Requires No Software Changes in Most SPI Systems
Ultralow, 2µA Idle Current
Automatic Wake-Up Detection
Operating Temperature Range: –40°C to 125°C
2.7V to 5.5V Power Supply
Interfaces to All Logic from 1.7V to 5.5V
Available in 16-Lead QFN and MSOP Packages

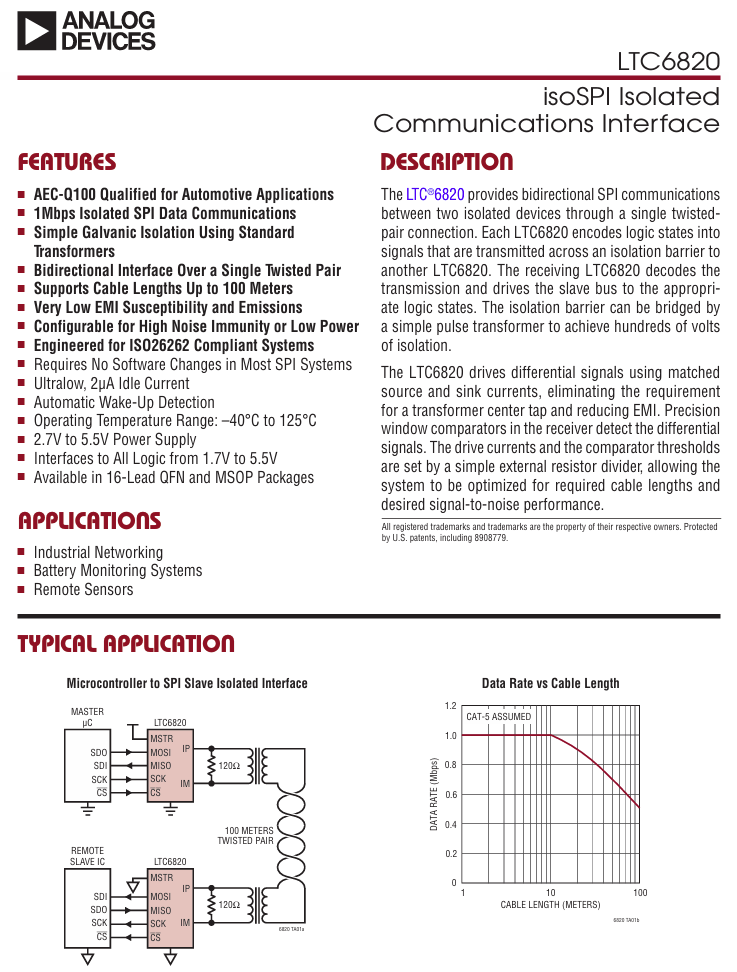

The LTC6820 provides bidirectional SPI communications between two isolated devices through a single twisted-pair connection. Each LTC6820 encodes logic states into signals that are transmitted across an isolation barrier to another LTC6820. The receiving LTC6820 decodes the transmission and drives the slave bus to the appropriate logic states. The isolation barrier can be bridged by a simple pulse transformer to achieve hundreds of volts of isolation.
The LTC6820 drives differential signals using matched source and sink currents, eliminating the requirement for a transformer center tap and reducing EMI. Precision window comparators in the receiver detect the differential signals. The drive currents and the comparator thresholds are set by a simple external resistor divider, allowing the system to be optimized for required cable lengths and desired signal-to-noise performance.
Applications
Industrial Networking
Battery Monitoring Systems
Remote Sensors
