Digital Isolators 25MBD SINGLE CHANNEL DIGITAL ISO

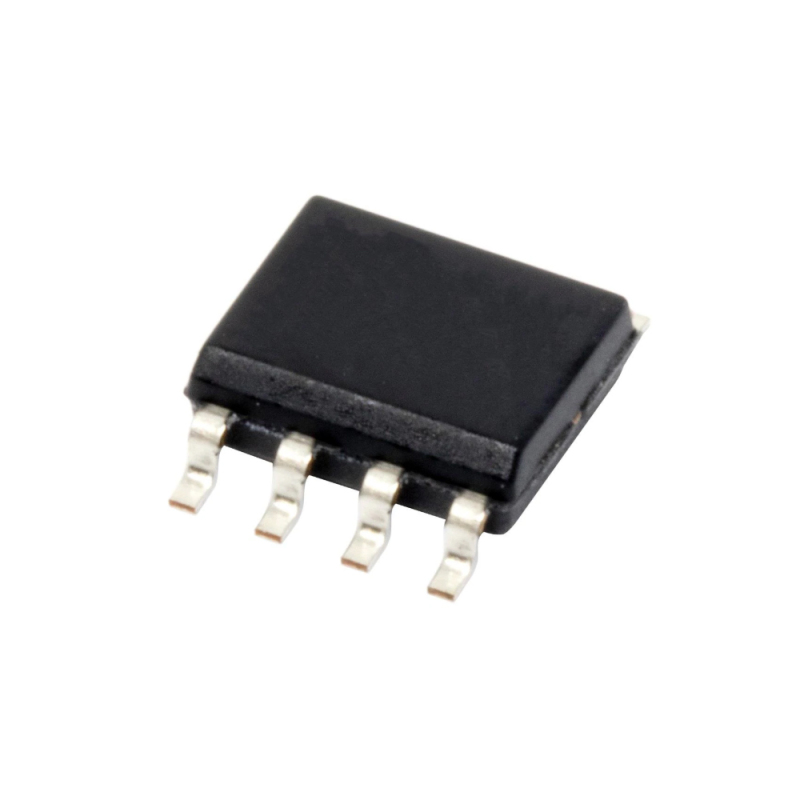

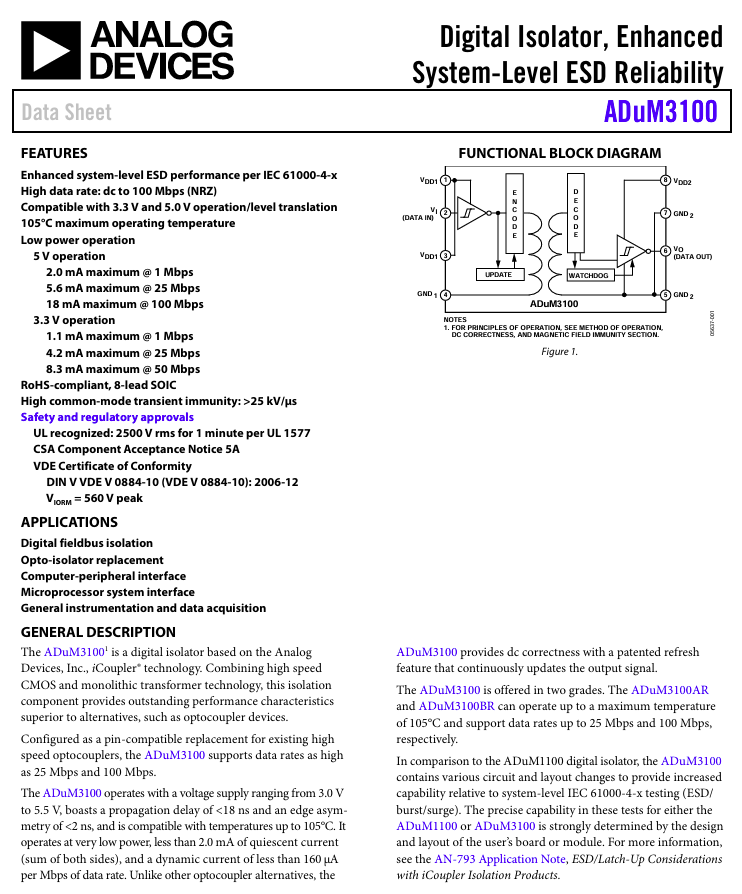

Features：
Enhanced system-level ESD performance per IEC 61000-4-x
Compatible with 3.3 V and
5.0 V operation/level translation
Low Power Operation
5 V operation
2.0 mA maximum @ 1 Mbps
5.6 mA maximum @ 25 Mbps
18 mA maximum @ 100 Mbps
3.3 V operation
1.1 mA maximum @ 1 Mbps
4.2 mA maximum @ 25 Mbps
8.3 mA maximum @ 50 Mbps
105°C maximum operating temperature
High data rate: dc to 100 Mbps (NRZ)
RoHS-compliant, 8-lead SOIC
High common-mode transient immunity: >25 kV/μs
Safety and regulatory approvals
UL recognized: 2500 V rms for 1 minute per UL 1577
CSA Component Acceptance Notice #5A
VDE Certificate of Conformity
DIN V VDE V 0884-10 (VDE V 0884-10): 2006-12
VIORM = 560 V peak

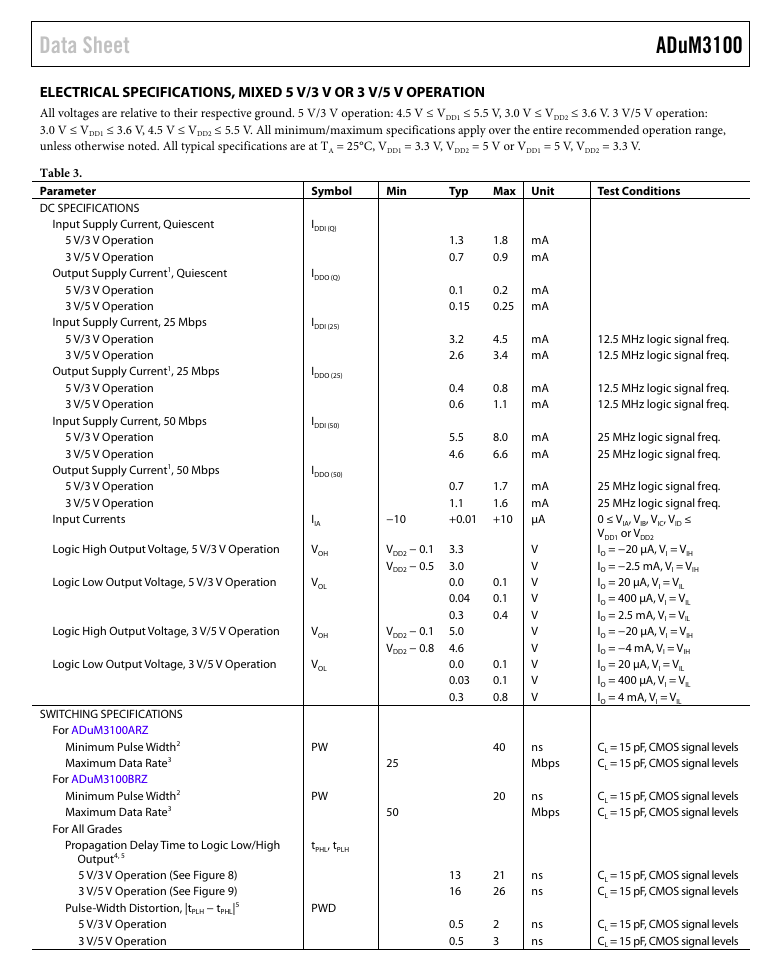

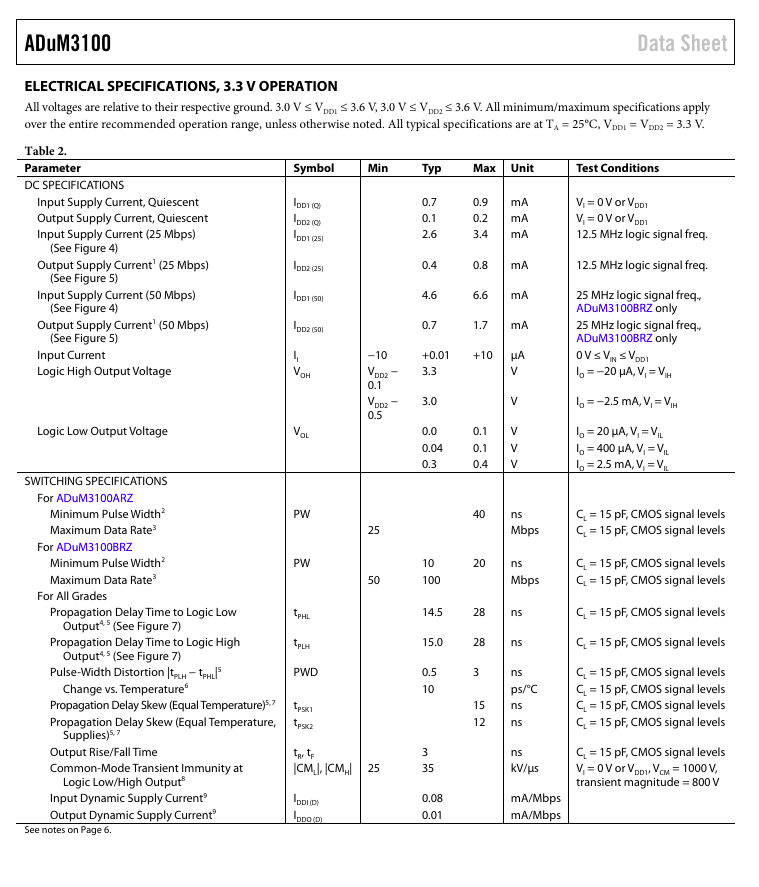

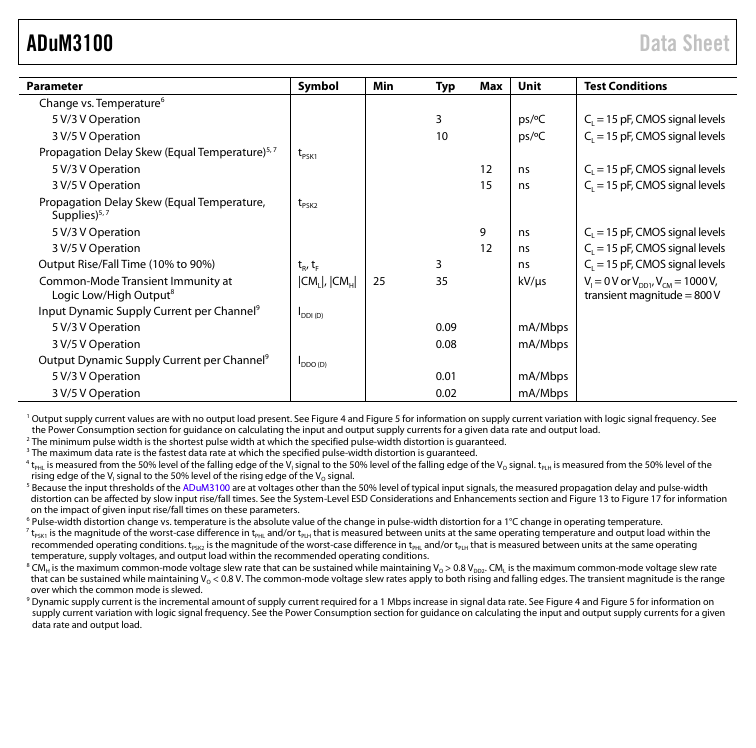

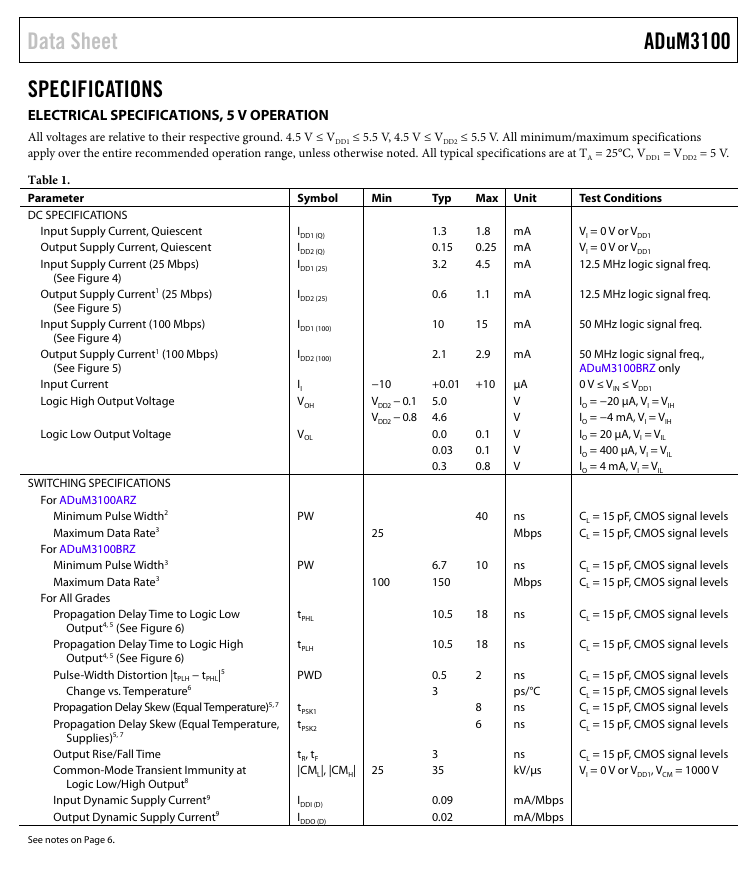

The ADuM3100 is a digital isolator based on the Analog Devices, Inc. iCoupler® technology. Combining high speed CMOS and monolithic transformer technology, this isolation component provides outstanding performance characteristics superior to alternatives, such as optocoupler devices.
Configured as a pin-compatible replacement for existing high speed optocouplers, the ADuM3100 supports data rates as high as 25 Mbps and 100 Mbps.
The ADuM3100 operates with a voltage supply ranging from 3.0 V to 5.5 V, boasts a propagation delay of <18 ns and an edge asymmetry of <2 ns, and is compatible with temperatures up to 105°C. It operates at very low power, less than 2.0 mA of quiescent current (sum of both sides), and a dynamic current of less than 160 μA per Mbps of data rate. Unlike other optocoupler alternatives, the ADuM3100 provides dc correctness with a patented refresh feature that continuously updates the output signal.
The ADuM3100 is offered in two grades. The ADuM3100AR and ADuM3100BR can operate up to a maximum temperature of 105°C and support data rates up to 25 Mbps and 100 Mbps, respectively.
In comparison to the ADuM1100 digital isolator, the ADuM3100 contains various circuit and layout changes to provide increased capability relative to system-level IEC 61000-4-× testing (ESD/burst/surge). The precise capability in these tests for either the ADuM1100 or ADuM3100 is strongly determined by the design and layout of the user’s board or module. For more information, see Application Note AN-793, ESD/Latch-Up Considerations with iCoupler® Isolation Products.
APPLICATIONS
Digital fieldbus isolation
Opto-isolator replacement
Computer-peripheral interface
Microprocessor system interface
General instrumentation and data acquisition
