| Brand | Coilcraft |
| Date Code | 2446 |
| Packing | Reel |
| Package | SMD/SMT |
| Minimum Packing | 600pcs/Reel |

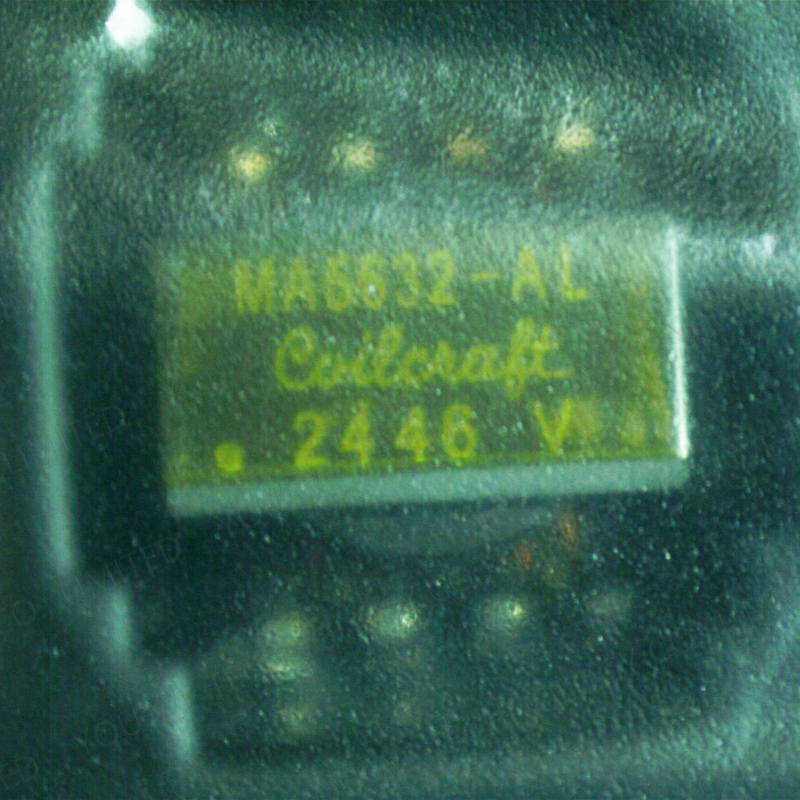

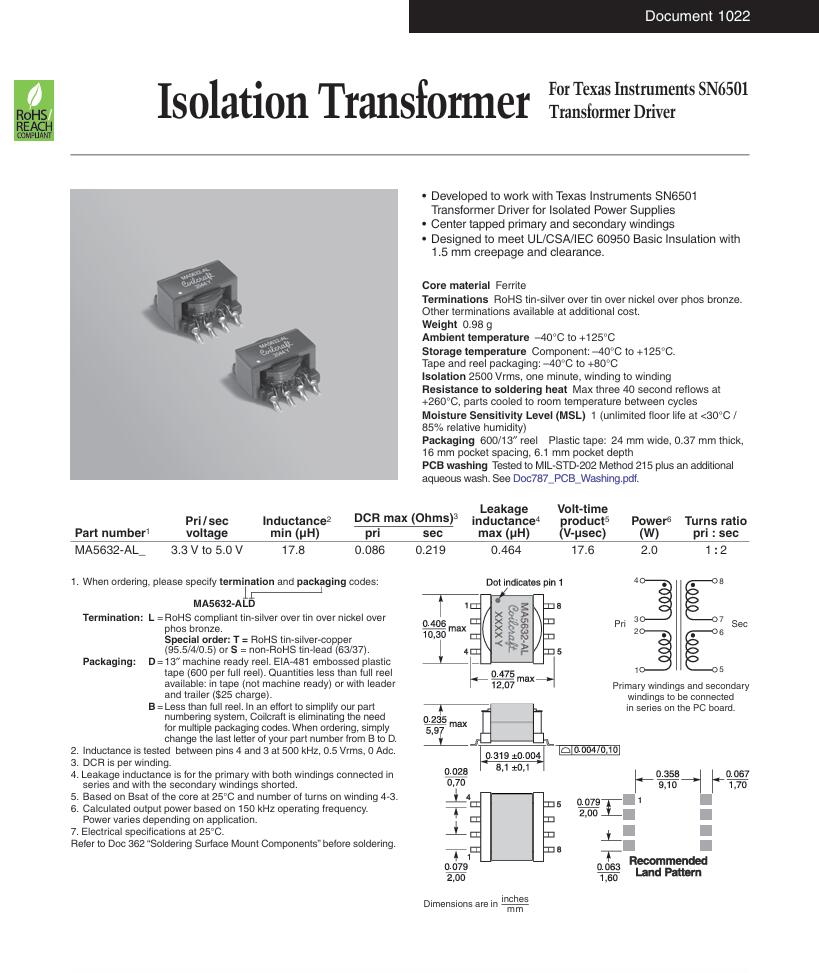

Isolation Transformer For Texas Instruments SN6501 Transformer Driver
Core material Ferrite
Terminations RoHS tin-silver over tin over nickel over phos bronze. Other terminations available at additional cost.
Weight 0.98 g
Ambient temperature –40°C to +125°C
Storage temperature Component: –40°C to +125°C. Tape and reel packaging: –40°C to +80°C
Isolation 2500 Vrms, one minute, winding to winding
Resistance to soldering heat Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL) 1 (unlimited floor life at <30°C/85% relative humidity)

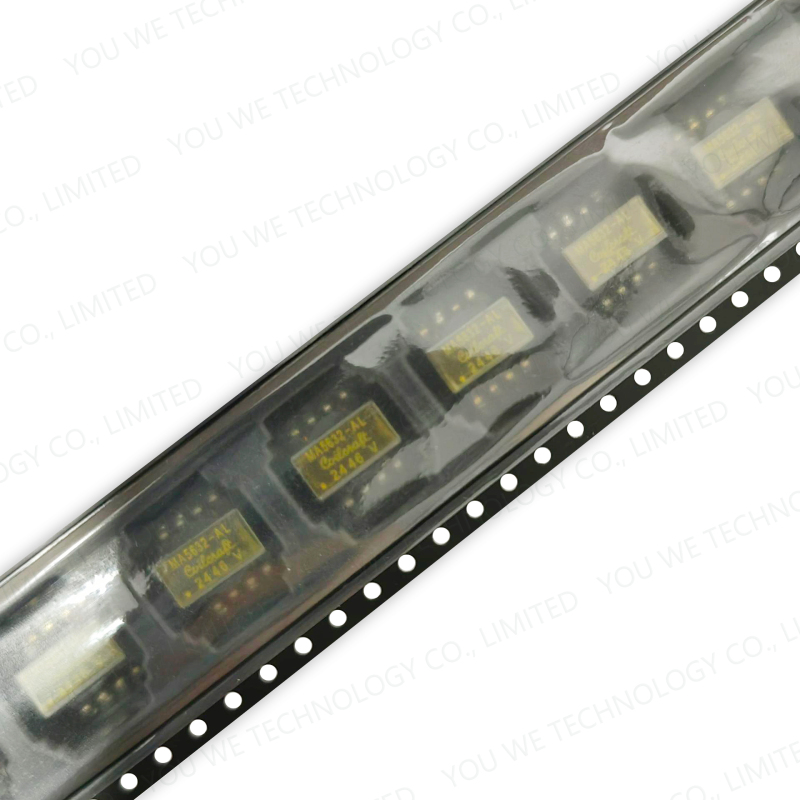

Packaging 600/13" reel Plastic tape: 24 mm wide, 0.37 mm thick,
16 mm pocket spacing, 6.1 mm pocket depth
PCB washing Tested to MIL -STD-202 Method 215 plus an additional
aqueous wash. See Doc787_ PCB _Washing.pdf.
