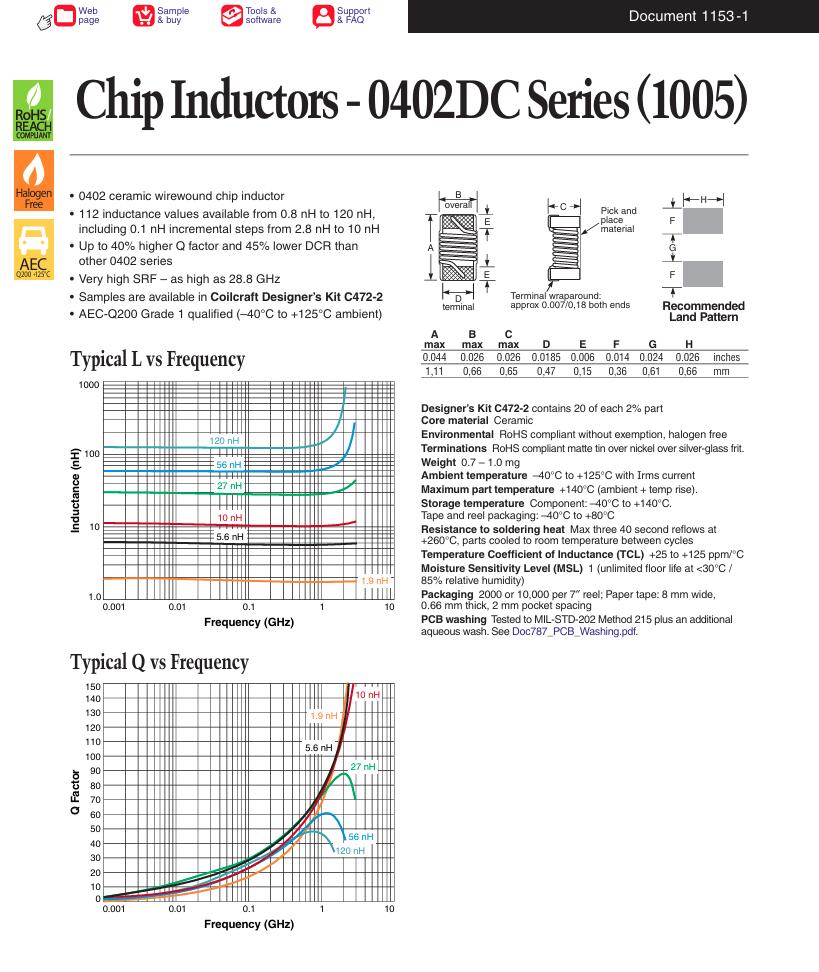

0402DC (1005)
Highest Q Ceramic Chip Inductors
Our 0402DC Series offers the industry’s highest Q factors in an 0402 size for super low loss in high-frequency circuits. They also feature wirewound construction for extremely high self resonance – up to 28.8 GHz – and offer DCR as low as 25 mΩ, significantly lower than other inductors this size.
- Exceptionally high Q – up to 160 at 2.4 GHz!
- 112 inductance values from 0.8 to 120 nH
- Available in 0.1 nH incremental steps between 2.8 nH and 10 nH
- For inductance values greater than 120 nH please consider the 0402HP series.
- Very high self-resonant frequencies – as high as 28.8 GHz
- Lower DCR than other 0402 chip inductors
- AEC-Q200 Grade 1 (−40°C to +125°C)
