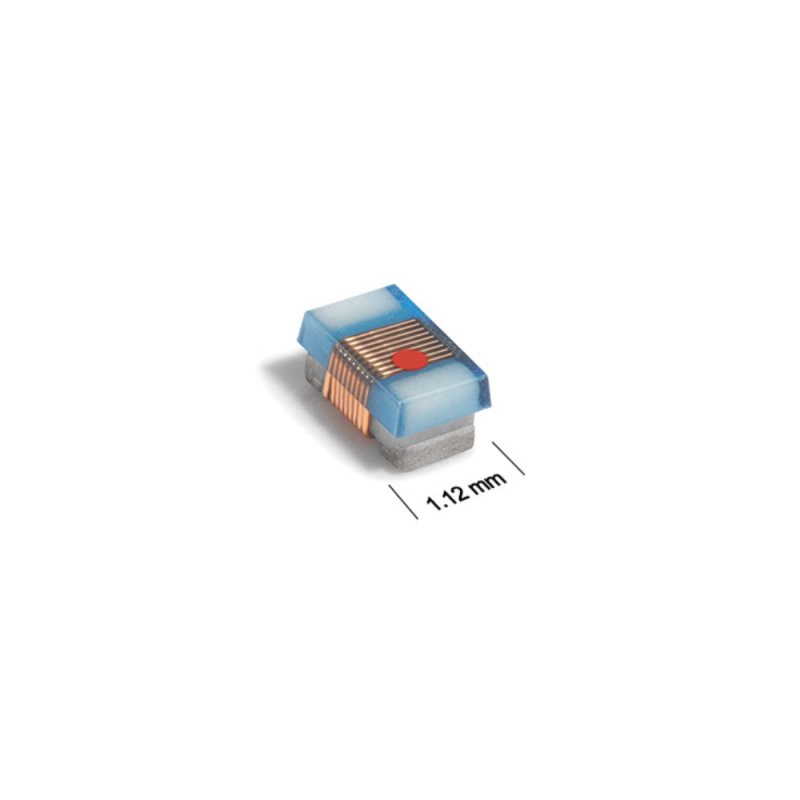

In Stock ! Coilcraft High Current Ceramic Chip Inductors 0603HC-10NXJLW

Name: In Stock ! Coilcraft High Current Ceramic Chip Inductors 0603HC-10NXJLW
Brand: YW SHOP
SKU: In Stock ; Ship In 48 Hours
Price: 0.8 USD
Availability: InStock

Brand : Coilcraft
Date Code : 24+
Packing : Reel
Package : SMD/SMT
Minimum Packing : 2000pcs

$0.80

Received successfully

Coupon Code

CONTINUE SHOPPING

Discount

GET $10.00 OFF ON ORDERS OVER $100.00

Add to Favorites

facebook
line
twitter
whatsapp
pinterest
tumblr
linkedin

1/1

Description

Features :
Our 0603HC Series wirewound ceramic chip inductors were created to provide high current ratings – up to 2.4 Amps. Their open-core construction means they can handle transient currents up to 50% higher. They also have higher Q factors than our 0603CS Series at low inductance values.
High current ratings – up to 2.4 Amps!
Can handle transient currents up to 50% higher
Inductance values from 1.6 to 47 nH
Higher Q factors than our 0603CS parts at low inductance values
Very high self-resonant frequencies – up to 12,500 MHz
Defense Supply Center CID A-A-59408
