In Stock ! Coilcraft Ceramic Chip Inductors 1008CS-151XGLC

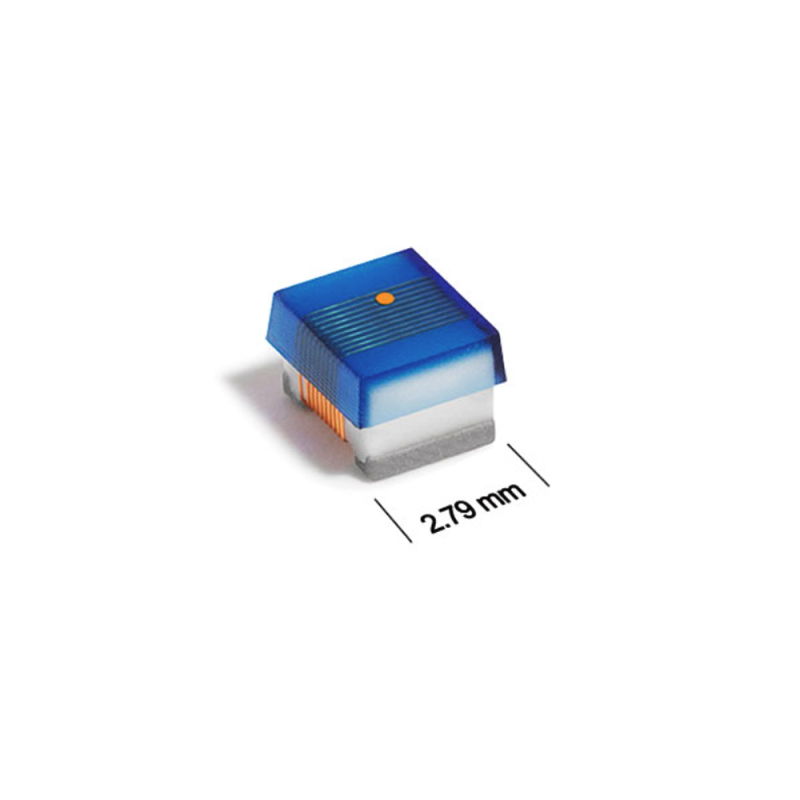

Name: In Stock ! Coilcraft Ceramic Chip Inductors 1008CS-151XGLC
Brand: YW SHOP
SKU: In Stock ; Ship In 48 Hours
Price: 1.1 USD
Availability: InStock

Brand : Coilcraft
Date Code : 21+
Packing : Reel
Package : SMD/SMT
Minimum Packing : 2000pcs

$1.10

Received successfully

Coupon Code

CONTINUE SHOPPING

Discount

GET $10.00 OFF ON ORDERS OVER $100.00

Add to Favorites

facebook
line
twitter
whatsapp
pinterest
tumblr
linkedin

1/1

Description

RF Inductors - SMD RF chip inductor

Features:

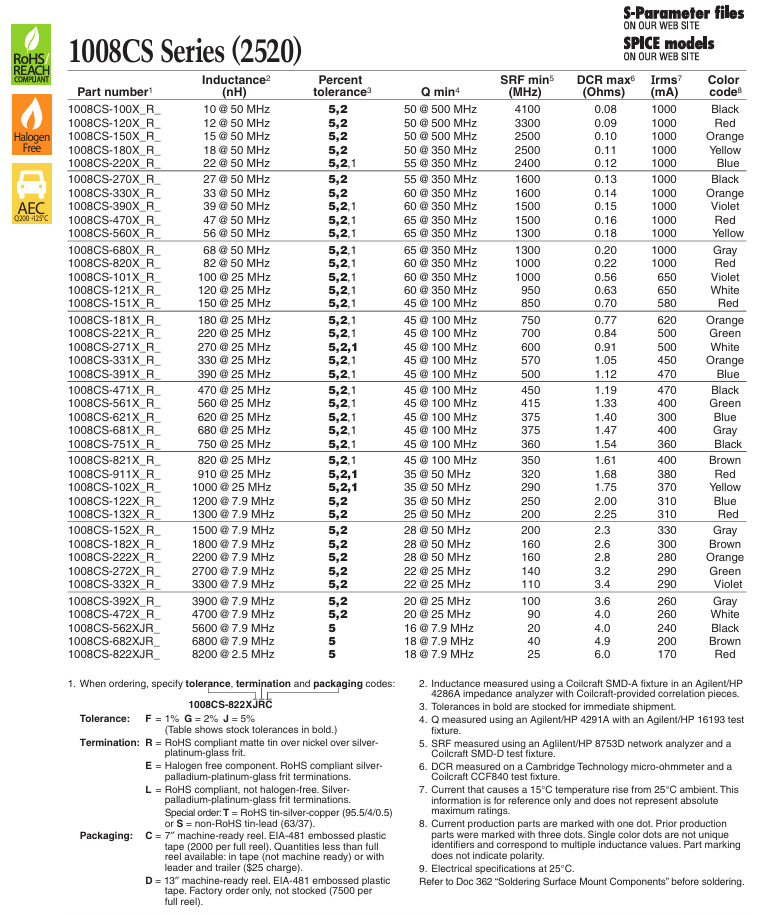

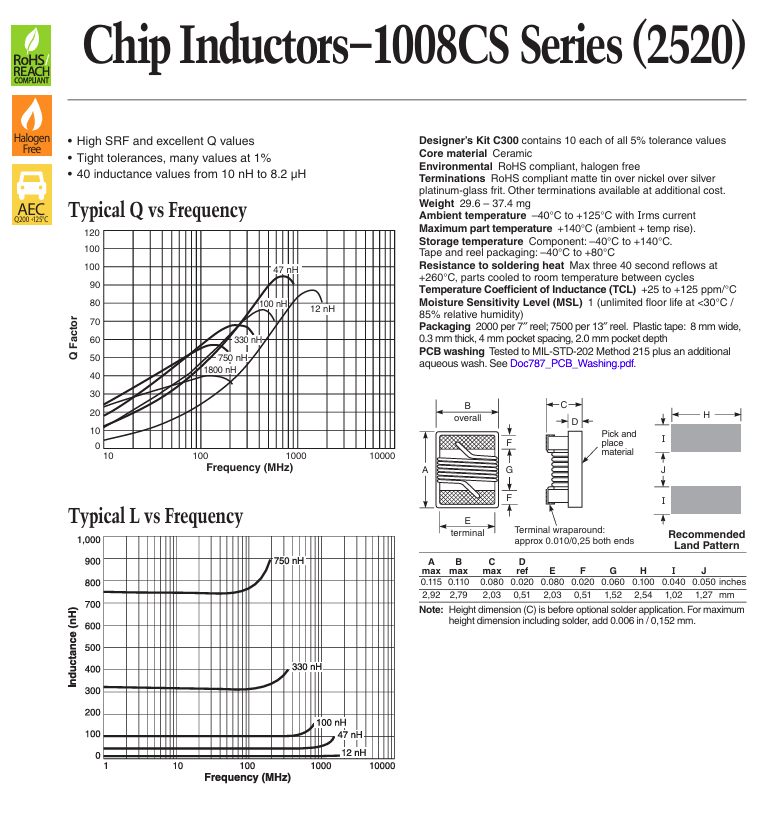

Our 1008CS is the original 1008-size wirewound chip inductor series and features high Q factors vs non-wirewound inductors of the same size. 1008CS Series is available in a wide range of values and high SRF – up to 4.1 GHz.

Inductance values from 10 nH to 8200 nH (tolerances as low as 1%)
Exceptionally high Q compared to non-wirewound inductors, especially at high frequencies
Ceramic construction for highest possible self resonance (as high as 4100 MHz)
Excellent current carrying capacity for their size
Defense Supply Center CID A-A-59697
AEC-Q200 Grade 1 (−40°C to +125°C)
