Power Inductors - SMD 3.3uH Shld 30% 5A 18mOhms
Features:
Coilcraft MSS7341 Series shielded surface-mount power inductors feature low DC resistance and excellent current handling in a wide range of inductance values, making them a cost-effective option for a variety of general-purpose applications.
Low-loss ferrite drum core for flat inductance vs current
Low DC resistance for greater efficiency
Excellent current handling
Magnetic shielding allows high-density mounting
AEC-Q200 qualified
|
Product Attribute |
Attribute Value |
|
Inductance: |
3.3 uH |
|
Tolerance: |
30 % |
|
Maximum DC Current: |
5 A |
|
Maximum DC Resistance: |
18 mOhms |
|
Saturation Current: |
3.72 A |
|
Minimum Operating Temperature: |
- 40℃ |
|
Maximum Operating Temperature: |
+ 85℃ |
|
Self Resonant Frequency: |
85 MHz |
|
Termination: |
Standard |
|

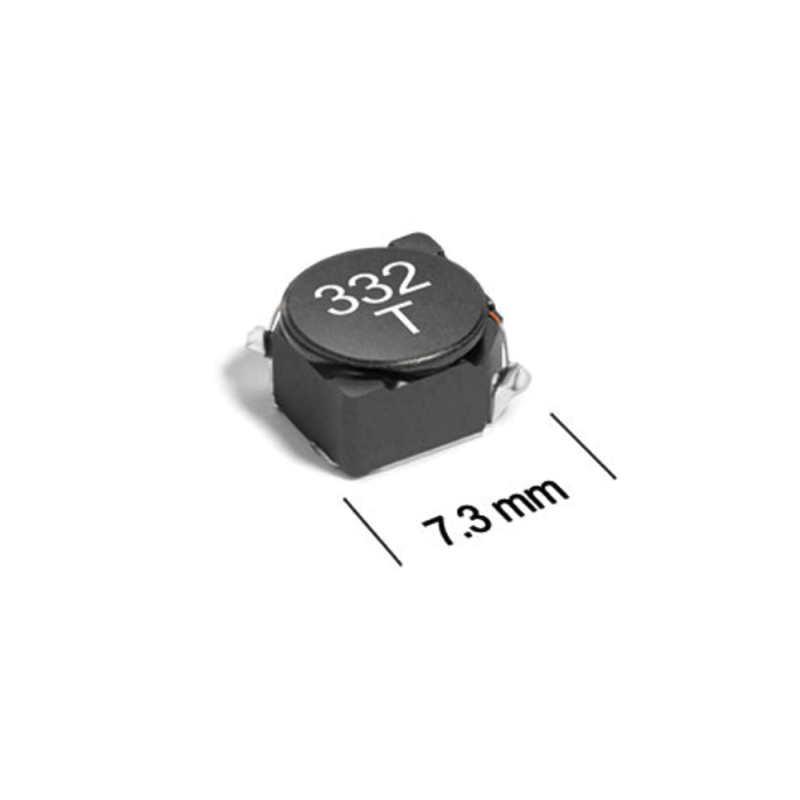

Length: |
7.3 mm |
|
Width: |
7.3 mm |
|
Height: |
4.1 mm |
|
Core Material: |
Ferrite |
|
Subcategory: |
Inductors, Chokes & Coils |
|
Termination Style: |
SMD/SMT |
|
Test Frequency: |
100 kHz |
|
Unit Weight: |
670 mg |
Similar Models：
MSS7341-332_LD MSS7341-502_LD MSS7341-622_LD MSS7341-742_LD MSS7341-872_LD MSS7341-103MLD MSS7341-123MLD MSS7341-153MLD MSS7341-183MLD MSS7341-223MLD MSS7341-273MLD MSS7341-333MLD MSS7341-393MLD MSS7341-473MLD MSS7341-563MLD MSS7341-683MLD MSS7341-823MLD MSS7341-104MLD MSS7341-154MLD MSS7341-224MLD MSS7341-474MLD
MSS7341-684KLD
