Features：
Ind.M12,0-10V+4-20mA,M12 Plug,Sch-LD
Inductive sensor M12 0-10 V+ 4-20 mA conn. M12 Sn 6 mm
Detection properties
|
Nominal sensing distance |
0…6mm |
|
Operanting distance |
0…6mm |
|
Standard target |
18x18mm FE360 |
|
Thermal drift of Sr |
±5% (0…+70°C); ±10% (-25°C…0°C) |
|
Repeat Accuracy |
0,3mm (UB 20...30Vcc/Vdc Ta=23°C ±5°C) |
|
Resolution |
≤1µm |
Application
|
Description |

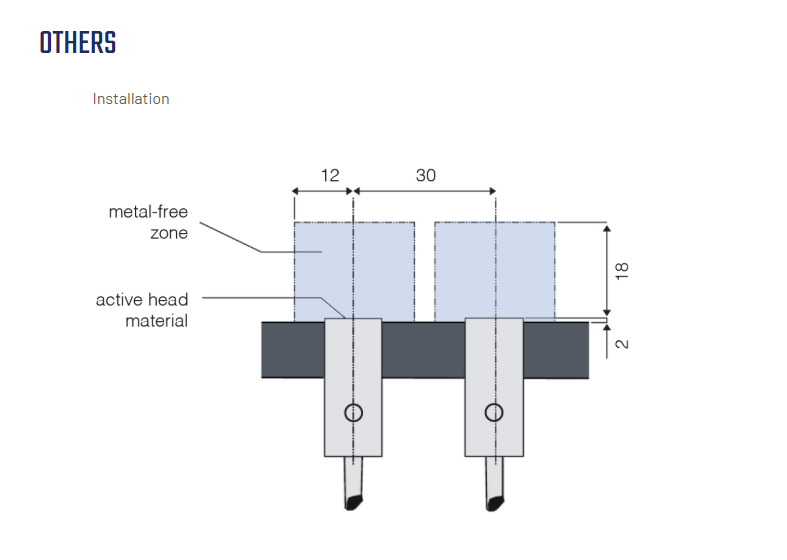

M12 standard no-flush mount |
|
Functions |
Proximity |
Outputs
|
Output type |
Analogue |
|
Output Function |
Analogue |
|
Voltage Analogue Output |
1 x 0...10V |
|
Current Analogue Output |
1 x 4...20mA |
Electrical data
|
Operating Voltage |
19.2...28.8 Vdc |
|
No-Load supply current |
≤ 12mA |
|
Load current |
≤ 10mA |
|
Max ripple content |
≤ 20% |
|
Time delay before availability |
≤ 50ms |
|
Short-circuit protection |
Yes |
|
Reverse Polarity Protection |
Yes |
|
Max output current |
4mA ± 0,≤ 8mA (23°C) 20mA ± 0,≤ 8mA (23°C) |
|
Impulsive Overvoltage Protection |
Yes |
|
Maximum capacitance load |
500Ω (UB = 15V) / 1kΩ (UB = 30V) |
|
Output voltage |
0V - 0 + 0,4V (23°C) +5,2V ± 0,4V (23°C) +10V ± 0,4V (23°C) |
Mechanical data
|
Mounting |
Partially Shielded |
|

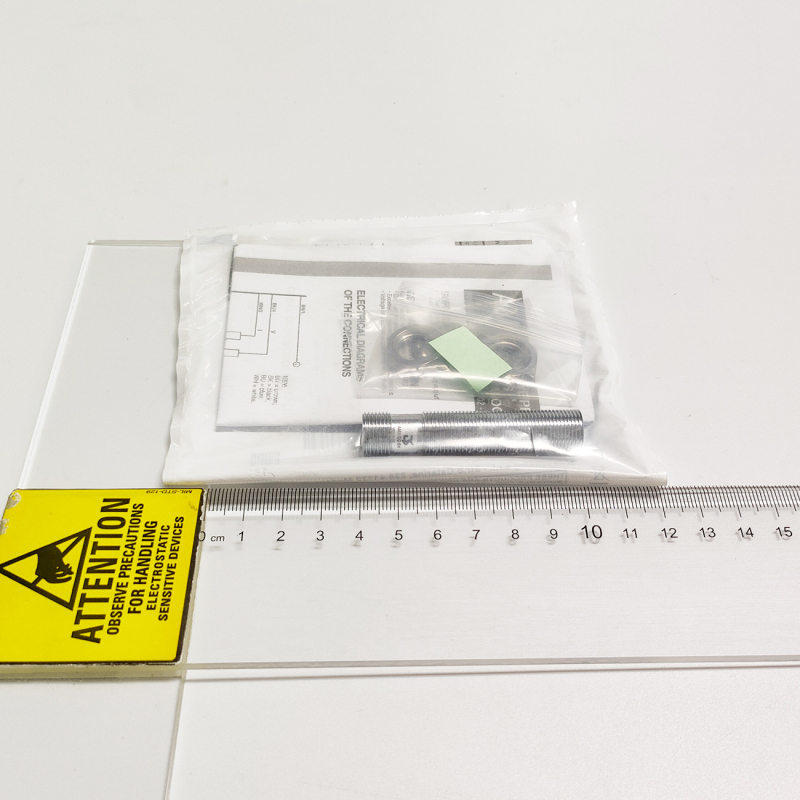

Dimensions |
M12 x 1 / L = 60mm |
|
Weight |
33g |
|
Housing Material |
Nickel-plated brass |
|

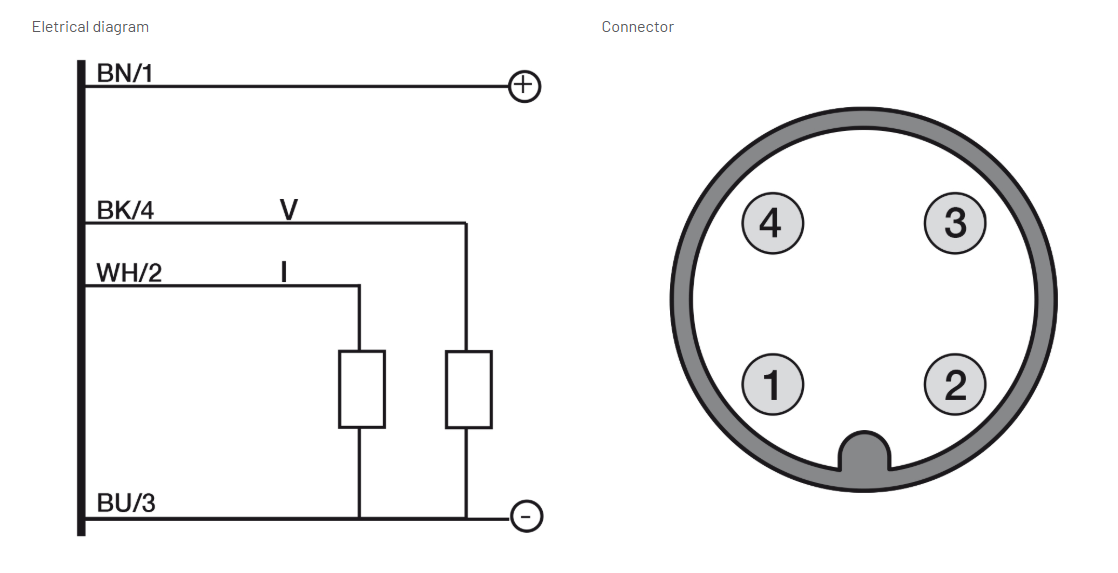

Connections |
M12 Plug |
|
Active Head Material |
PBT |
|
Tightening torque |
10Nm |
|
Operating temperature |
-25°C…+70°C |
|
Material |
Nickel-plated brass |
|
Diameter/Dimension |
M12 |
Test/Approvals
|
Approvals |
CE |
|
EMC compatibility |
IEC 60947-5-2 |
|
Shocks and vibrations |
Vibration IEC 60068-2-6 / Shock IEC 60068-2-27 |
|
Degree of protection |
IP67 |
Accessories
|
Supplied Accessories |
2 nuts M12x1 |
Generical Data
|
Dimensions |
M12 x 1 / L = 60mm |
|
Operating Temperature |
-25°C…+70°C |
|
Mechanical Protection |
IP67 |
