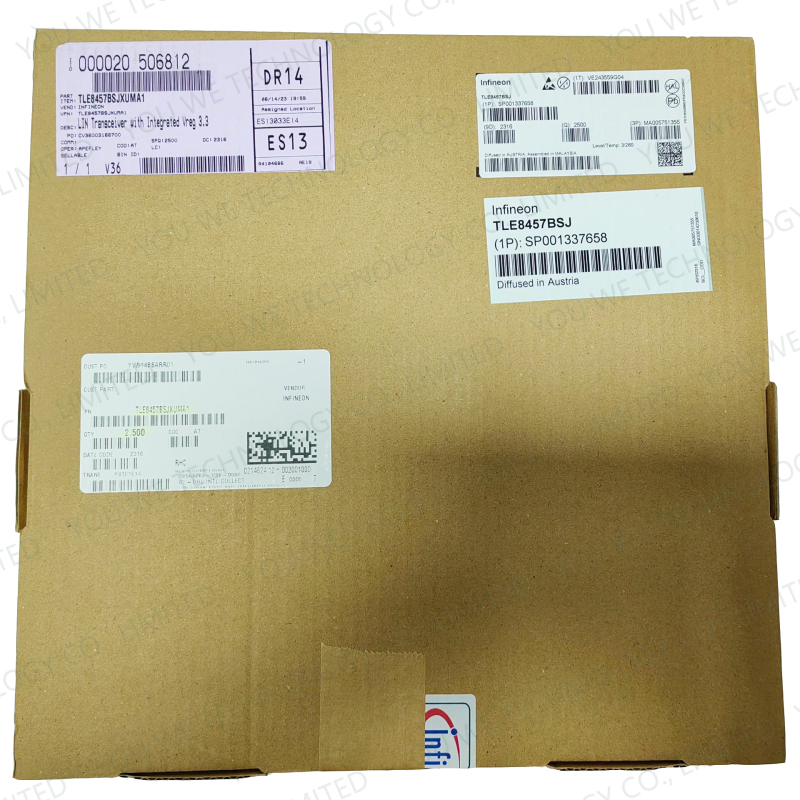

TLE8457BSJXUMA1
LIN Transceiver with integrated voltage regulator

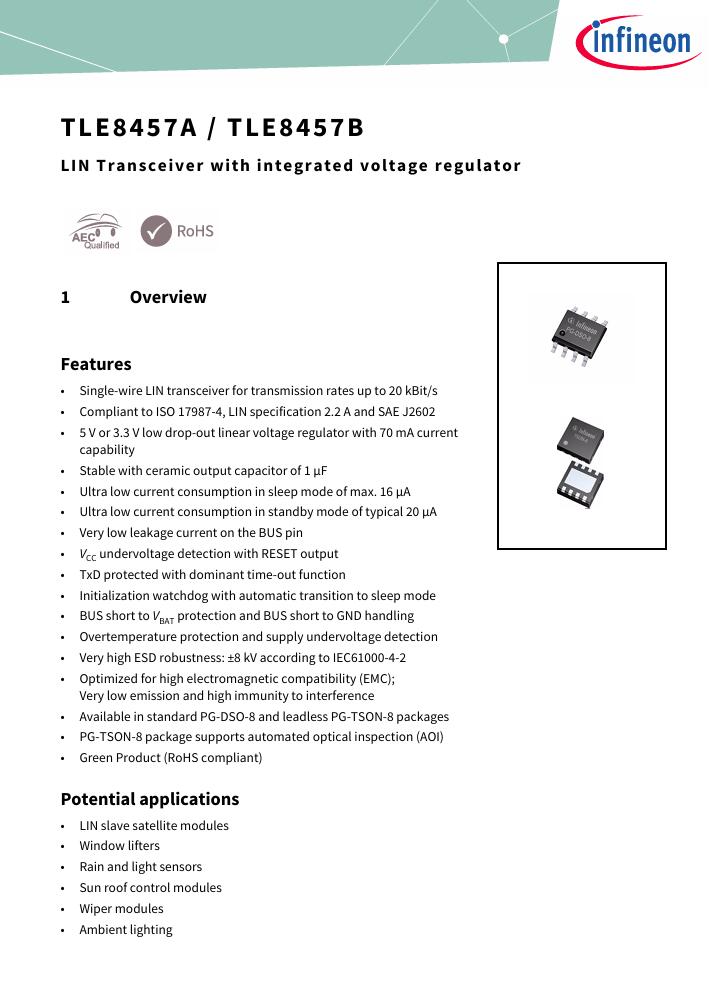

Features
- Single-wire LIN transceiver for transmission rates up to 20 kBit/s
- Compliant to ISO 17987-4, LIN specification 2.2 A and SAE J2602
- 5V or 3.3V low drop-out linear voltage regulator with 70 mA current capability
- Stable with ceramic output capacitor of 1 µF
- Ultra low current consumption in sleep mode of max. 16 µA
- Ultra low current consumption in standby mode of typical 20 µA
- Very low leakage current on the BUS pin
- VCC undervoltage detection with RESET output
- TxD protected with dominant time-out function
- Initialization watchdog with automatic transition to sleep mode
- BUS short to VBAT protection and BUS short to GND handling
- Overtemperature protection and supply undervoltage detection
- Very high ESD robustness: ±8 kV according to IEC61000-4-2
- Optimized for high electromagnetic compatibility (EMC); Very low emission and high immunity to interference
- Available in standard PG-DSO-8 and leadless PG-TSON-8 packages
- PG-TSON-8 package supports automated optical inspection (AOI)
- Green Product (RoHS compliant)
Potential applications
- LIN slave satellite modules
- Window l ift ers
- Rain and light sensors
- Sun roof control modules
- Wiper m odul es
- Ambient lighting
