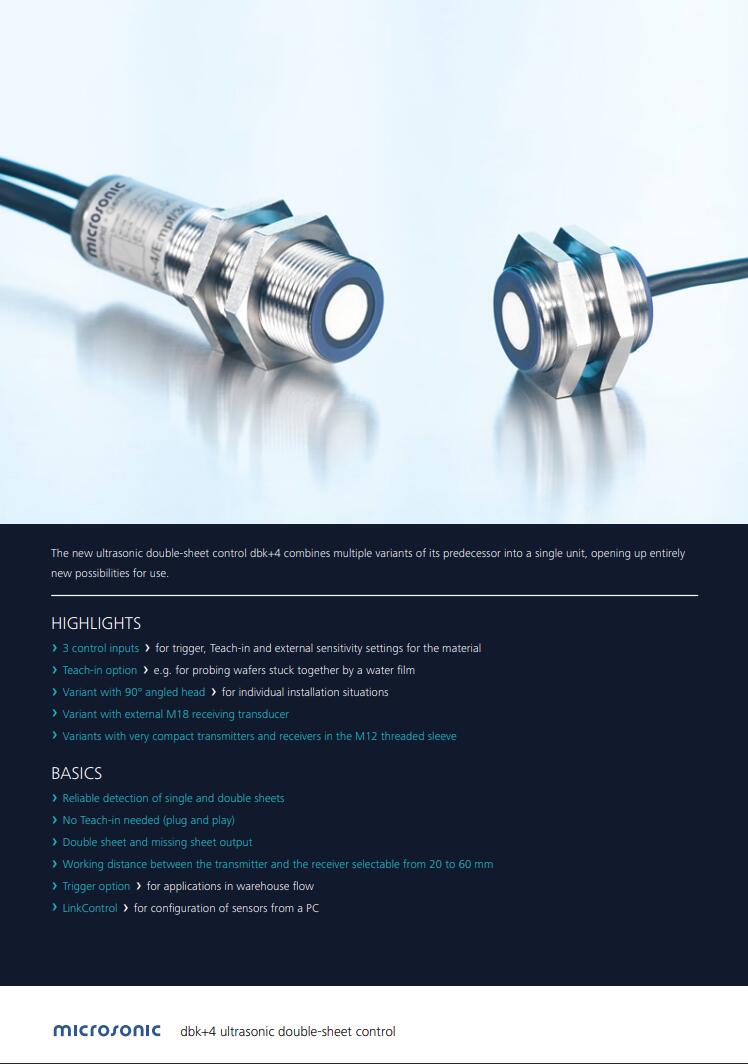

Features:
• Three control inputs: trigger, material teach-in, and external sensitivity setting
• Teach-in mode, e.g., for detecting wafers bonded by a water film
• 90° right-angle versions for versatile mounting options
• Models with external M18 receiver sensor
• Ultra-compact transmitter & receiver integrated in M12 threaded barrel versions
• Reliable single- and double-sheet detection
• Plug-and-play operation—no teach-in required

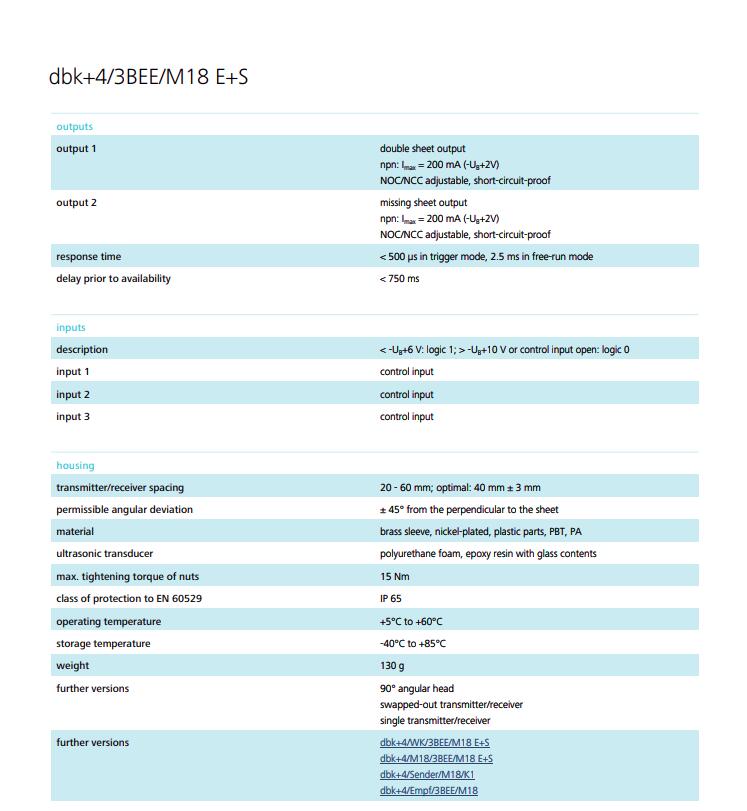

• Separate outputs for double-sheet and missing-sheet conditions

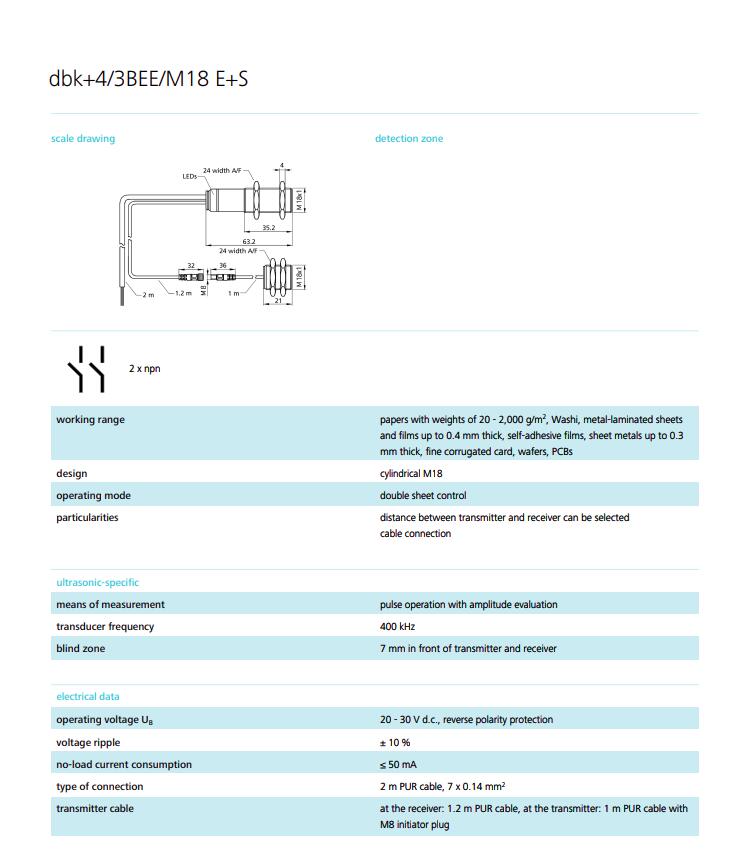

• Adjustable operating distance between transmitter and receiver: 20 mm … 60 mm
• Trigger option for warehouse-flow applications
• LinkControl for PC-based sensor configuration
Similar Models:dbk+4/Sender/M18/K1 dbk+4/Sender/ M12/K1 dbk+4/Sender/KU/K2 dbk+4/Sender/KU/K1 dbk+4/Empf/3CDD/M18 dbk+4/3BEE/M18 E+S dbk+4/Empf/3BEE/M18 dbk+4/3CDD/M18 E+S dbk+4/Empf/3CDD/M18/ K7K2 dbk+4/WK/3CDD/M18 E+S dbk+4/Empf/WK/3CDD/ M18 dbk+4/WK/3BEE/M18 E+S dbk+4/Empf/WK/3BEE/ M18 dbk+4/M18/3BEE/M18 E+S dbk+4/Empf/M18/3BEE/ M18 dbk+4/M12/3BEE/M18 E+S dbk+4/Empf/M12/3BEE/ M18 dbk+4/Empf/M18/3CDD/ M18 dbk+4/Empf/M12/3CDD/ M18 dbk+4/M18/3CDD/M18 E+S dbk+4/M12/3CDD/M18 E+S dbk+4/Empf/KU/3CDD/ M18
