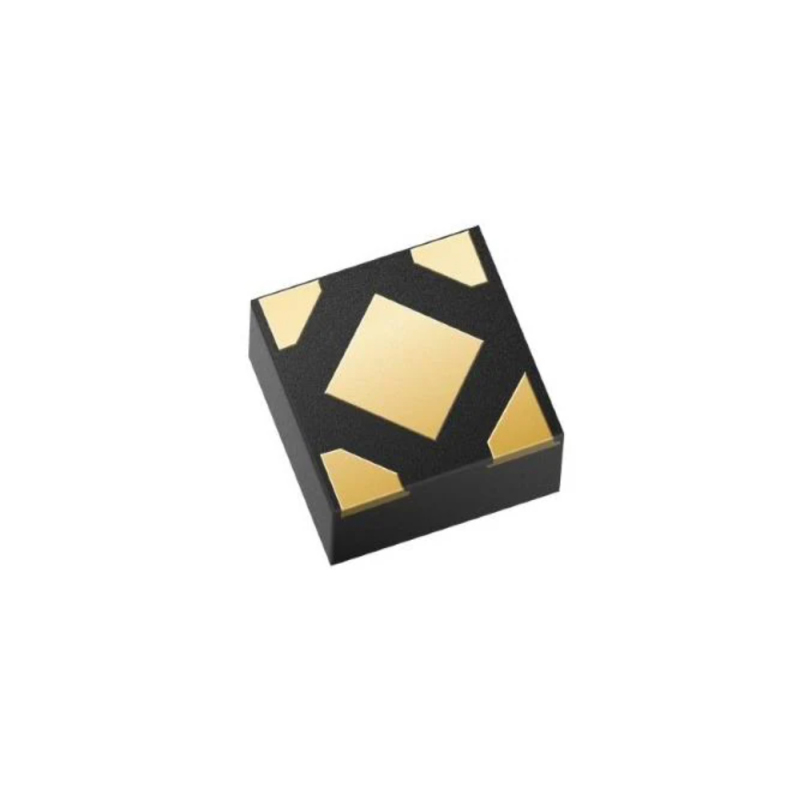

In Stock ! Onsemi LDO Voltage Regulators NCP110AMX060TBG

Name: In Stock ! Onsemi LDO Voltage Regulators NCP110AMX060TBG
Brand: YW SHOP
SKU: In Stock ; Ship In 48 Hours
Price: 0.3 USD
Availability: InStock

Brand：Onsemi
Date Code：24+
Packing：Reel
Package：XDFN-4
Minimum Packing：5000pcs

$0.30

Received successfully

Coupon Code

CONTINUE SHOPPING

Discount

GET $10.00 OFF ON ORDERS OVER $100.00

Add to Favorites

facebook
line
twitter
whatsapp
pinterest
tumblr
linkedin

1/1

Description

LDO Voltage Regulators 200 MA LOW VIN LOW NOIS

Features：

Product Attribute	Attribute Value
Output Voltage:	600 mV
Output Current:	200 mA
Number of Outputs:	1 Output
Quiescent Current:	20 uA
Input Voltage - Min:	1.1 V
Input Voltage - Max:	5.5 V
PSRR / Ripple Rejection - Typ:	95 dB
Minimum Operating Temperature:	- 40°C
Maximum Operating Temperature:	+ 125°C
Dropout Voltage:	70 mV
Line Regulation:	0.02 %/V
Load Regulation:	0.001 %/mA
Voltage Regulation Accuracy:	2 %
Unit Weight:	0.000051 oz
