Product Attribute |
Attribute Value |
|
Low Level Output Current: |
32 mA |
|
Quiescent Current: |
1 uA |
|
Supply Voltage - Min: |
1.65 V |
|
Supply Voltage - Max: |
5.5 V |
|
Operating Supply Current: |
10 uA |
|
Minimum Operating Temperature: |
- 40 °C |
|
Maximum Operating Temperature: |
+ 85 °C |
|
Height: |
1 mm |
|
Operating Supply Voltage: |
1.65 V to 5.5 V |
|
Output Type: |
Open Drain |
|
Pd - Power Dissipation: |
180 mW |
|
Width: |
1.25 mm |
|
Unit Weight: |
0.000988 oz |

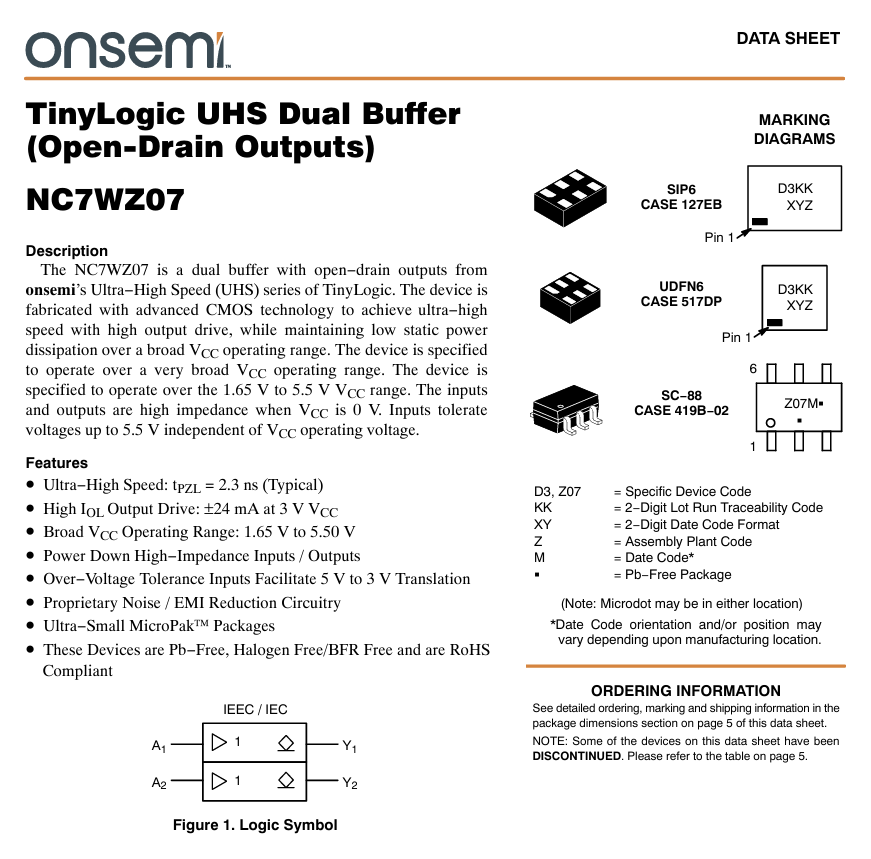

The NC7WZ07 is a dual buffer with open drain outputs from onsemi's Ultra High Speed Series of TinyLogic®. The device is fabricated with advanced CMOS technology to achieve ultra-high speed with high output drive while maintaining low static power dissipation over a broad VCC operating range. The device is specified to operate over the 1.65V to 5.5V VCC range. The inputs and outputs are high impedance when VCC is 0V. Inputs tolerate voltages up to 5.5V independent of VCC operating voltage.
