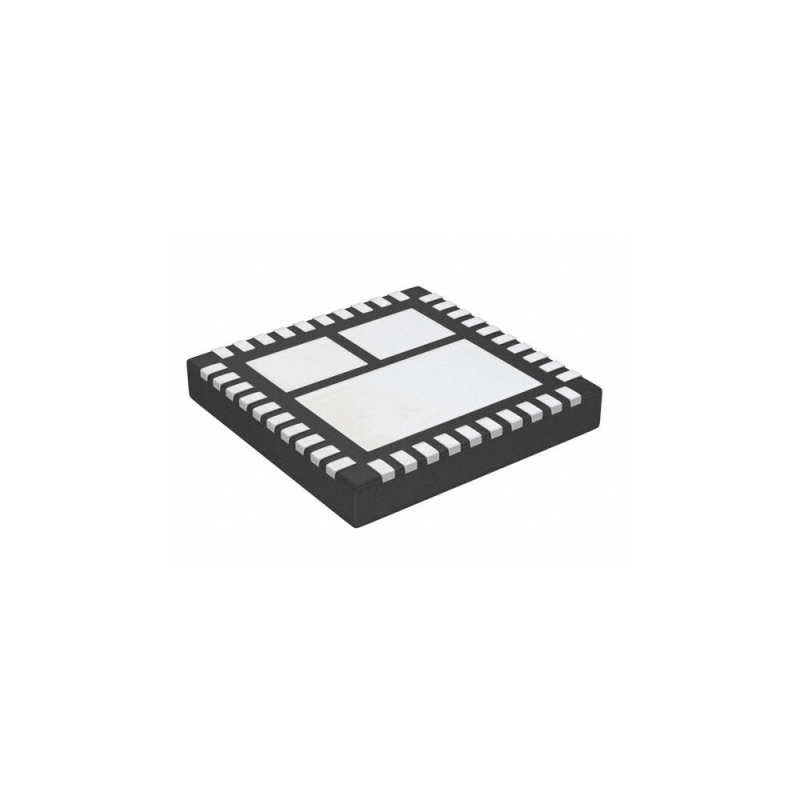

In Stock ! Onsemi Switching Voltage Regulators NCP3232NMNTXG

Name: In Stock ! Onsemi Switching Voltage Regulators NCP3232NMNTXG
Brand: YW SHOP
SKU: In Stock ; Ship In 48 Hours
Price: 1.4 USD
Availability: InStock

Brand : Onsemi
Date Code : 2249
Packing : Reel
Package : QFN-EP-40
Minimum Packing : 2500

$1.40

Received successfully

Coupon Code

CONTINUE SHOPPING

Discount

GET $10.00 OFF ON ORDERS OVER $100.00

Add to Favorites

facebook
line
twitter
whatsapp
pinterest
tumblr
linkedin

1/1

Description

Features:

Switching Voltage Regulators HIGH CURRENT SYNC BUCK CO

Product Attribute	Attribute Value
Output Voltage:	1.5 V
Output Current:	15 A
Number of Outputs:	1 Output
Input Voltage - Min:	4.5 V
Input Voltage - Max:	21 V
Switching Frequency:	500 kHz
Minimum Operating Temperature:	- 40 ℃
Maximum Operating Temperature:	+ 85 ℃
Height:	1 mm
Input Voltage:	4.5 V to 21 V
Length:	6 mm
Operating Supply Current:	4.7 mA
Supply Voltage - Min:	4.5 V
Type:	Synchronous Buck Converter
Width:	6 mm
Unit Weight:	0.003478 oz
