Product Attribute |
Attribute Value |
|
Output Current: |
10.5 A |
|
On Resistance - Max: |
22.5 mOhms |
|
On Time - Max: |
1.33 ms |
|
Off Time - Max: |
21 ns |
|
Operating Supply Voltage: |
3 V to 5.5 V |
|
Minimum Operating Temperature: |
- 40 ℃ |
|
Maximum Operating Temperature: |
+ 85 ℃ |
|
Pd - Power Dissipation: |
2.5 W |
|
Supply Voltage - Max: |
5.5 V |
|
Supply Voltage - Min: |
3 V |
|
Unit Weight: |
0.001319 oz |

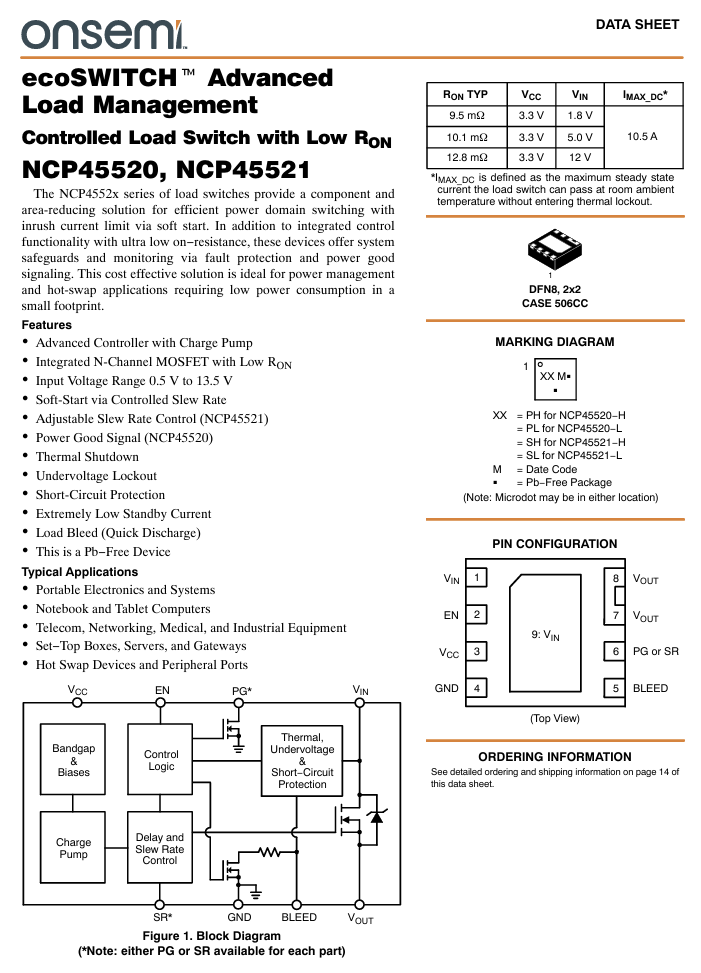

The ecoSWITCH™ NCP45520, NCP45521 series of load management devices provide a component and area-reducing solution for efficient power domain switching with inrush current limit via soft start. In addition to integrated control functionality with ultra low on-resistance these devices offer additional system safeguards and monitoring via fault protection and power good signaling. This cost effective solution is ideal for power management and hot-swap applications requiring low power consumption in a small footprint.
