Product Attribute |
Attribute Value |
|
Output Voltage: |
5 V |
|
Output Current: |
200 mA |
|
Number of Outputs: |
1 Output |
|
Polarity: |
Positive |
|
Quiescent Current: |
11.3 mA |
|
Input Voltage - Min: |
5.5 V |
|
Input Voltage - Max: |
40 V |
|
Minimum Operating Temperature: |
- 40 ℃ |
|
Maximum Operating Temperature: |
+ 150 ℃ |
|
Dropout Voltage: |
300 mV |
|
Unit Weight: |
0.002174 oz |

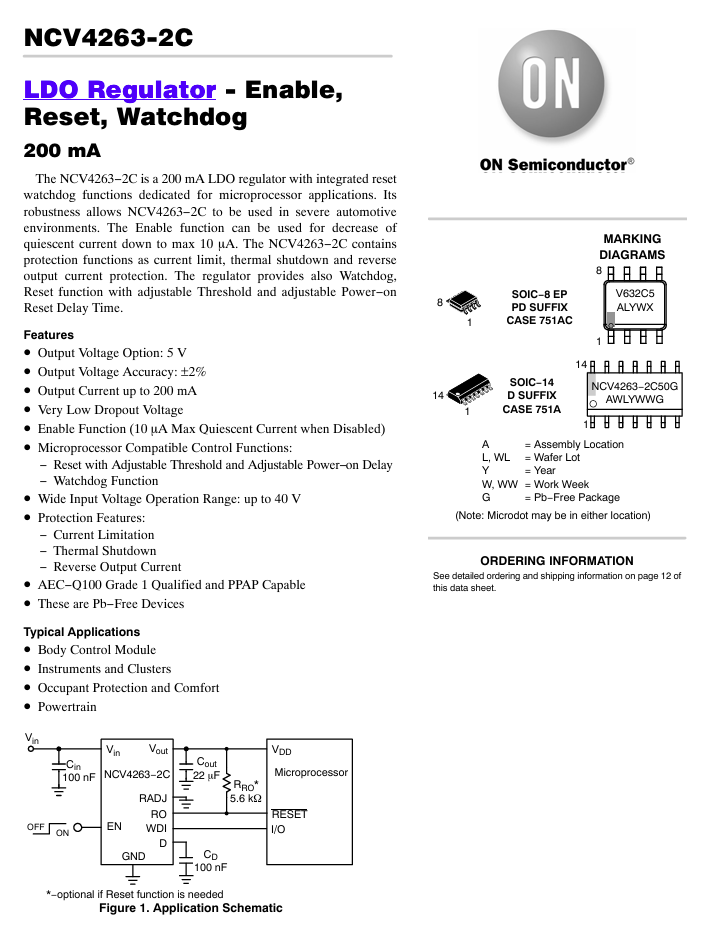

The NCV4263−2C is a 200 mA LDO regulator with integrated reset watchdog functions dedicated for microprocessor applications. Its robustness allows NCV4263−2C to be used in severe automotive environments. The Enable function can be used for decrease of quiescent current down to max 10 A. The NCV4263−2C contains protection functions as current limit, thermal shutdown and reverse output current protection. The regulator provides also Watchdog, Reset function with adjustable Threshold and adjustable Power−on Reset Delay Time.
