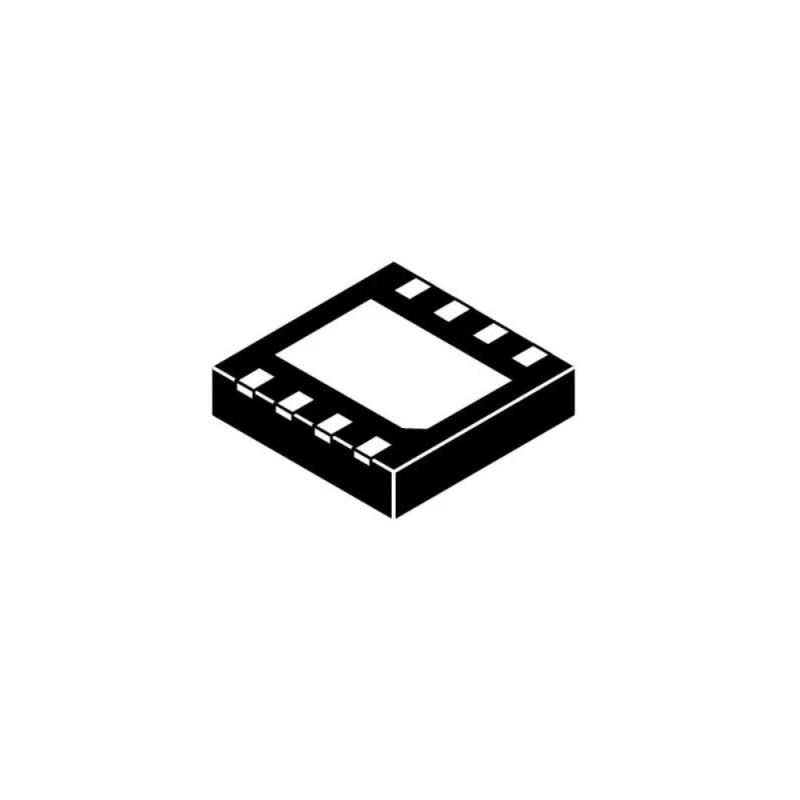

In Stock ! Onsemi LDO Voltage Regulators NCV7428MW3R2G

Name: In Stock ! Onsemi LDO Voltage Regulators NCV7428MW3R2G
Brand: YW SHOP
SKU: In Stock ; Ship In 48 Hours
Price: 0.5 USD
Availability: InStock

Brand : Onsemi
Date Code : 2201
Packing : Reel
Package : DFN-8
Minimum Packing : 3000

$0.50

Received successfully

Coupon Code

CONTINUE SHOPPING

Discount

GET $10.00 OFF ON ORDERS OVER $100.00

Add to Favorites

1/1

Description

Features:

LDO Voltage Regulators System Basis Chip with LIN and LDO Regulator 3.3V regulator, Normal slope LIN

Product Attribute	Attribute Value
Output Voltage:	3.3 V
Output Current:	70 mA
Number of Outputs:	1 Output
Polarity:	Positive
Input Voltage - Min:	4 V
Input Voltage - Max:	28 V
Output Type:	Fixed
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 125 C
Dropout Voltage:	550 mV
Unit Weight:	0.000946 oz

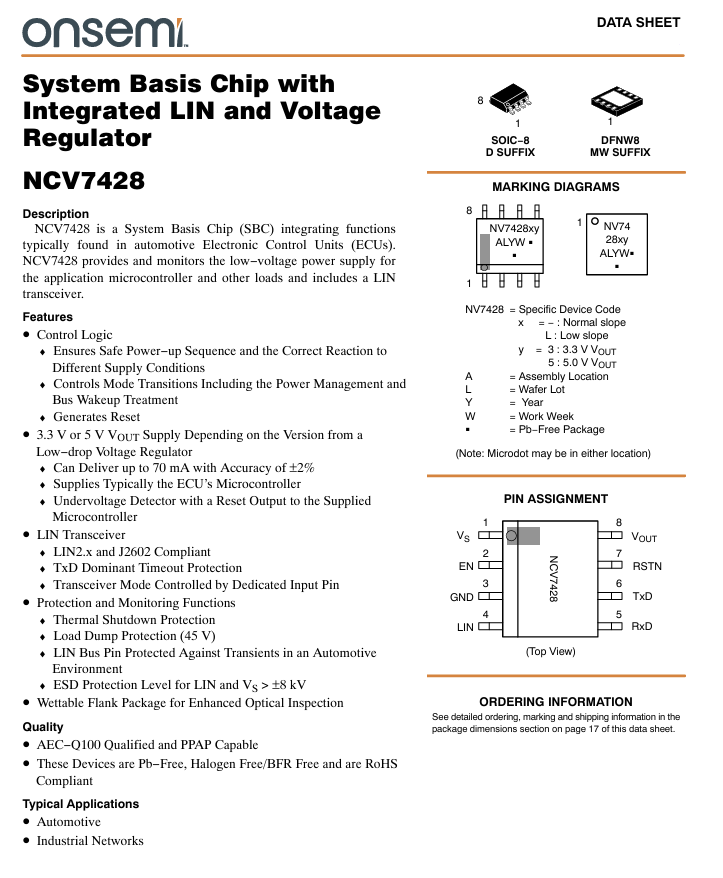

NCV7428 is a System Basis Chip (SBC) integrating functions typically found in automotive Electronic Control Units (ECUs).NCV7428 provides and monitors the low−voltage power supply for the application microcontroller and other loads and includes a LIN transceiver.
