Product Attribute |
Attribute Value |
|
Output Current: |
150 mA |
|
Supply Voltage - Min: |
12 V |
|
Supply Voltage - Max: |
28 V |
|
Configuration: |
Inverting |
|
Rise Time: |
708 ns |
|
Fall Time: |
2.086 us |
|
Minimum Operating Temperature: |
- 40 C |
|
Maximum Operating Temperature: |
+ 125 C |
|
Pd - Power Dissipation: |
225 mW |
|
Unit Weight: |
0.000282 oz |

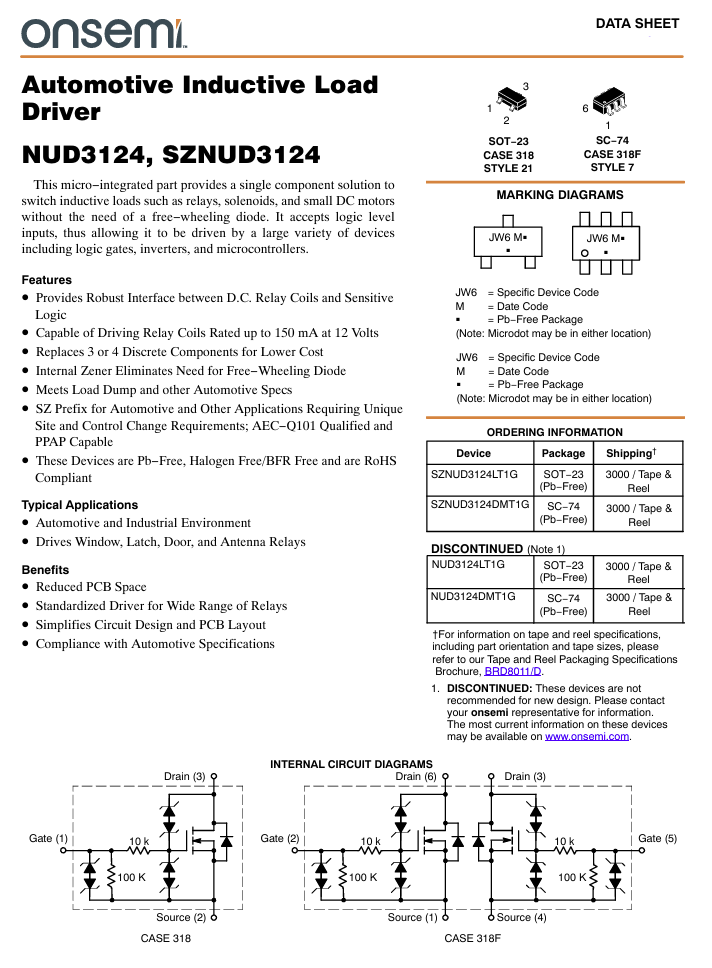

This micro-integrated device provides a one component solution to switch inductive loads such as relays, solenoids, and small dc motors without the need for a free-wheeling diode. It accepts logic level inputs, thus allowing it to be driven by a large variety of devices including logic gates, inverters, and microcontrollers.
