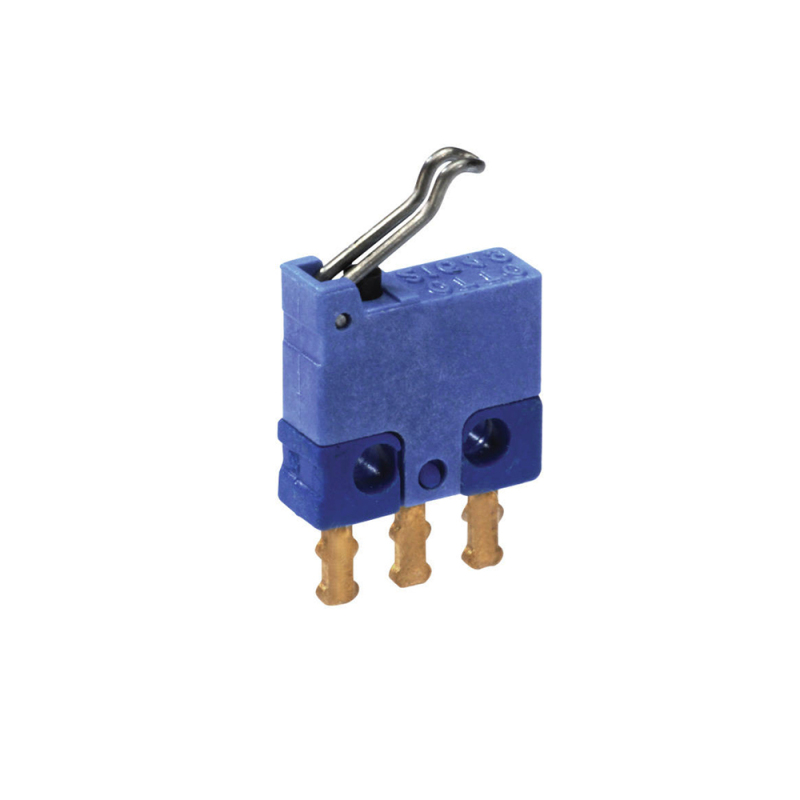

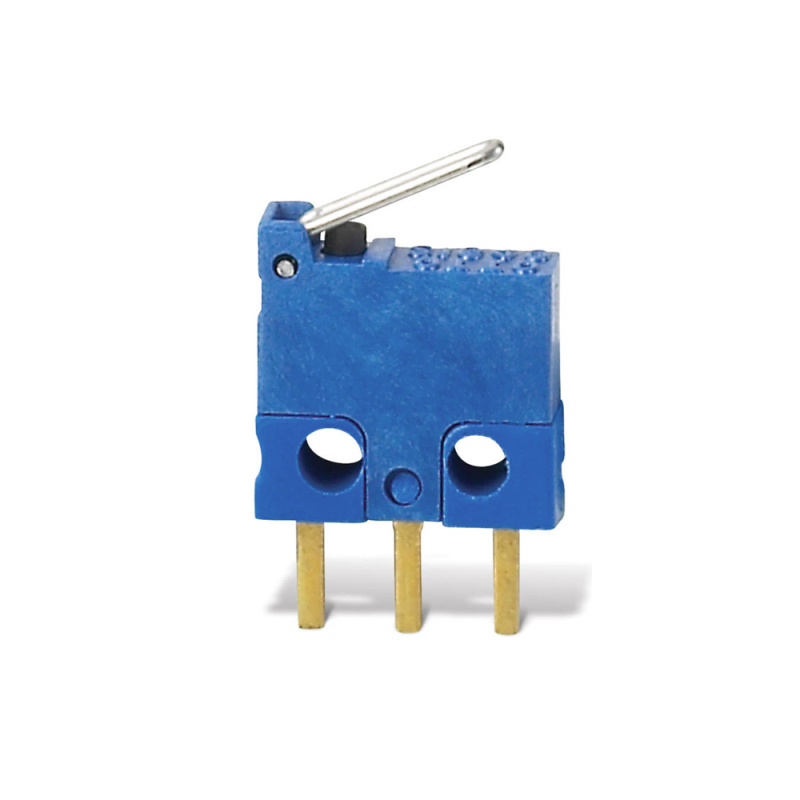

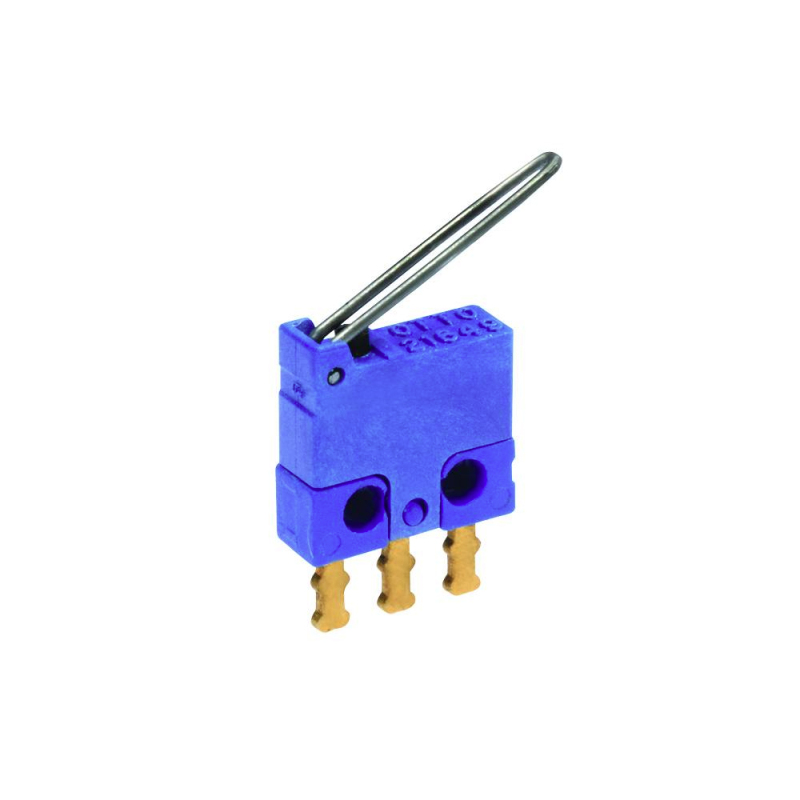

B1-5 series basic switches feature integral actuating levers. The lever is built-in so that the switch and actuator are one assembly.
Ultra-compact: only 0.300” w x 0.255” h x 0.100” thick
1 million cycle life, B1-5 Series
Logic level switching capability
Designed to meet requirements of MIL-PRF-8805/94
Available in Commercial & Military grades
Choice of solder or PC pin terminals
Precision operating points
Momentary action
RoHS compliant

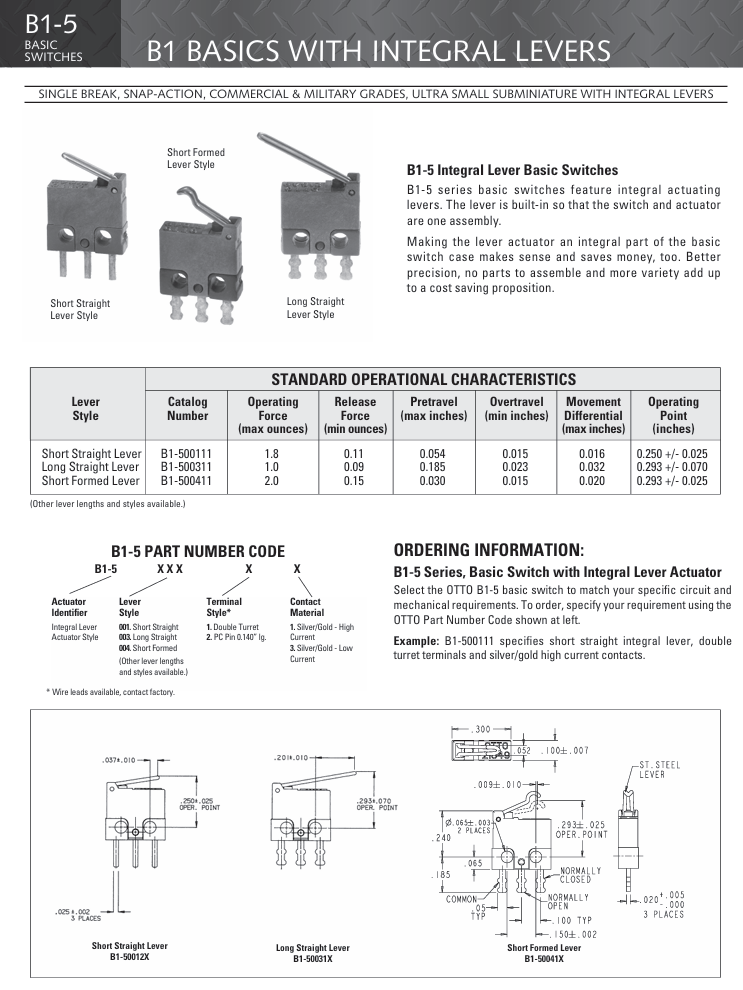

B1-5 series basic switches feature integral actuating levers. The lever is built-in so that the switch and actuator are one assembly. Making the lever actuator an integral part of the basic switch case makes sense and saves money, too. Better precision, no parts to assemble and more variety add up to a cost saving proposition.
