Automotive 5.7kVrms 10A single-channel isolated gate driver with overcurrent protection for IGBT/SiC
Features：
Quality information
|
RatingAutomotive |
|
RoHSYes |
|
REACHYes |
|
Lead finish / Ball materialNiPdAu |
|
MSL rating / Peak reflowLevel-3-260C-168 HR |

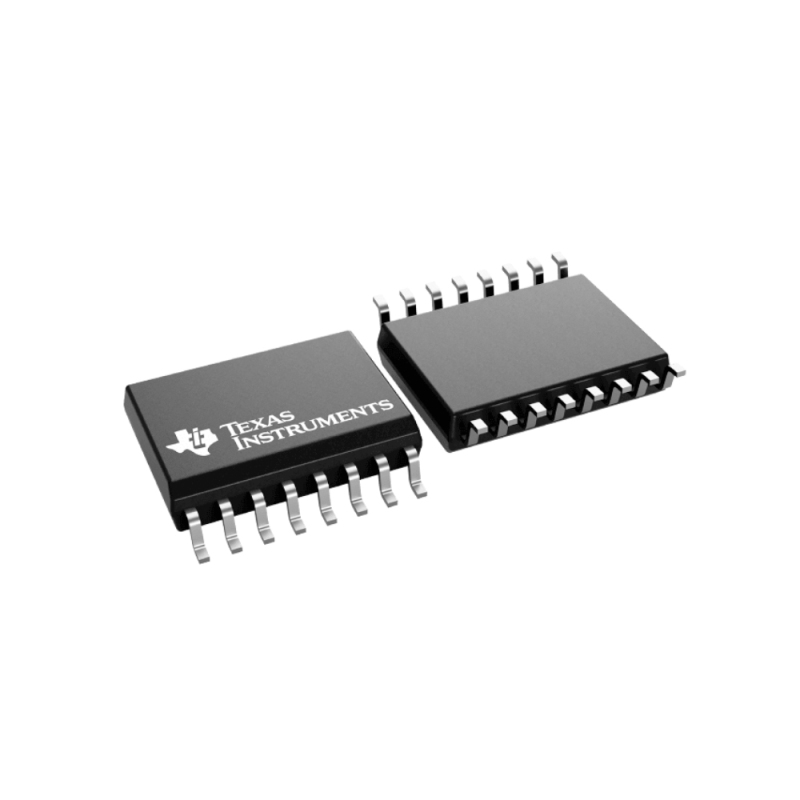

Packaging information
|
Package | PinsSOIC (DW) | 16 |
|
Operating temperature range (°C)-40 to 125 |
|
Package qty | Carrier2,000 | LARGE T&R |

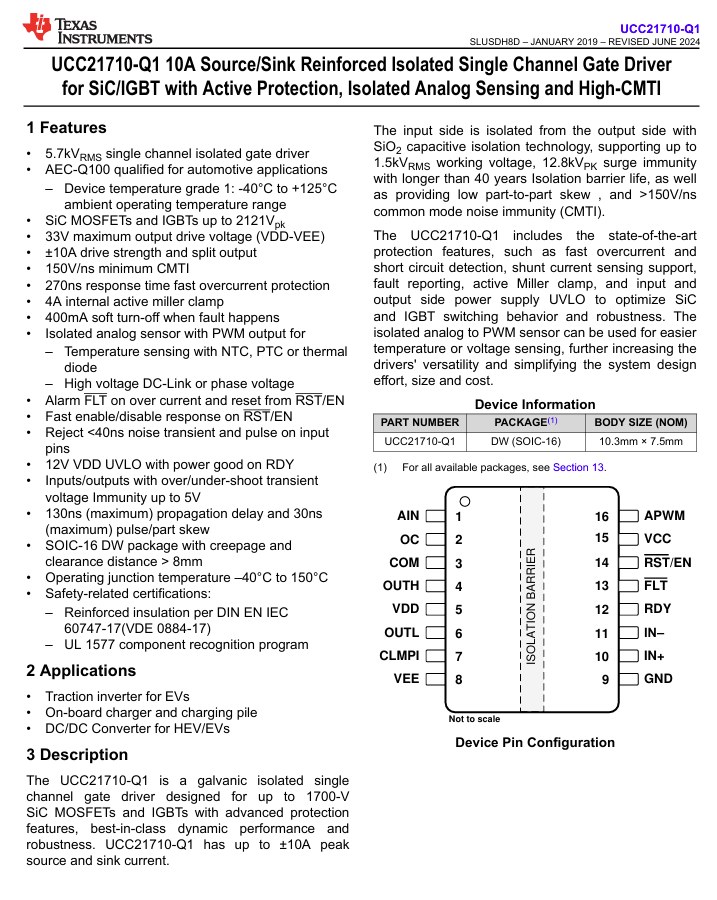

Features for the UCC21710-Q1
5.7kVRMS single channel isolated gate driver
AEC-Q100 qualified for automotive applications
Device temperature grade 1: -40°C to +125°C ambient operating temperature range
SiC MOSFETs and IGBTs up to 2121Vpk
33V maximum output drive voltage (VDD-VEE)
±10A drive strength and split output
150V/ns minimum CMTI
270ns response time fast overcurrent protection
4A internal active miller clamp
400mA soft turn-off when fault happens
Isolated analog sensor with PWM output for
Temperature sensing with NTC, PTC or thermal diode
High voltage DC-Link or phase voltage
Alarm FLT on over current and reset from RST/EN
Fast enable/disable response on RST/EN
Reject <40ns noise transient and pulse on input pins
12V VDD UVLO with power good on RDY
Inputs/outputs with over/under-shoot transient voltage Immunity up to 5V
130ns (maximum) propagation delay and 30ns (maximum) pulse/part skew
SOIC-16 DW package with creepage and clearance distance > 8mm
Operating junction temperature –40°C to 150°C
Safety-related certifications:
Reinforced insulation per DIN EN IEC 60747-17(VDE 0884-17)
UL 1577 component recognition program
Description for the UCC21710-Q1
The UCC21710-Q1 is a galvanic isolated single channel gate driver designed for up to 1700-V SiC MOSFETs and IGBTs with advanced protection features, best-in-class dynamic performance and robustness. UCC21710-Q1 has up to ±10A peak source and sink current.
The input side is isolated from the output side with SiO2 capacitive isolation technology, supporting up to 1.5kVRMS working voltage, 12.8kVPK surge immunity with longer than 40 years Isolation barrier life, as well as providing low part-to-part skew , and >150V/ns common mode noise immunity (CMTI).
The UCC21710-Q1 includes the state-of-the-art protection features, such as fast overcurrent and short circuit detection, shunt current sensing support, fault reporting, active Miller clamp, and input and output side power supply UVLO to optimize SiC and IGBT switching behavior and robustness. The isolated analog to PWM sensor can be used for easier temperature or voltage sensing, further increasing the drivers’ versatility and simplifying the system design effort, size and cost.
