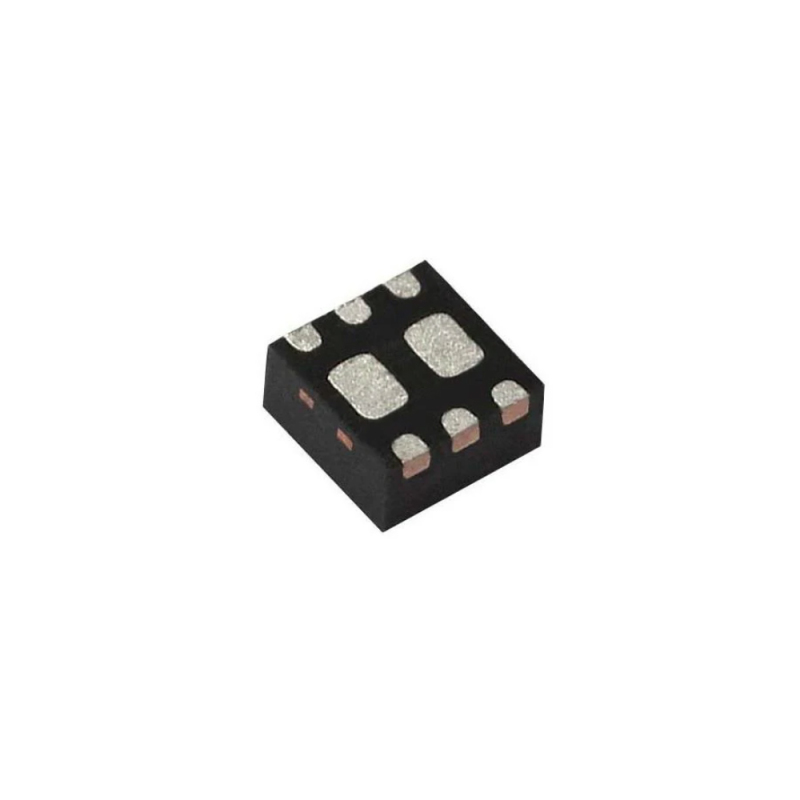

In Stock ! Vishay Transistors SIB441EDK-T1-GE3

Name: In Stock ! Vishay Transistors SIB441EDK-T1-GE3
Brand: YW SHOP
SKU: In Stock ; Ship In 48 Hours
Price: 0.1 USD
Availability: InStock

Brand : Vishay
Date Code : 2244
Packing : Reel
Package : SC-75-6
Minimum Packing : 3000pcs

$0.10

Received successfully

Coupon Code

CONTINUE SHOPPING

Discount

GET $10.00 OFF ON ORDERS OVER $100.00

Add to Favorites

facebook
line
twitter
whatsapp
pinterest
tumblr
linkedin

1/1

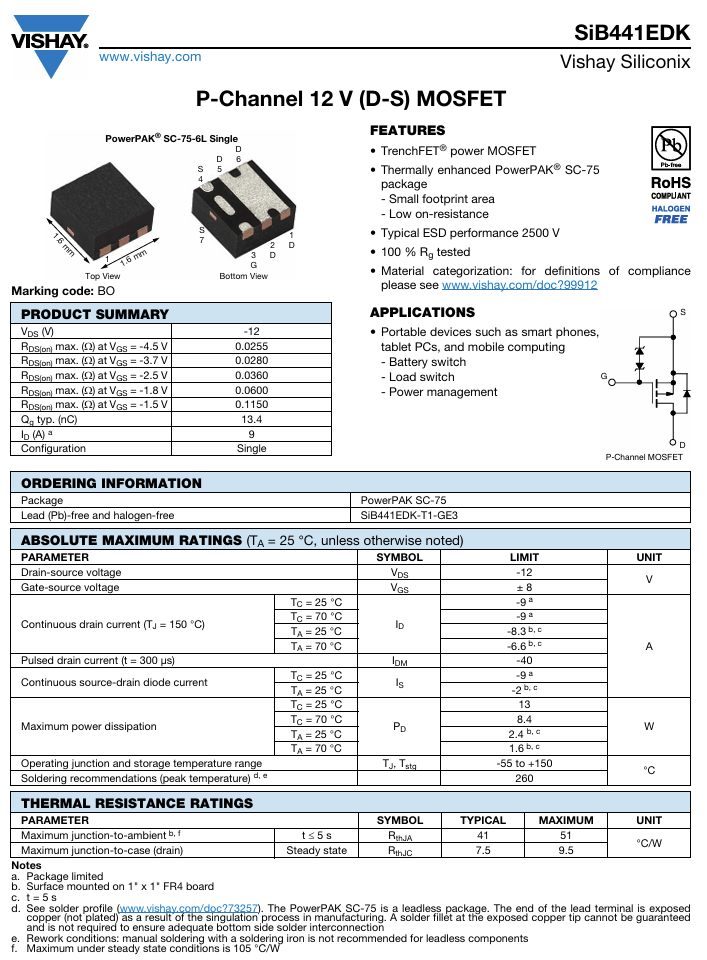

Description

Features：
MOSFETs -12V Vds 8V Vgs PowerPAK SC-75

Product Attribute	Attribute Value
Vds - Drain-Source Breakdown Voltage:	12 V
Id - Continuous Drain Current:	9 A
Rds On - Drain-Source Resistance:	21 mOhms
Vgs - Gate-Source Voltage:	- 8 V, + 8 V
Vgs th - Gate-Source Threshold Voltage:	900 mV
Qg - Gate Charge:	33 nC
Minimum Operating Temperature:	- 55°C
Maximum Operating Temperature:	+ 150°C
Pd - Power Dissipation:	13 W
Fall Time:	50 ns
Forward Transconductance - Min:	17 S
Height:	0.75 mm
Length:	1.6 mm
Width:	1.6 mm
Unit Weight:	0.003386 oz
