| Brand | Coilcraft |
| Date Code | 24+ |
| Packing | Reel |
| Package | SMD/SMT |
| Minimum Packing | 2000pcs/Reel |

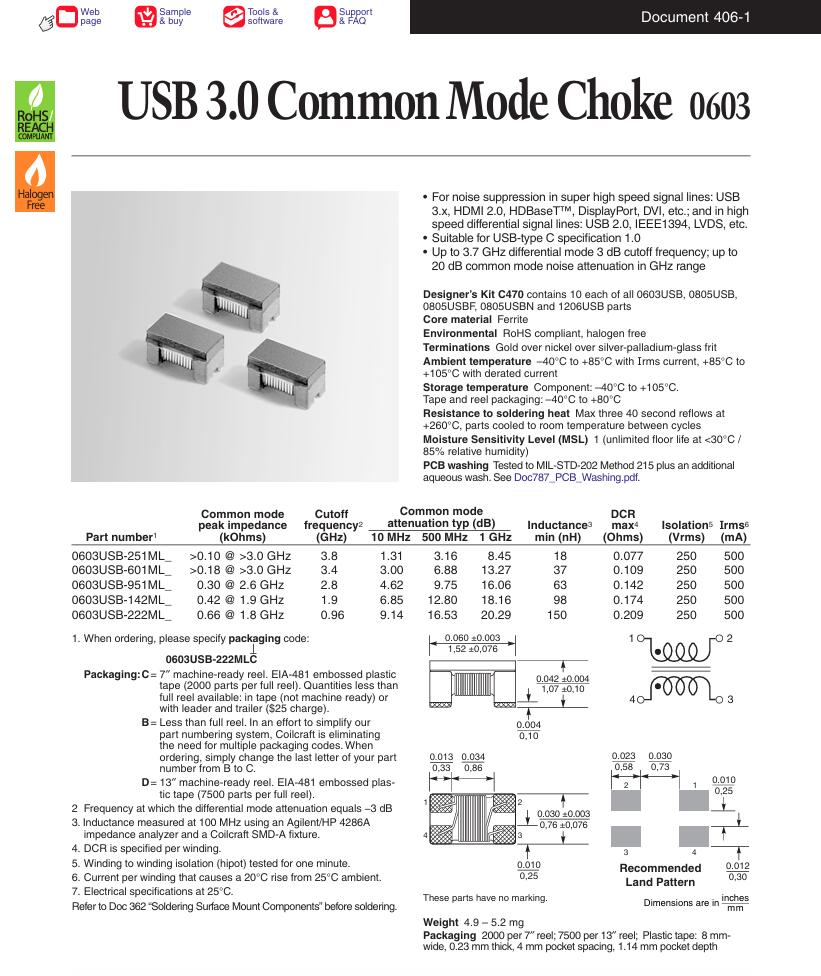

USB 3.0 Common Mode Choke 0603
Designer’s Kit C470 contains 10 each of all 0603USB, 0805USB, 0805USBF, 0805USBN and 1206USB parts
Core material Ferrite
Environmental RoHS compliant, halogen free
Terminations Gold over nickel over silver-palladium-glass frit
Ambient temperature –40°C to +85°C with Irms current, +85°C to +105°C with derated current
Storage temperature Component: –40°C to +105°C. Tape and reel packaging: –40°C to +80°C
Resistance to soldering heat Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL) 1 (unlimited floor life at <30°C /85% relative humidity)
PCB washing Tested to MIL -STD-202 Method 215 plus an additional
aqueous wash.
