| Brand | Coilcraft |
| Date Code | 24+ |
| Packing | Reel |
| Package | SMD/SMT |
| Minimum Packing | 600pcs/Reel |

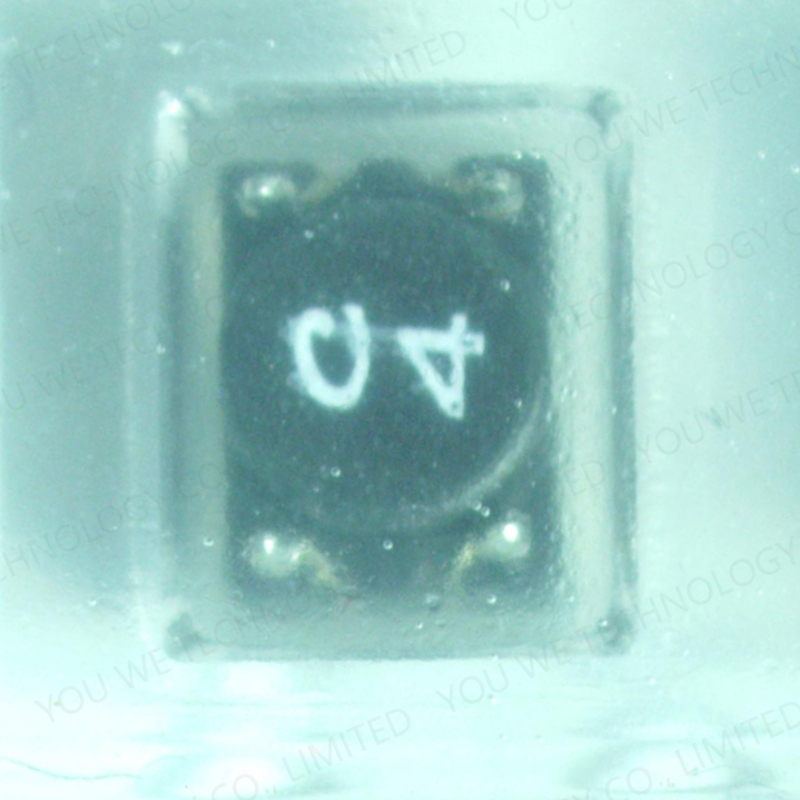

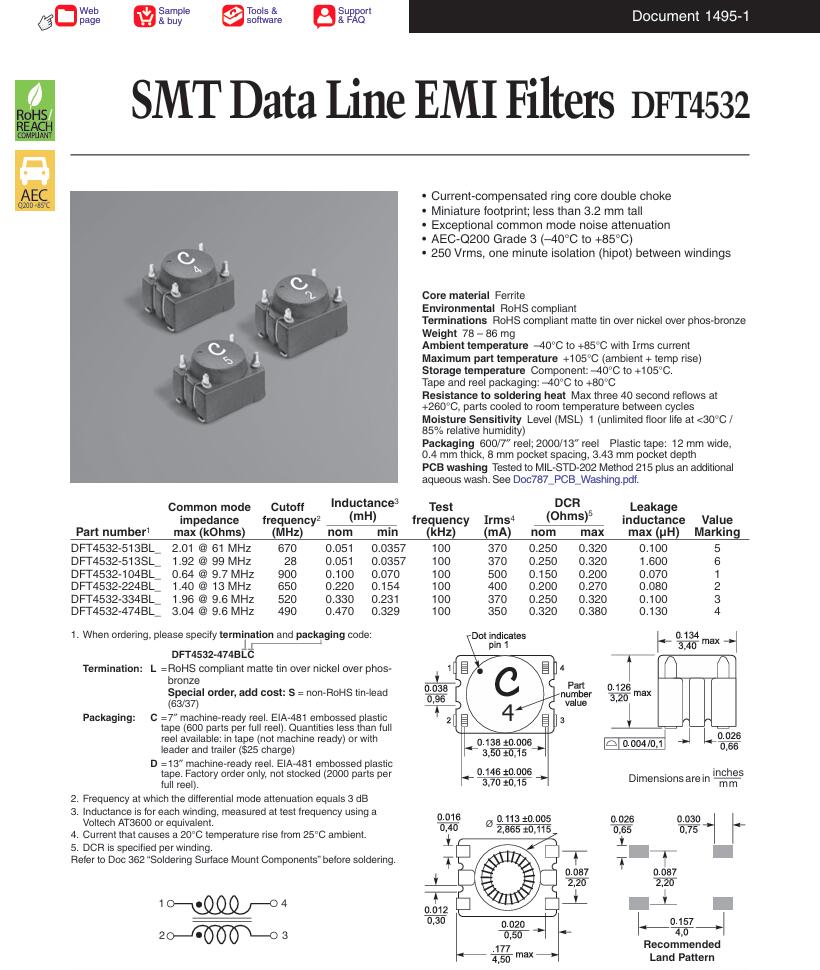

SMT Data Line EMI Filters DFT4532
Core material Ferrite
Environmental RoHS compliant
Terminations RoHS compliant matte tin over nickel over phos-bronze
Weight 78 – 86 mg
Ambient temperature –40°C to +85°C with Irms current
Maximum part temperature +105°C (ambient + temp rise)
Storage temperature Component: –40°C to +105°C. Tape and reel packaging: –40°C to +80°C
Resistance to soldering heat Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles Moisture Sensitivity Level (MSL) 1 (unlimited floor life at <30°C/
85% relative humidity)

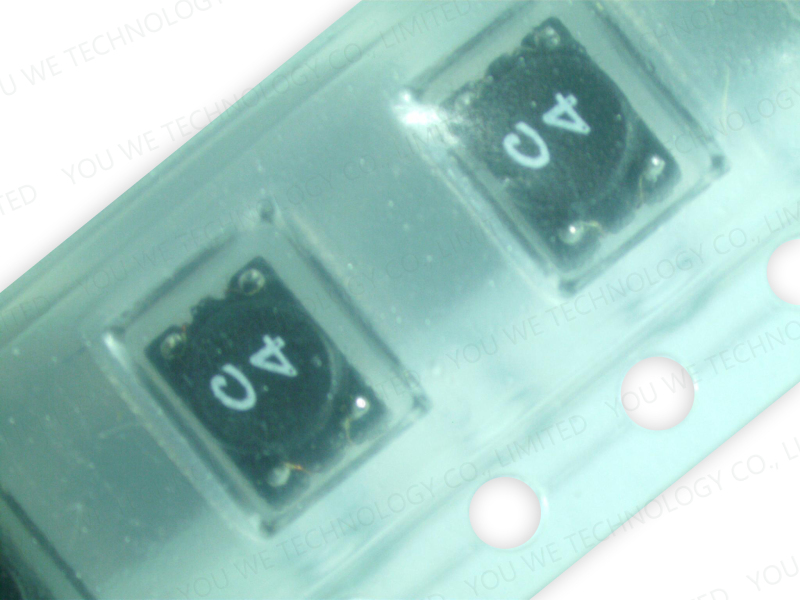

Packaging 600/7" reel; 2000/13" reel Plastic tape: 12 mm wide,
0.4 mm thick, 8 mm pocket spacing, 3.43 mm pocket depth
PCB washing Tested to MIL -STD -202 Method 215 plus an aditional
aqueous wash. See Doc787_ PCB_ _Washing.pdf.
