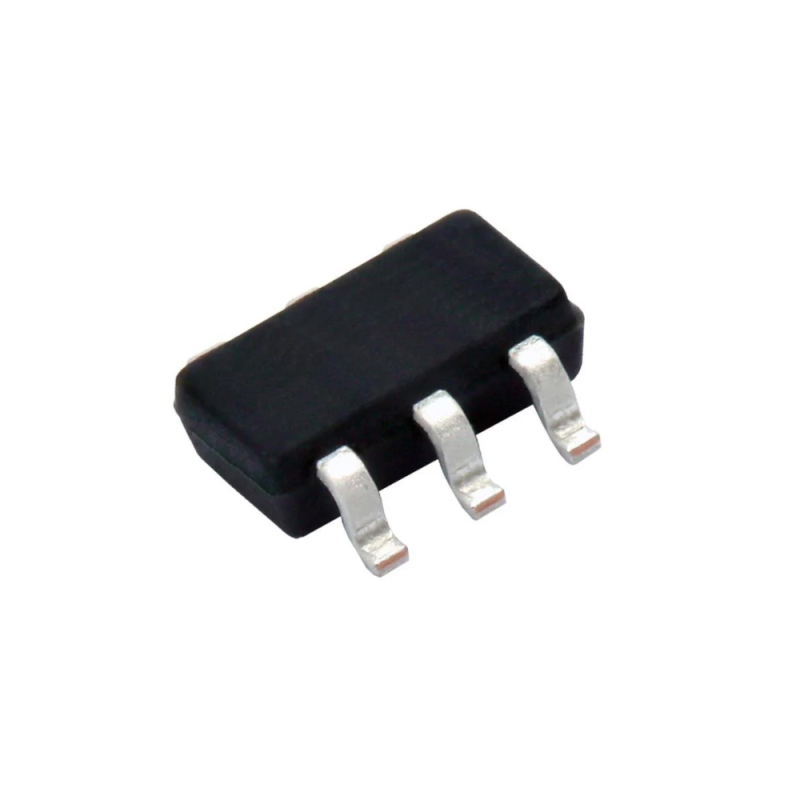

In Stock ! Infineon BSL215CH6327XTSA1 Transistors

Name: In Stock ! Infineon BSL215CH6327XTSA1 Transistors
Brand: YW SHOP
SKU: In Stock ; Ship In 48 Hours
Price: 0.1 USD
Availability: InStock

Brand：Infineon Technologies
Date Code：2238/2320
Packing：Reel
Package：TSOP-6
Minimum Packing：3000pcs

$0.10

Received successfully

Coupon Code

CONTINUE SHOPPING

Discount

GET $10.00 OFF ON ORDERS OVER $100.00

Add to Favorites

facebook
line
twitter
whatsapp
pinterest
tumblr
linkedin

1/1

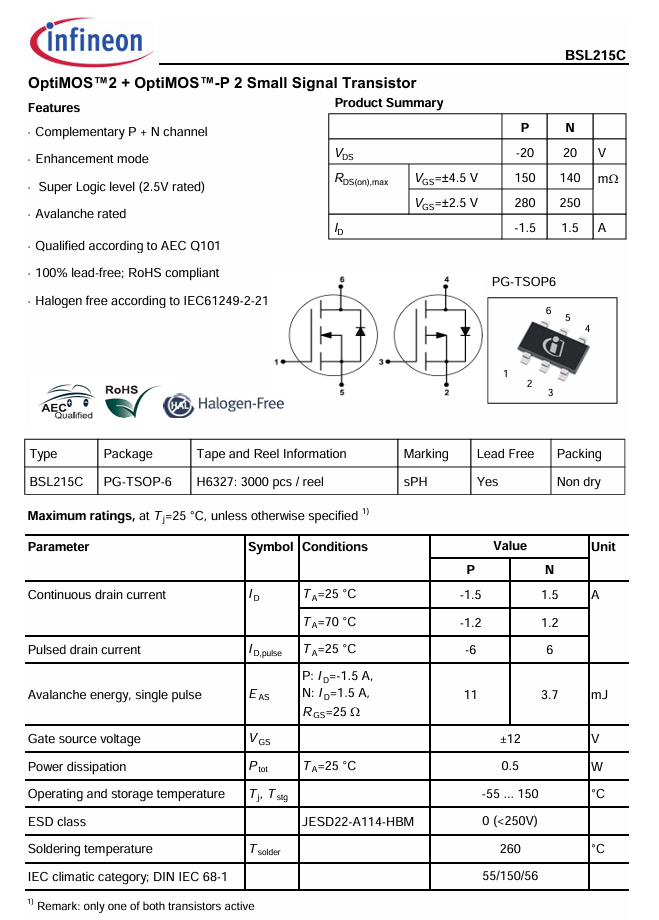

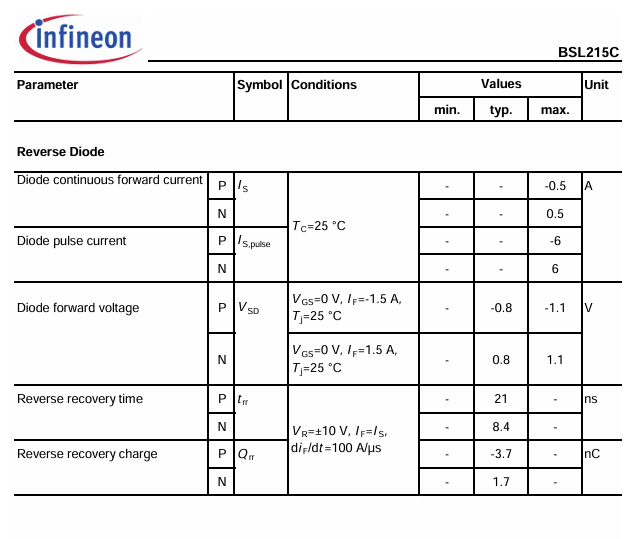

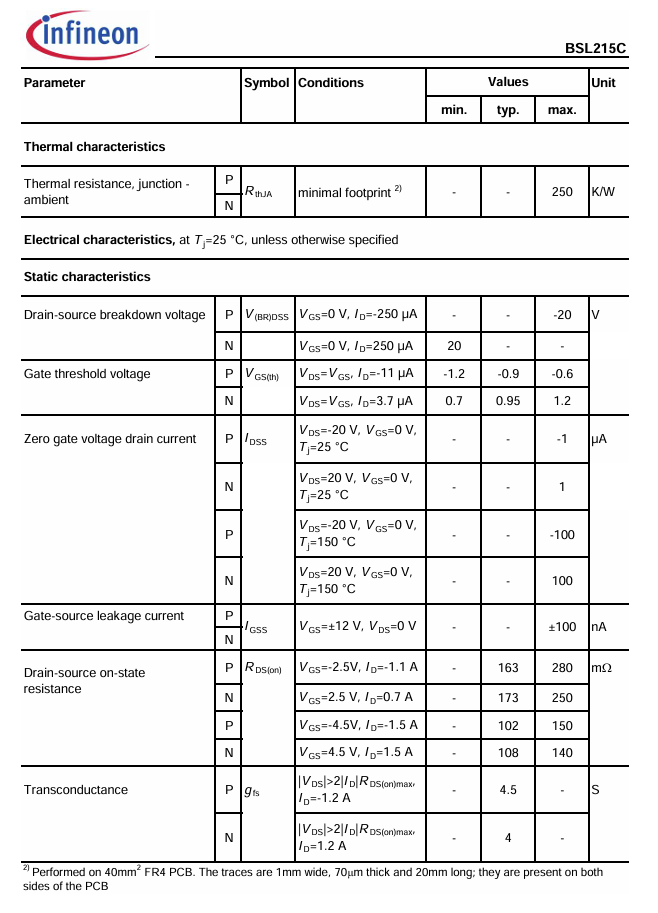

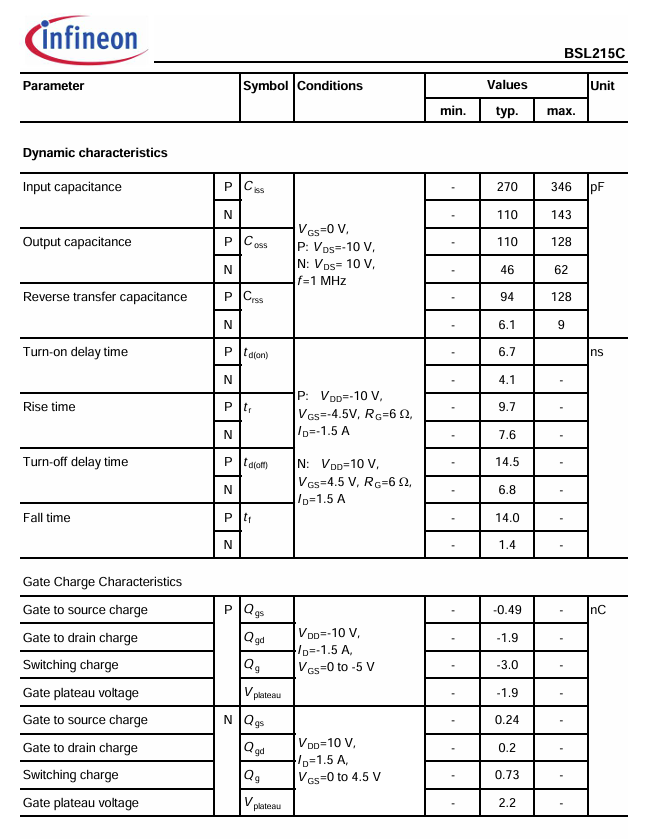

Description

Features：
MOSFETs SMALL SIGNAL+P-CH

Product Attribute	Attribute Value
Number of Channels:	2 Channel
Vds - Drain-Source Breakdown Voltage:	20 V
Id - Continuous Drain Current:	1.5 A, 1.5 A
Rds On - Drain-Source Resistance:	108 mOhms, 173 mOhms
Vgs - Gate-Source Voltage:	- 12 V, + 12 V
Vgs th - Gate-Source Threshold Voltage:	950 mV, 900 mV
Qg - Gate Charge:	73 pC, 3 nC
Minimum Operating Temperature:	- 55°C
Maximum Operating Temperature:	+ 150°C
Pd - Power Dissipation:	500 mW
Fall Time:	1.4 ns, 14 ns
Forward Transconductance - Min:	4 S, 4.5 S
Height:	1.1 mm
Length:	3 mm
Width:	1.5 mm
Unit Weight:	0.000705 oz
