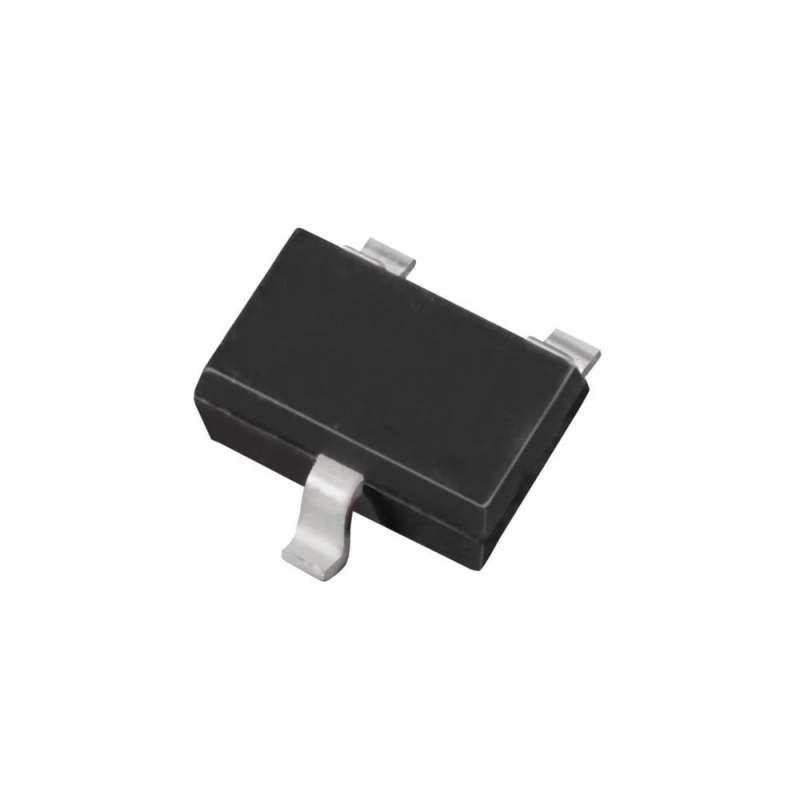

In Stock ! Infineon Transistors BSS84PWH6327XTSA1

Name: In Stock ! Infineon Transistors BSS84PWH6327XTSA1
Brand: YW SHOP
SKU: In Stock ; Ship In 48 Hours
Price: 0.04 USD
Availability: InStock

Brand：Infineon Technologies
Date Code：2251
Packing：Reel
Package：SOT-323-3
Minimum Packing：3000pcs

$0.04

Received successfully

Coupon Code

CONTINUE SHOPPING

Discount

GET $10.00 OFF ON ORDERS OVER $100.00

Add to Favorites

1/1

Description

Features：
MOSFETs P-Ch -60V 150mA SOT-323-3

Product Attribute	Attribute Value
Vds - Drain-Source Breakdown Voltage:	60 V
Id - Continuous Drain Current:	150 mA
Rds On - Drain-Source Resistance:	4.6 Ohms
Vgs - Gate-Source Voltage:	- 20 V, + 20 V
Vgs th - Gate-Source Threshold Voltage:	2 V
Qg - Gate Charge:	1.5 nC
Minimum Operating Temperature:	- 55°C
Maximum Operating Temperature:	+ 150°C
Pd - Power Dissipation:	300 mW
Fall Time:	20.5 ns
Forward Transconductance - Min:	80 mS
Height:	0.9 mm
Length:	2 mm
Typical Turn-Off Delay Time:	8.6 ns
Typical Turn-On Delay Time:	6.7 ns
Width:	1.25 mm
Unit Weight:	0.000212 oz
