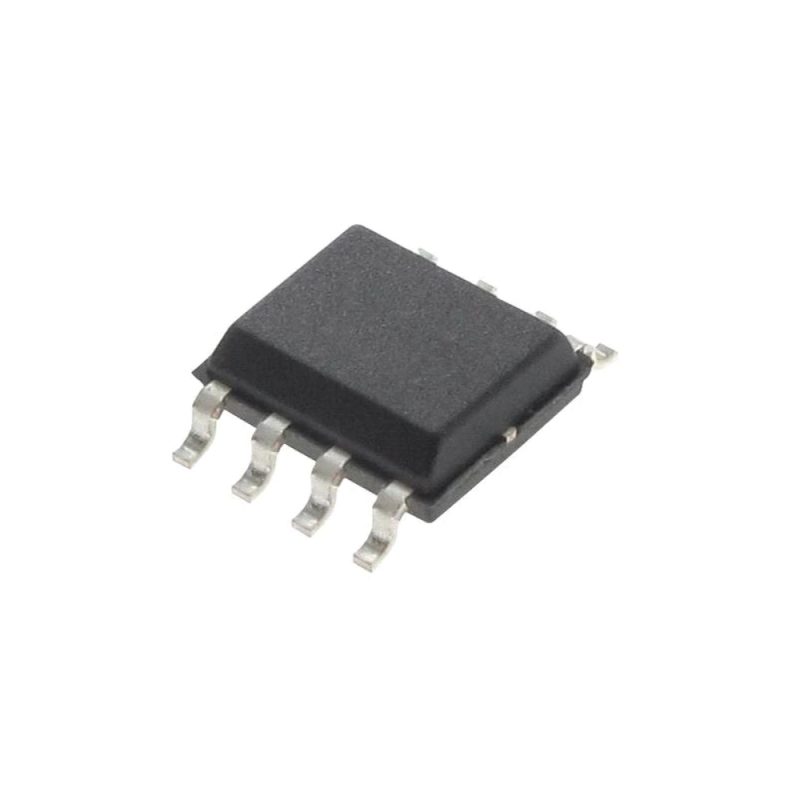

In Stock ! IR Transistors IRF7204TRPBF

Name: In Stock ! IR Transistors IRF7204TRPBF
Brand: YW SHOP
SKU: In Stock ; Ship In 48 Hours
Price: 1.1 USD
Availability: InStock

Brand：IR
Date Code：22+
Packing：Reel
Package：SOIC-8
Minimum Packing：4000pcs

$1.10

Received successfully

Coupon Code

Discount

1/1

Features：

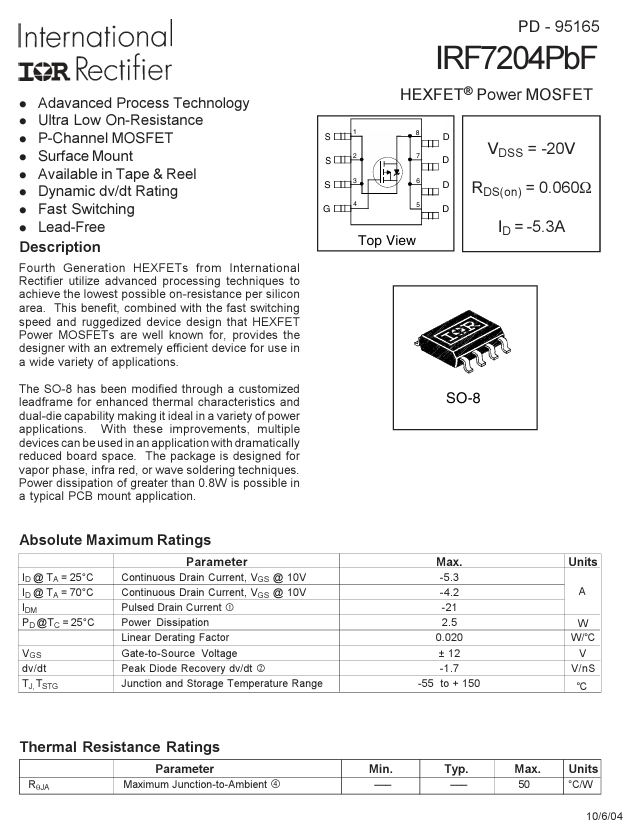

MOSFETs MOSFT PCh -20V -5.3A 60mOhm 25nC

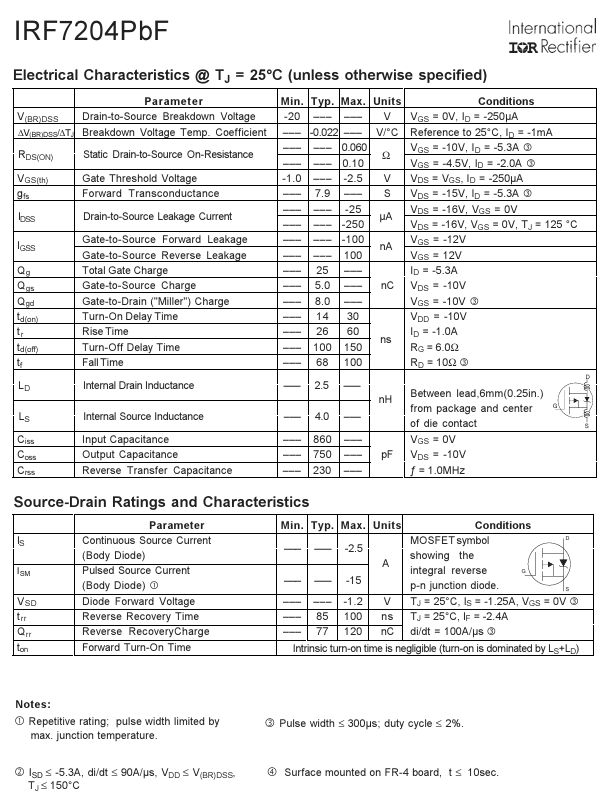

Product Attribute	Attribute Value
Number of Channels:	1 Channel
Vds - Drain-Source Breakdown Voltage:	20 V
Id - Continuous Drain Current:	5.3 A
Rds On - Drain-Source Resistance:	100 mOhms
Vgs - Gate-Source Voltage:	- 12 V, + 12 V
Vgs th - Gate-Source Threshold Voltage:	1 V
Qg - Gate Charge:	25 nC
Minimum Operating Temperature:	- 55°C
Maximum Operating Temperature:	+ 150°C
Pd - Power Dissipation:	2.5 W
Height:	1.75 mm
Length:	4.9 mm
Width:	3.9 mm
Unit Weight:	0.019048 oz
