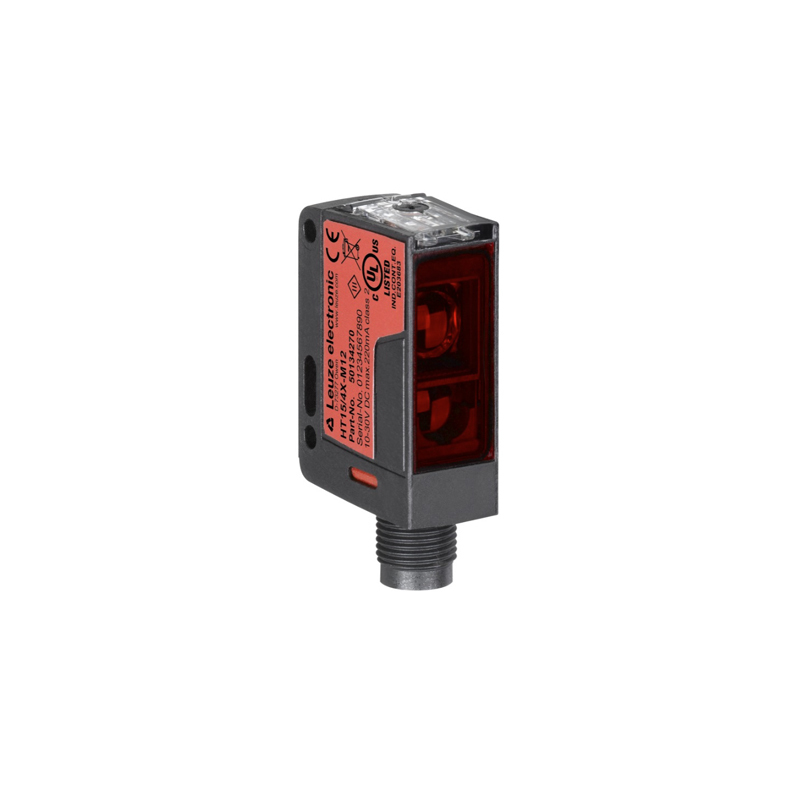

In Stock ! LEUZE HT15/4X-M12 Diffuse Sensor With Background Suppression

Name: In Stock ! LEUZE HT15/4X-M12 Diffuse Sensor With Background Suppression
Brand: YW SHOP
SKU: In Stock ; Ship In 48 Hours
Price: 60 USD
Availability: InStock

Brand : LEUZE
Date Code : 25+
Packing : Box
Package : Sensor
Minimum Packing : 1pcs

$60.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Discount

GET $10.00 OFF ON ORDERS OVER $100.00

Add to Favorites

facebook
line
twitter
whatsapp
pinterest
tumblr
linkedin

1/1

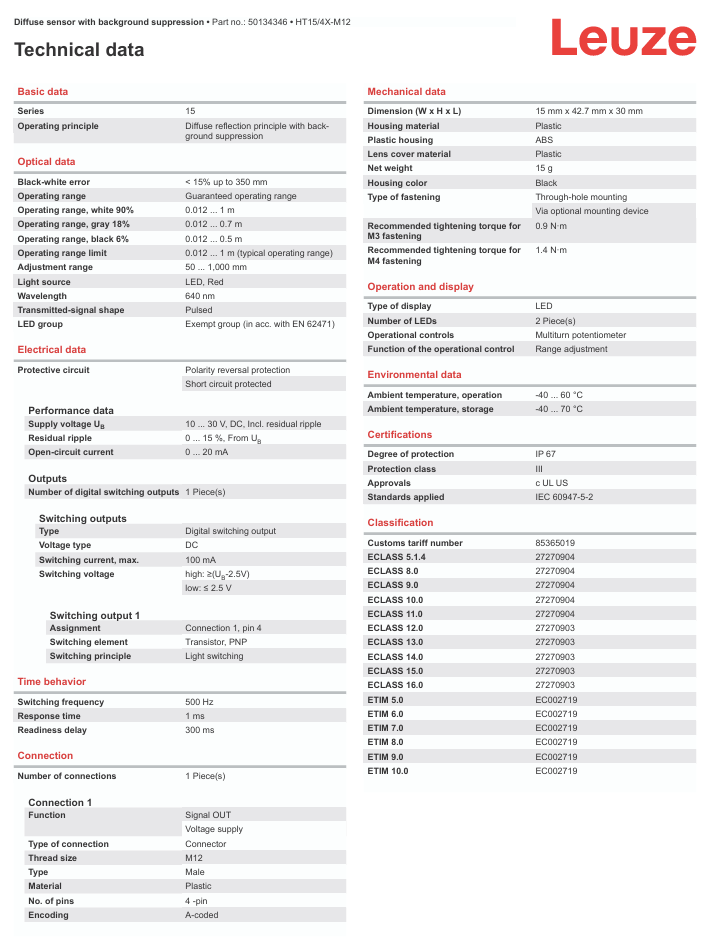

Description

Black-white error：< 15% up to 350 mm
Operating range：Guaranteed operating range
Operating range, white 90%：0.012 ... 1 m
Operating range, gray 18%：0.012 ... 0.7 m
Operating range, black 6%：0.012 ... 0.5 m
Operating range limit：0.012 ... 1 m (typical operating range)
Adjustment range：50 ... 1,000 mm
Light source：LED, Red
Wavelength：640 nm
Supply voltage UB：10 ... 30 V, DC, Incl. residual ripple
Residual ripple：0 ... 15 %, From UB
Open-circuit current：0 ... 20 mA
Ambient temperature, operation：-40 ... 60 °C
Ambient temperature, storage：-40 ... 70 °C
