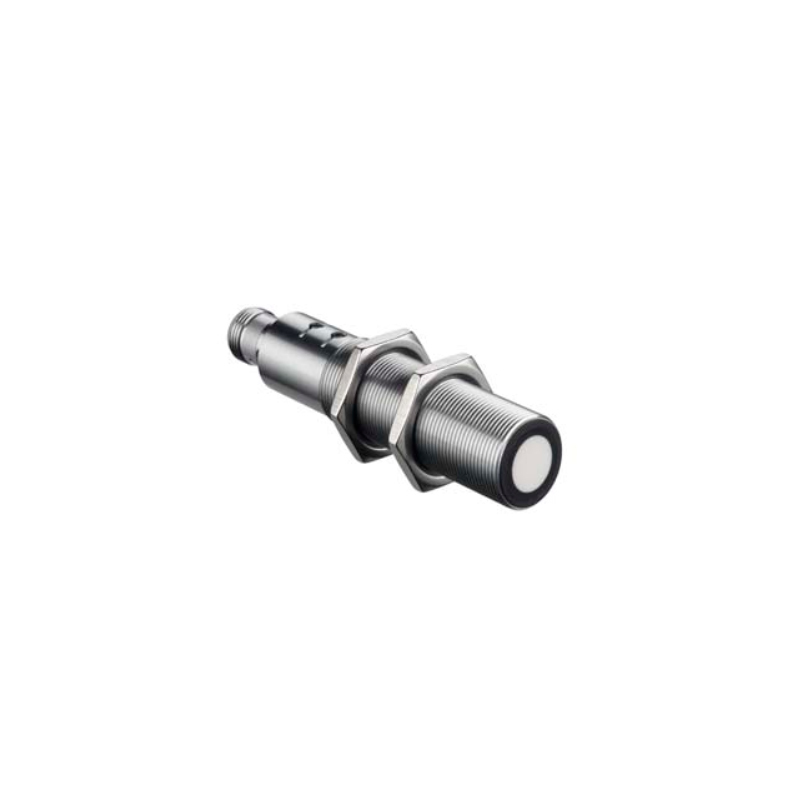

In Stock ! LEUZE HTU418B-1300.X3/LT4-M12 Ultrasonic Sensor

Name: In Stock ! LEUZE HTU418B-1300.X3/LT4-M12 Ultrasonic Sensor
Brand: YW SHOP
SKU: In Stock ; Ship In 48 Hours
Price: 690 USD
Availability: InStock

Brand : LEUZE
Date Code : 25+
Packing : Bag
Package : Sensor
Minimum Packing : 1pcs

$690.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Discount

GET $10.00 OFF ON ORDERS OVER $100.00

Add to Favorites

1/1

Description

Operating range：0.15 ... 1.3 m
Operating range：Guaranteed operating range
Ultrasonic frequency：200 kHz
Shape of sound lobe：standard
Direction of beam：Front
Opening angle：16 °
Repeatability：0.15 %
Reference value repeatability：End value
Temperature drift：1.5 %
Reference value, temperature drift：End value
Switching frequency：8 Hz
Response time：62 ms
Readiness delay：300 ms
Design：Cylindrical
Dimension (Ø x L)：18 mm x 90 mm
Thread size：M18 x 1 mm
Type of display：LED
Number of LEDs：2 Piece(s)
Operational controls：Control buttons
Ambient temperature, operation：-25 ... 70 °C
Ambient temperature, storage：-30 ... 85 °C
Degree of protection：IP 67 / IP 68
