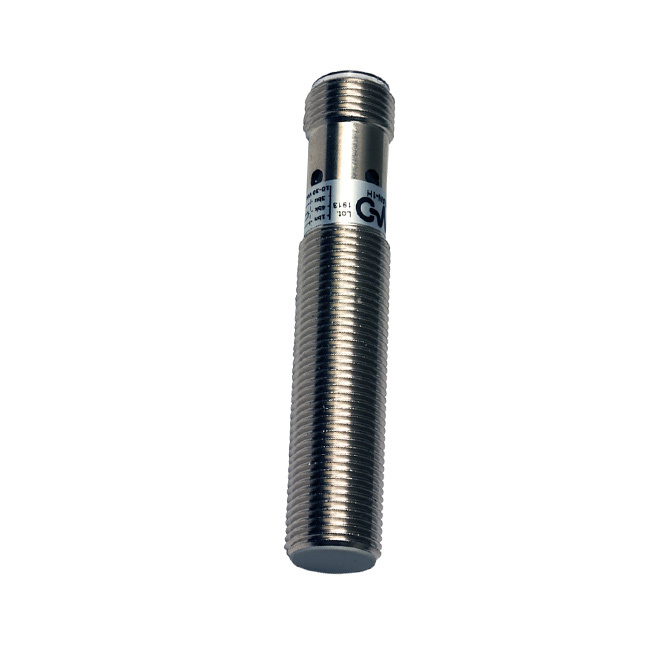

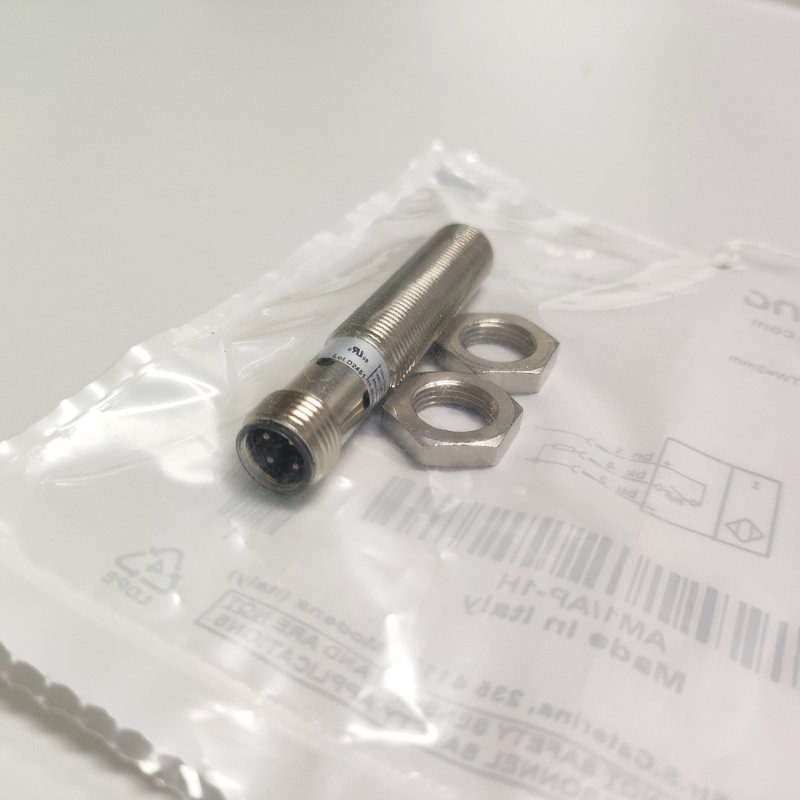

AM1/AP-1H MICRO DETECTORS Inductive sensor M12 shielded NO/PNP plug M12
Description:Inductive sensor M12 shielded NO/PNP plug M12
AM1/AP-1H Inductive sensor M12 shielded NO/PNP conn. M12

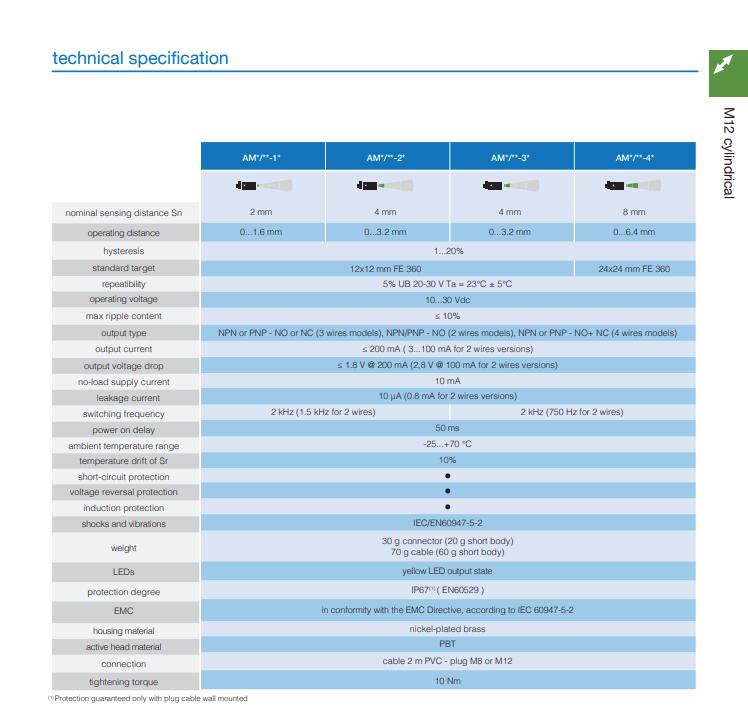

Nominal sensing distance：2mm
Operanting distance：0…1,6mm
Standard target：12x12mm FE360

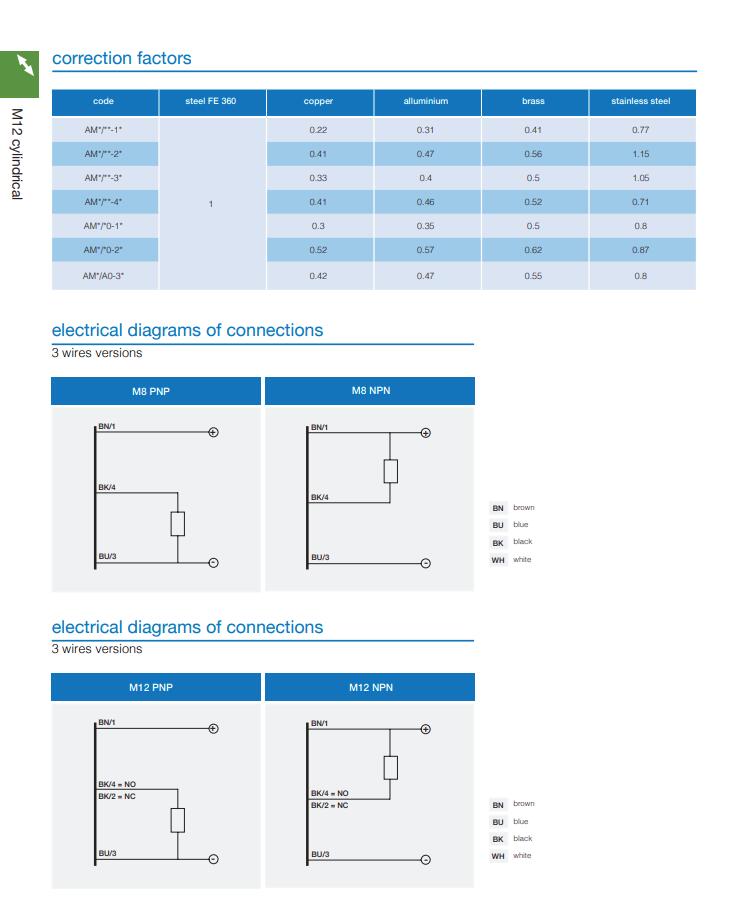

Correction Factor：copper: 0,22 / aluminium: 0,31 / brass: 0,41 / stainless steel: 0,77
Thermal drift of Sr：< 10%
Repeat Accuracy：5% (UB 24V Ta=23°C ±5°C)
Hysteresis：1 … 20%
Operating Voltage：10 - 30Vdc
No-Load supply current：≤ 10mA
Load current：≤ 200mA
Leakage current：≤ 10μA
Output voltage drop：≤ 1,8V @200mA
Max ripple content：≤10%
LED indicators：Yellow LED output state
Time delay before availability：50ms
Short-circuit protection：Yes (auto-reset)
Reverse Polarity Protection：Yes
Protection against inductive loads：Yes

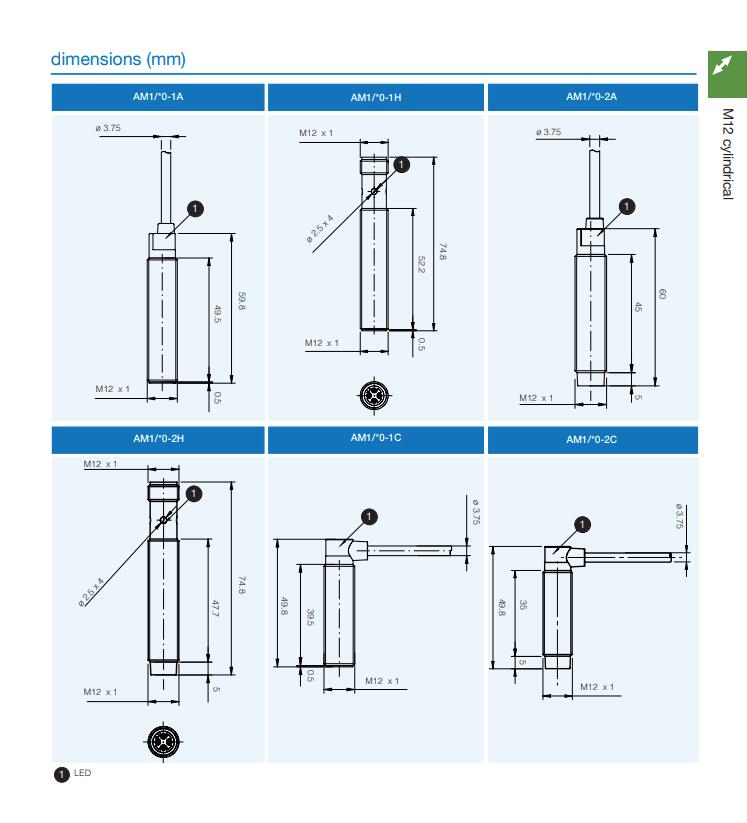

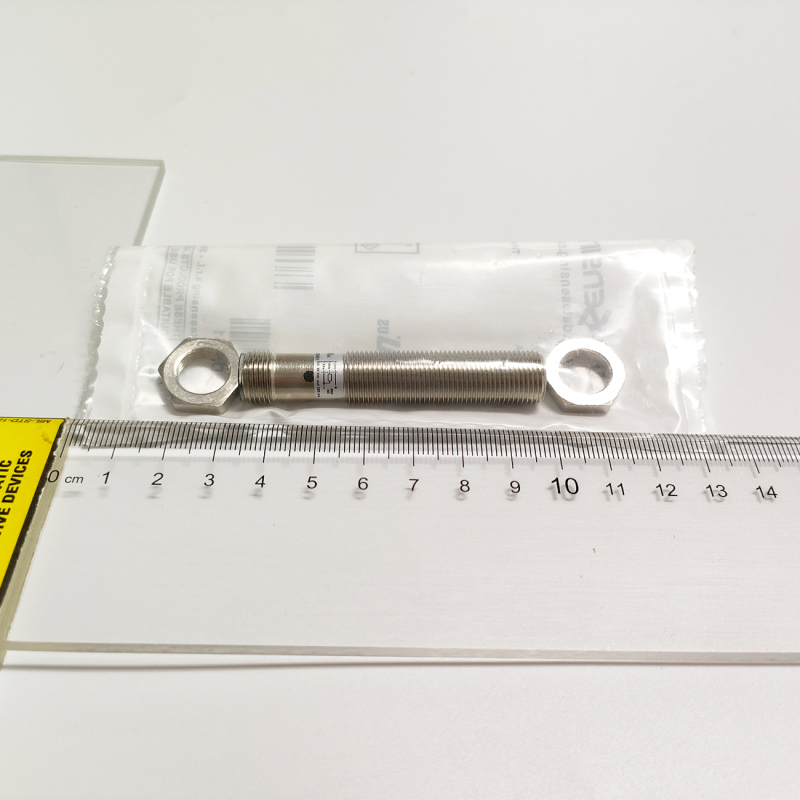

Dimensions：M12 x 1 / L = 64,8mm
Mounting：Shielded
Weight：30g
Housing Material：Nickel-plated brass

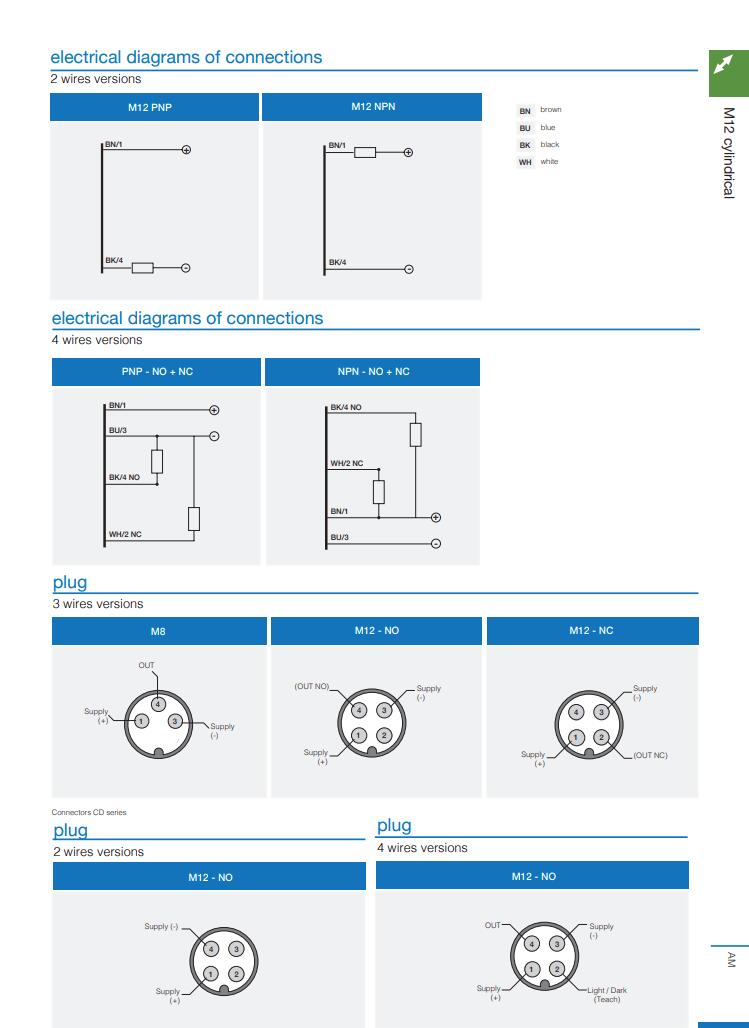

Connections：M12 Plug
Active Head Material：PBT
Tightening torque：10Nm
Operating temperature：-25°C…+70°C
Degree of protection：IP 67 (EN60529)

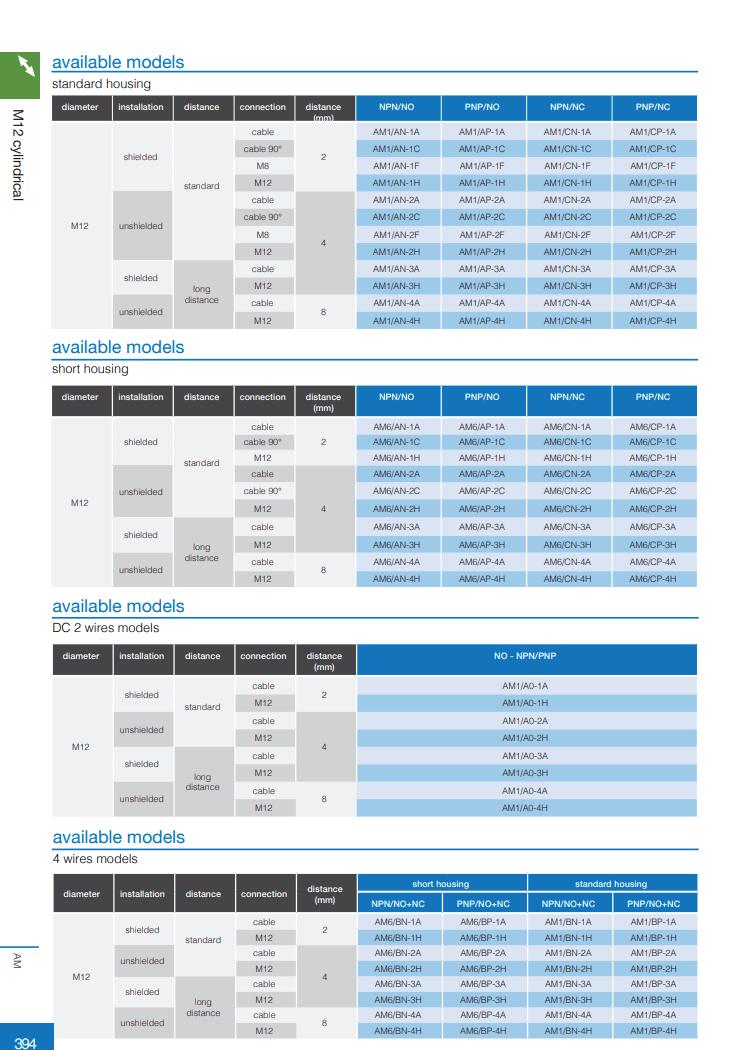

Similar Models:AM1/CN-2C AM1/CN-2H AM1/CN-3A AM1/CN-3H AM1/CN-4A AM1/CN-4A2Q AM1/CN-4H AM1/CP-1A AM1/CP-1C AM1/CP-1H AM1/CP-1HAN AM1/CP-2A AM1/CP-2C AM1/CP-2F AM1/CP-2H AM1/CP-3A AM1/CP-3H AM1/CP-3HAN AM1/CP-4A AM1/CP-4H AM1/CP-4HAN AM6/AN-1A AM6/AN-1C AM6/AN-1H AM6/AN-2A AM6/AN-2A86 AM6/AN-2C AM6/AN-2C86 AM6/AN-2H AM6/AN-3A AM6/AN-3A87AN AM6/AN-3H AM6/AN-4A AM6/AN-4H AM6/AP-1A AM6/AP-1A848QE5 AM6/AP-1A86 AM6/AP-1AAN AM6/AP-1C AM6/AP-1C86 AM6/AP-1H AM6/AP-1HAN AM6/AP-2A AM6/AP-2A86 AM6/AP-2C AM6/AP-2C86 AM6/AP-2H AM6/AP-2HAN AM6/AP-3A AM6/AP-3A84 AM6/AP-3A86 AM6/AP-3A86AN AM6/AP-3AAN AM6/AP-3C8F AM6/AP-3H AM6/AP-3HAN AM6/AP-4A AM6/AP-4A86AN AM6/AP-4H AM6/AP-4HAN AM6/BN-1A AM6/BN-1H AM6/BN-2A AM6/BN-2H AM6/BN-3A AM6/BN-3H AM6/BN-4A AM6/BN-4H AM6/BP-1A AM6/BP-1H AM6/BP-2A AM6/BP-2H AM6/BP-3A AM6/BP-3H AM6/BP-4A AM6/BP-4H AM6/CN-1A AM6/CN-1C AM6/CN-1H AM6/CN-2A AM6/CN-2C AM6/CN-2H AM6/CN-3A AM6/CN-3A86 AM6/CN-3H AM6/CN-4A AM6/CN-4H AM6/CP-1A AM6/CP-1C AM6/CP-1CVE80 AM6/CP-1H AM6/CP-2A AM6/CP-2C AM6/CP-2H AM6/CP-3A AM6/CP-3H AM6/CP-4A AM6/CP-4H AM6/CP-4HAN AM9/AN-3H AM9/AP-3H AM9/CP-3H
