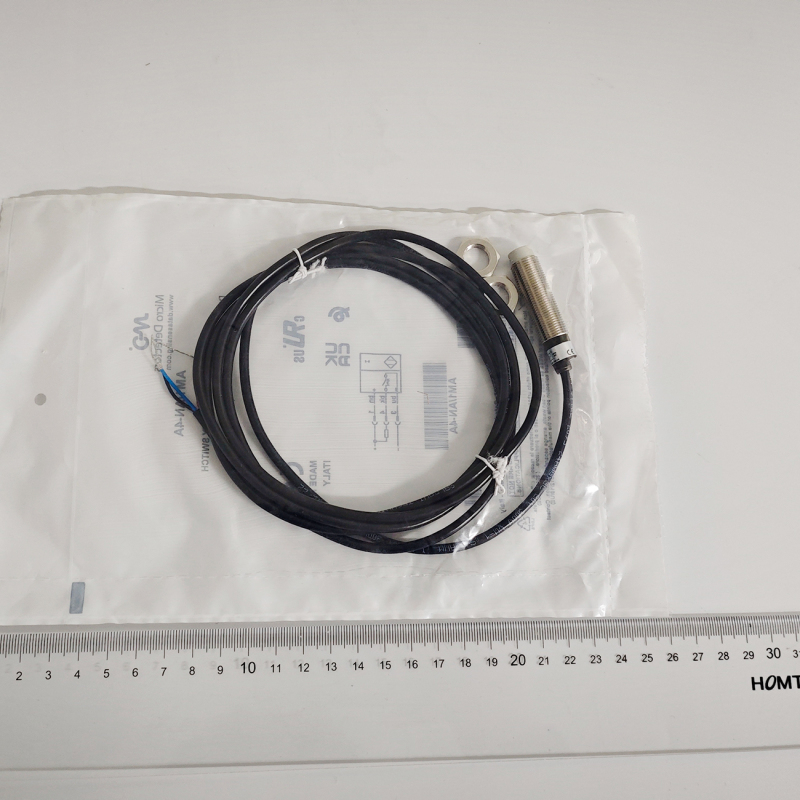

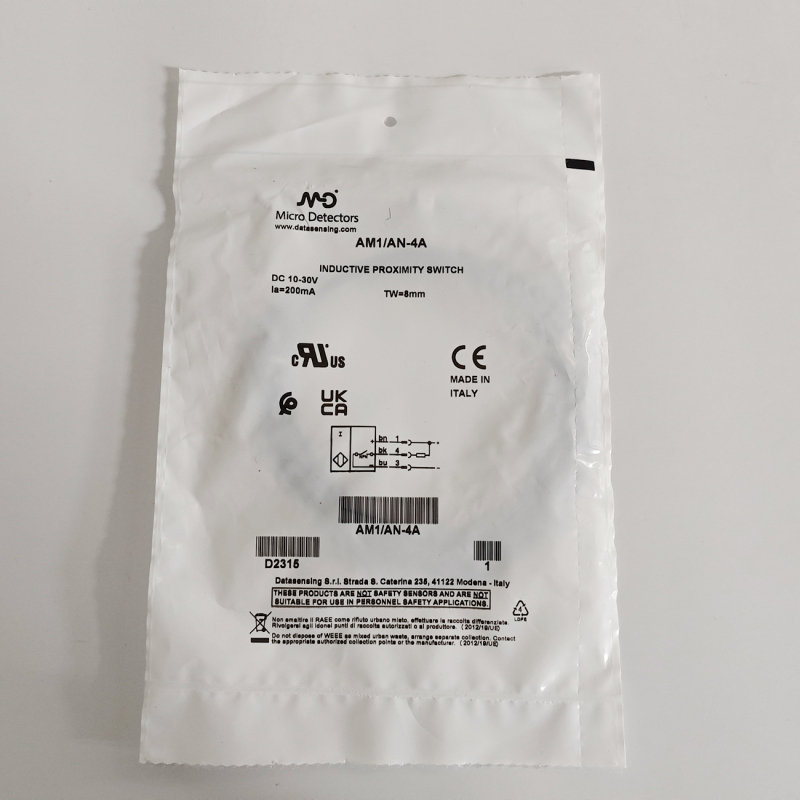

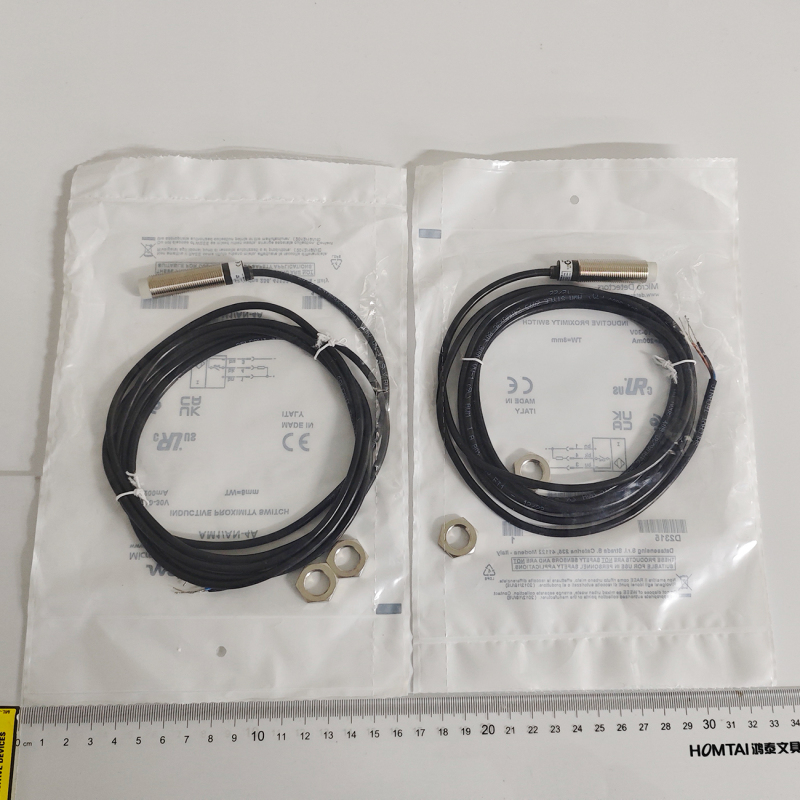

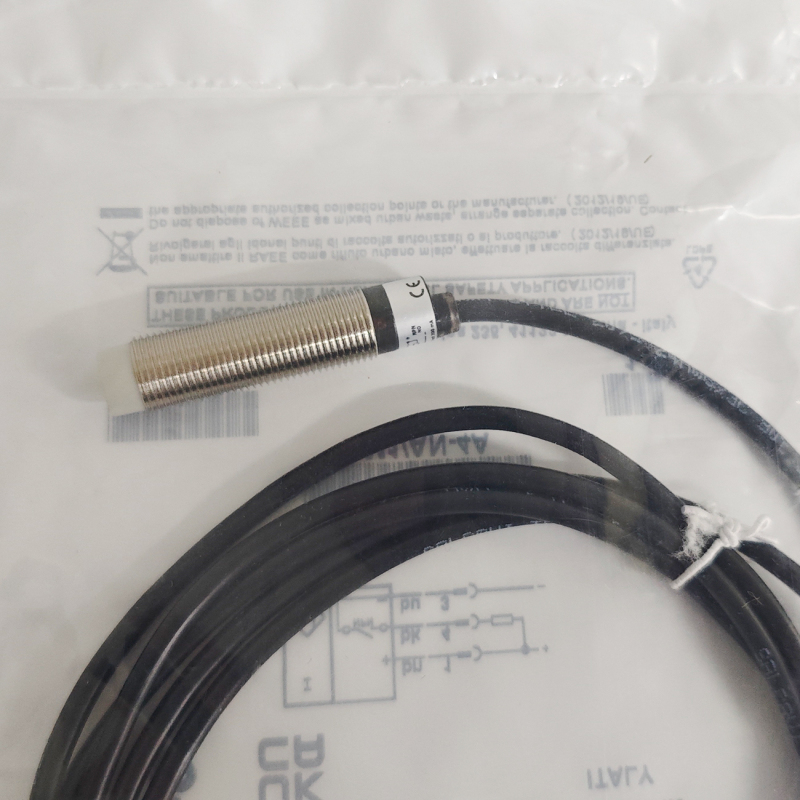

AM1/AN-4A MICRO DETECTORS Inductive sensor M12 unshielded NO/NPN cable 2m axial
Description:Inductive sensor M12 unshielded NO/NPN cable 2m axial

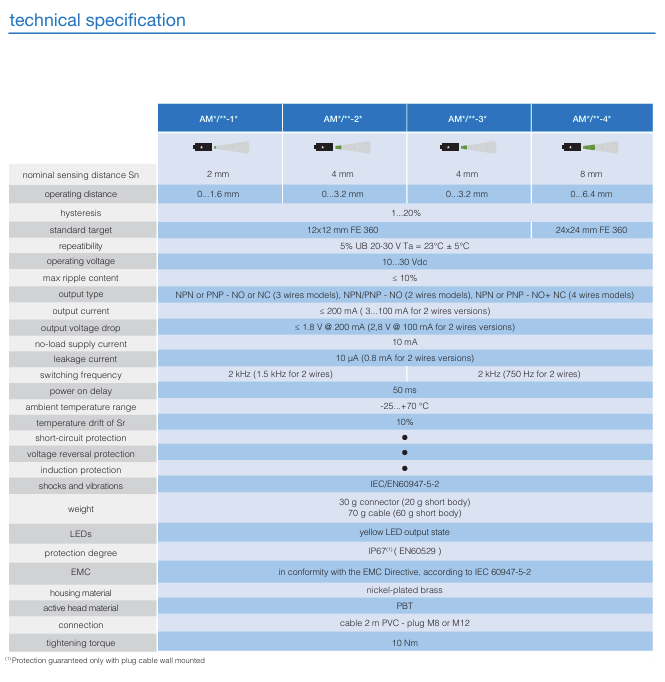

Nominal sensing distance：8mm
Operanting distance：0…6,4mm
Standard target：24x24mm FE360
Correction Factor：rame: 0,41 / alluminio: 0,46 / ottone: 0,52 / acciaio INOX: 0,71
Thermal drift of Sr：< 10%
Repeat Accuracy：5% (UB 24V Ta=23°C ±5°C)
Hysteresis：1 … 20%
Switching frequency：2kHz
Operating Voltage：10 - 30Vdc
No-Load supply current：≤ 10mA
Load current：≤ 200mA
Leakage current：≤ 10μA
Output voltage drop：≤ 1,8V @200mA
Max ripple content：≤10%
LED indicators：LED giallo stato dell'uscita
Time delay before availability：50ms
Dimensions：M12 x 1 / L= 49,8mm
Mounting：Non Schermato
Weight：70g
Housing Material：Ottone nichelato
Connections：Cavo PVC 2m - Uscita Assiale
Active Head Material：PBT
Tightening torque：10Nm
Operating temperature：-25°C…+70°C
Degree of protection：IP 67 (EN60529)
