UK1

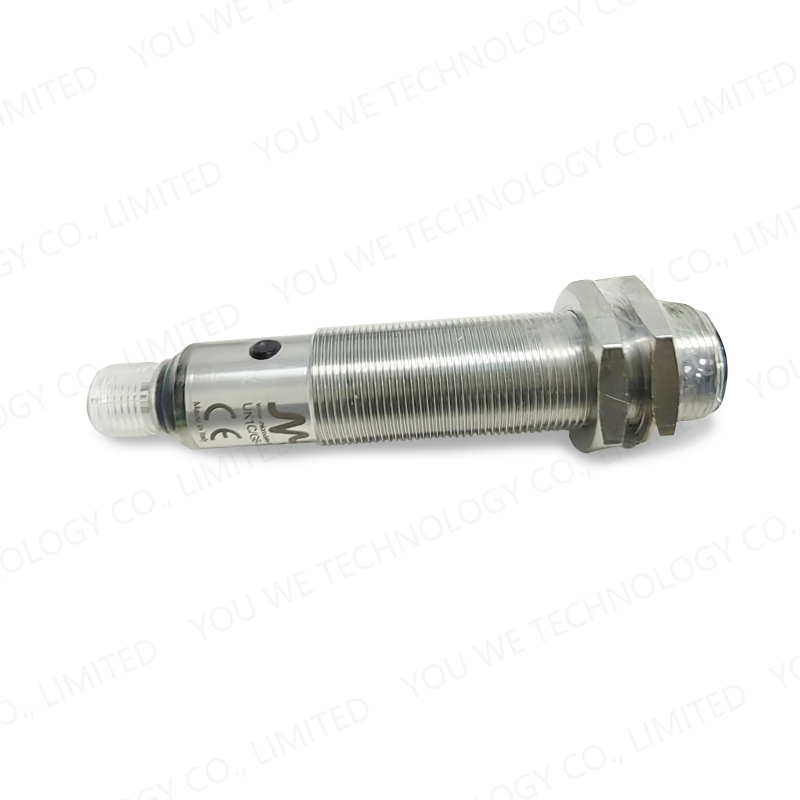

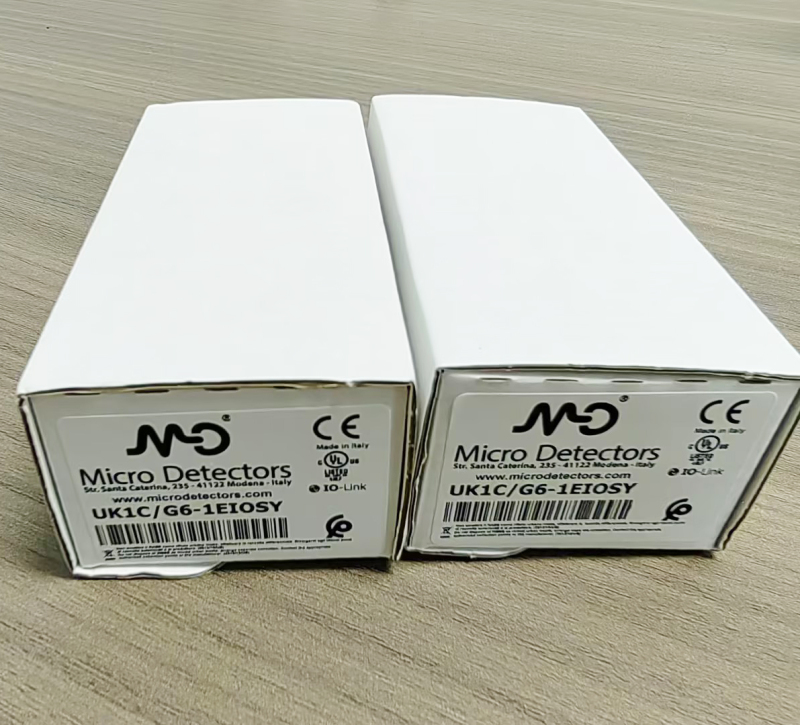

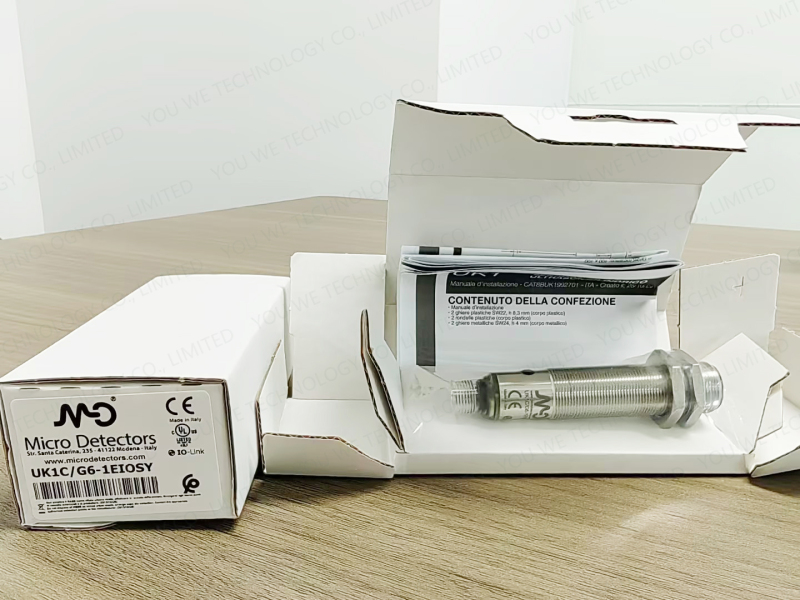

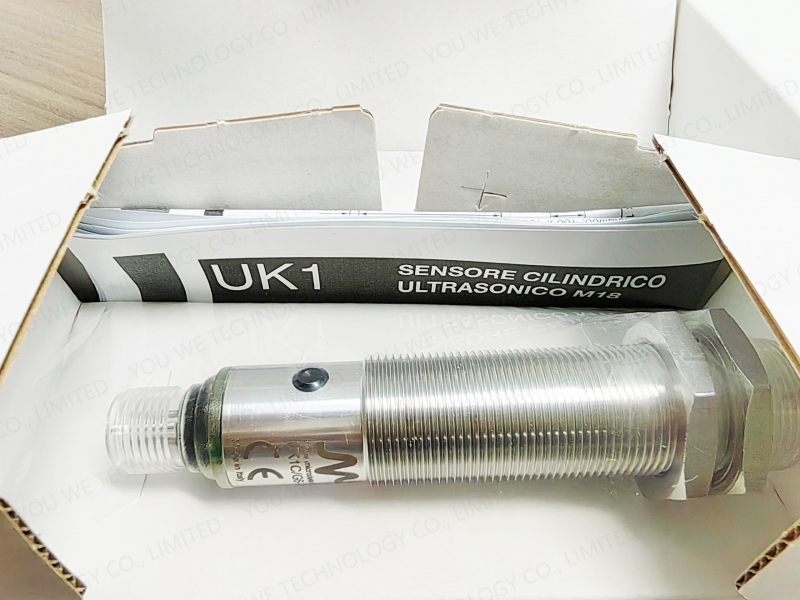

UK1C/G6-1EIOSY
Ultra.M18,PNP+4-20mA,M12 plug,Diffuse
Ultrasonic sensor M18 analog. 4-20 mA+ PNP NO/NC 100-900 mm conn. M12 with teach-in button, AISI316L stainless steel housing, cULus, IO-LINK

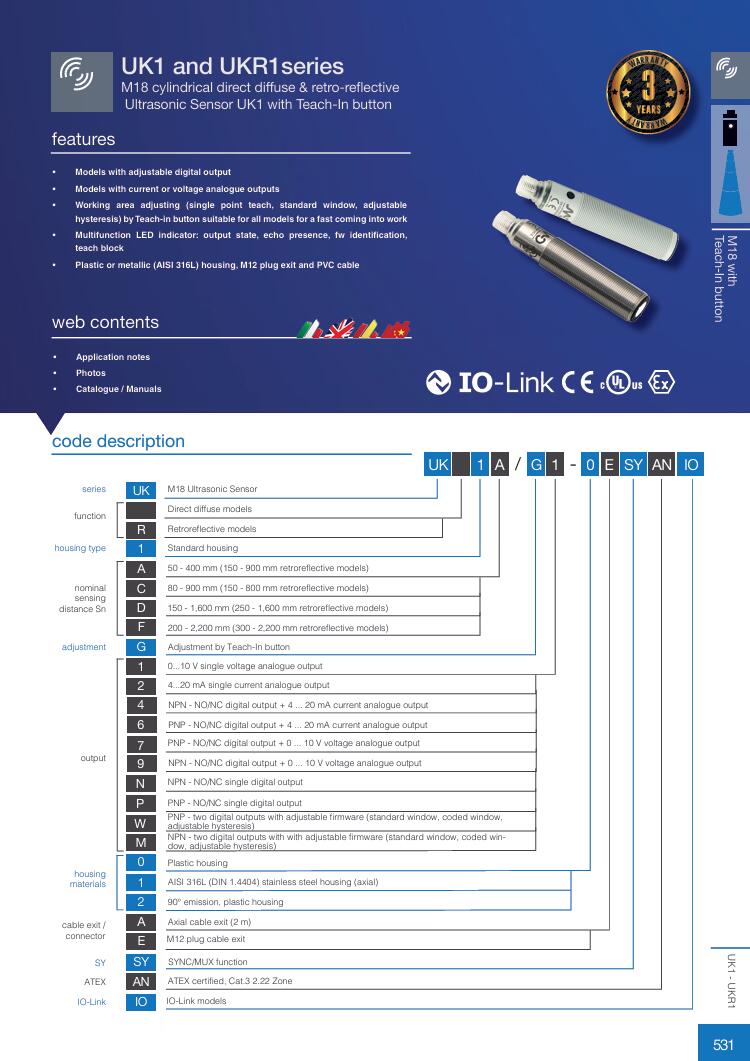

M18 cylindrical direct diffuse & retro-reflective Ultrasonic Sensor UK1 with Teach-In button
Overview
- Models with digital programmable output
- Models with current or voltage analogue outputs
- Adjustable Hysteresis function: model with programmable double digital outputs, specific for levels
- Working area adjusting (window teach or single point teach) by Teach-in button suitable for all models for a fast coming into work
Multifunction LED indicator: output type, adjustment procedure, NO/NC selection and reverse analog output slope
