Home > Passive Component > Transistors > In Stock ! Onsemi Bipolar Transistors MMBT4124LT1G
  • Onsemi Bipolar Transistors  MMBT4124LT1G
1/1
  • Onsemi Bipolar Transistors  MMBT4124LT1G

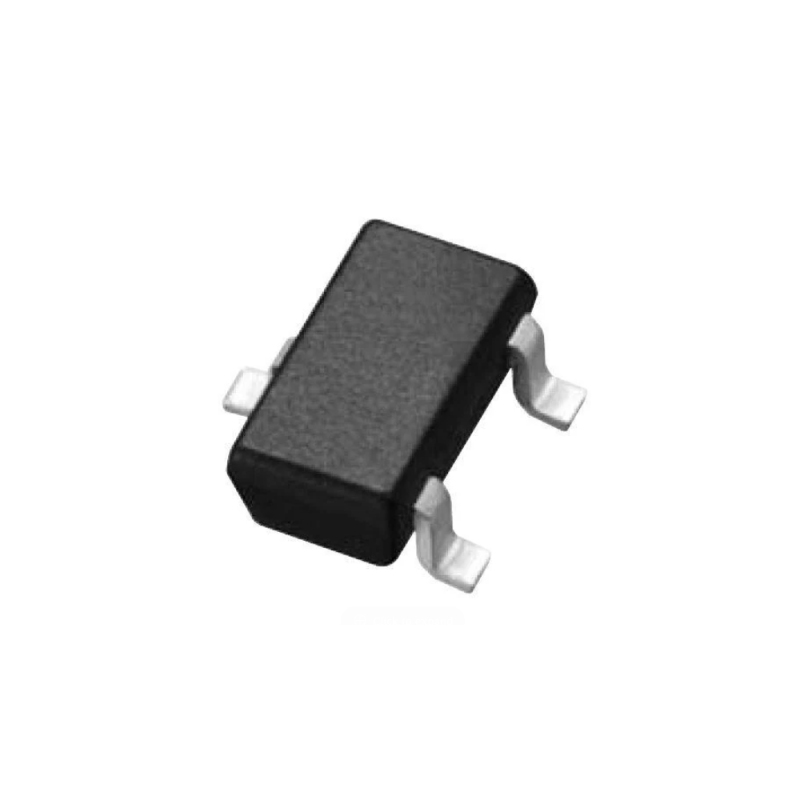

In Stock ! Onsemi Bipolar Transistors MMBT4124LT1G

Brand : Onsemi
Date Code : 2204/2212
Packing : Reel
Package : SOT-23-3
Minimum Packing : 3000
$0.00 $0.04
Received successfully
Coupon Code
CONTINUE SHOPPING
Discount
  • GET $10.00 OFF ON ORDERS OVER $100.00
Quantity
-
+
0 In Stock ; Ship In 48 Hours
  • Onsemi Bipolar Transistors  MMBT4124LT1G
  • Onsemi Bipolar Transistors  MMBT4124LT1G
1/1
  • Onsemi Bipolar Transistors  MMBT4124LT1G
  • Description
Features:
Bipolar Transistors - BJT 200mA 30V NPN

Product Attribute

Attribute Value

Maximum DC Collector Current:

200 mA

Collector- Emitter Voltage VCEO Max:

25 V

Collector- Base Voltage VCBO:

30 V

Emitter- Base Voltage VEBO:

5 V

Collector-Emitter Saturation Voltage:

300 mV

Pd - Power Dissipation:

225 mW

Gain Bandwidth Product fT:

300 MHz

Minimum Operating Temperature:

- 55°C

Maximum Operating Temperature:

+ 150°C

Continuous Collector Current:

200 mA

DC Collector/Base Gain hfe Min:

120

Height:

0.94 mm

Length:

2.9 mm

Width:

1.3 mm

Unit Weight:

0.000282 oz
