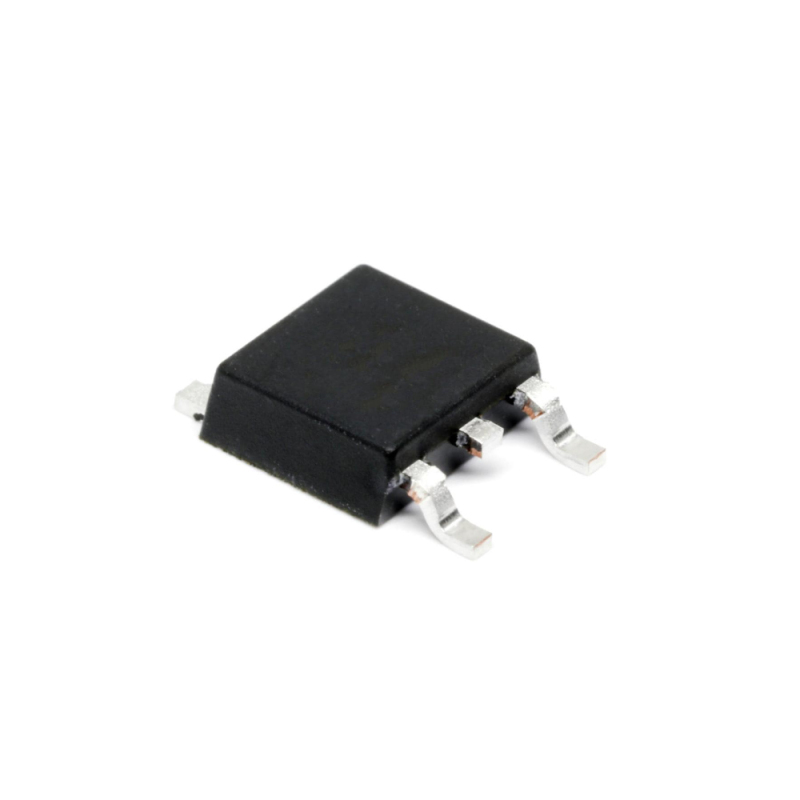

In Stock ! ST Transistors STD70N10F4

Name: In Stock ! ST Transistors STD70N10F4
Brand: YW SHOP
SKU: In Stock ; Ship In 48 Hours
Price: 1.4 USD
Availability: InStock

Brand : ST
Date Code : 2250
Packing : Reel
Package : TO-252-3
Minimum Packing : 2500pcs

$1.40

Received successfully

Coupon Code

Discount

1/1

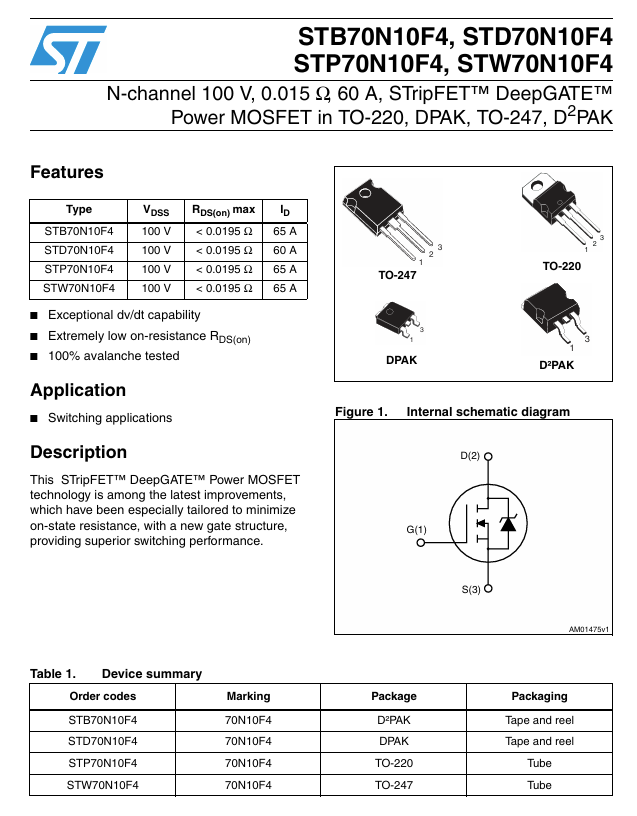

Features:
MOSFETs N-Ch, 100V-0.015ohms 60A

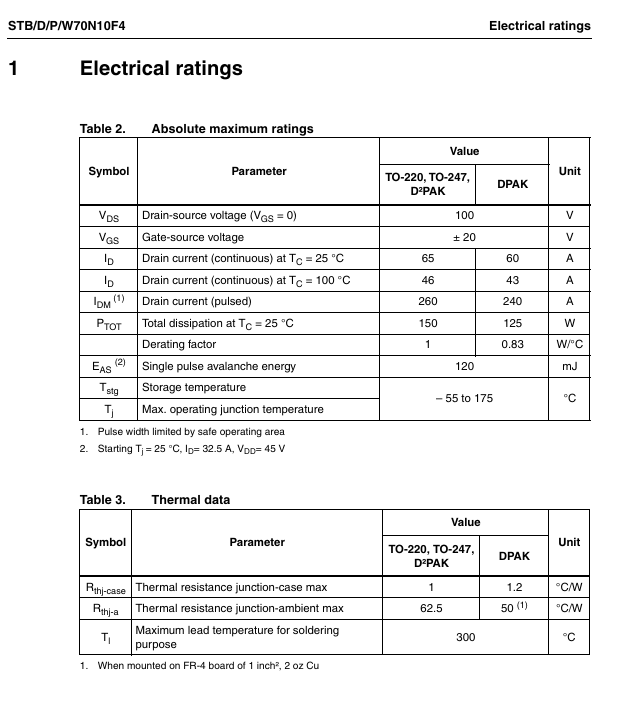

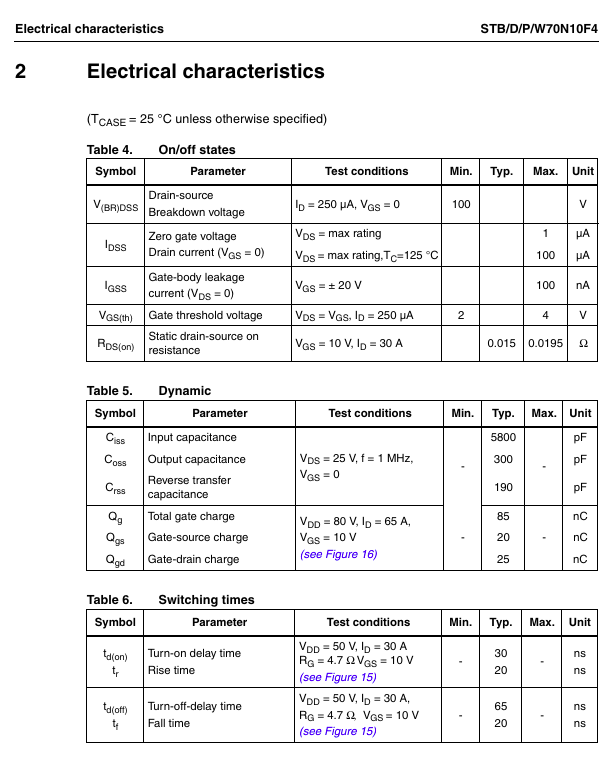

Product Attribute	Attribute Value
Vds - Drain-Source Breakdown Voltage:	100 V
Id - Continuous Drain Current:	60 A
Rds On - Drain-Source Resistance:	19.5 mOhms
Vgs - Gate-Source Voltage:	- 20 V, + 20 V
Vgs th - Gate-Source Threshold Voltage:	2 V
Qg - Gate Charge:	85 nC
Minimum Operating Temperature:	- 55°C
Maximum Operating Temperature:	+ 175°C
Pd - Power Dissipation:	125 W
Fall Time:	20 ns
Height:	2.4 mm
Length:	6.6 mm
Typical Turn-Off Delay Time:	65 ns
Typical Turn-On Delay Time:	30 ns
Width:	6.2 mm
Unit Weight:	0.011640 oz
