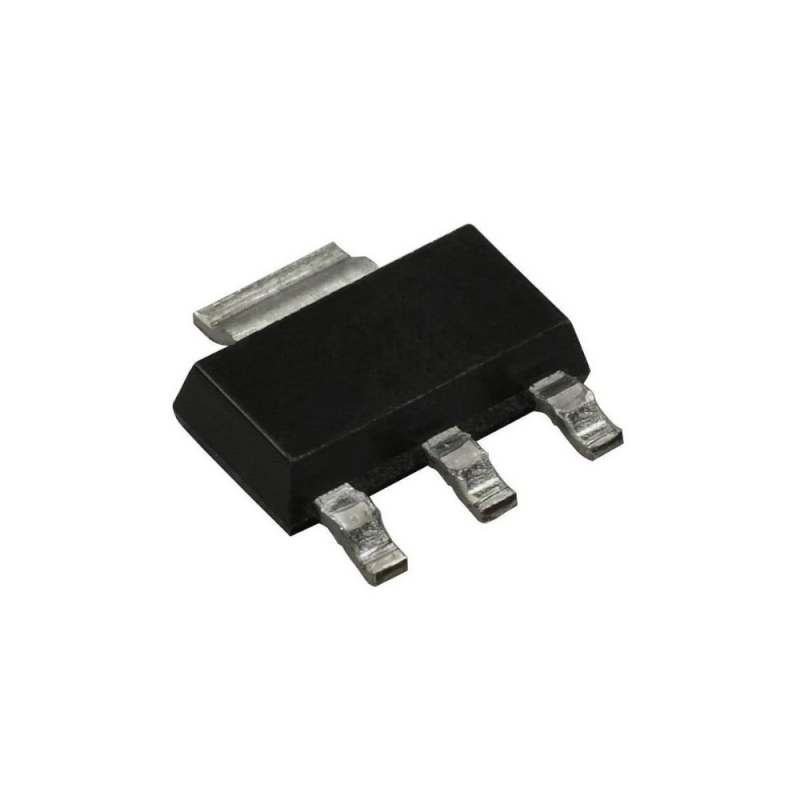

In Stock ! ST Transistors STN1HNK60

Name: In Stock ! ST Transistors STN1HNK60
Brand: YW SHOP
SKU: In Stock ; Ship In 48 Hours
Price: 0.1 USD
Availability: InStock

Brand : ST
Date Code : 1727/2124
Packing : Reel
Package : SOT-223-4
Minimum Packing : 4000pcs

$0.10

Received successfully

Coupon Code

Discount

1/1

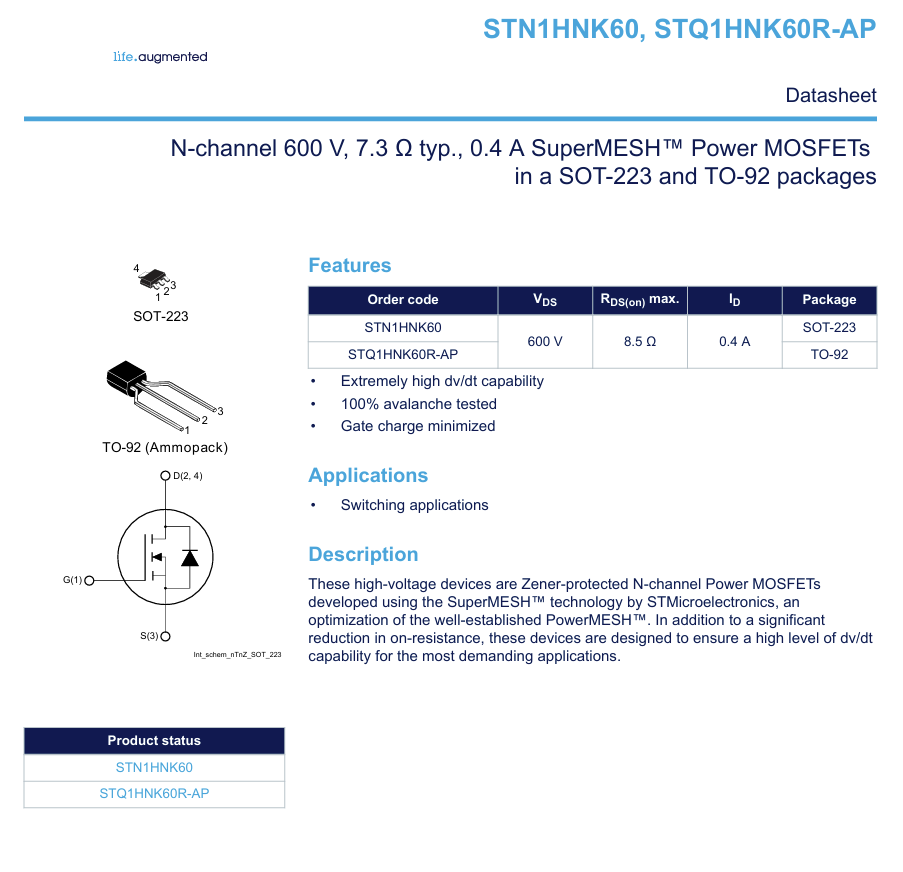

Features：
MOSFETs 600V 8Ohm 1A N-Chnnl Zener SuperMESH

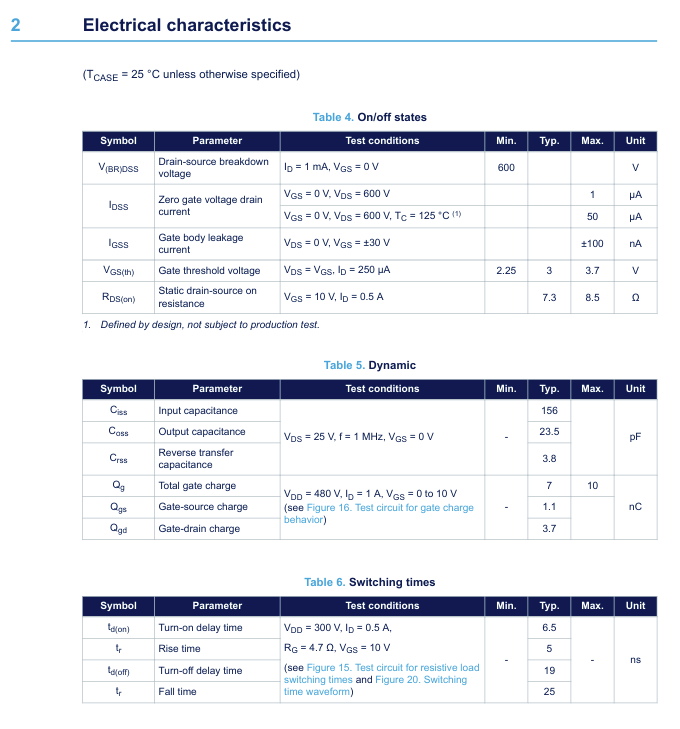

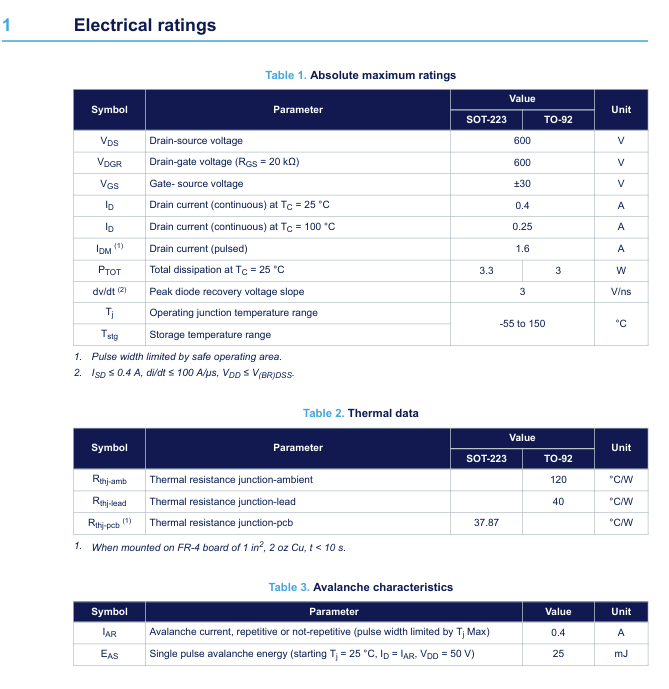

Product Attribute	Attribute Value
Vds - Drain-Source Breakdown Voltage:	600 V
Id - Continuous Drain Current:	400 mA
Rds On - Drain-Source Resistance:	8.5 Ohms
Vgs - Gate-Source Voltage:	- 25 V, + 25 V
Vgs th - Gate-Source Threshold Voltage:	2.25 V
Qg - Gate Charge:	7 nC
Minimum Operating Temperature:	- 55°C
Maximum Operating Temperature:	+ 150°C
Pd - Power Dissipation:	3.3 W
Fall Time:	25 ns
Height:	1.8 mm
Length:	6.5 mm
Typical Turn-Off Delay Time:	19 ns
Typical Turn-On Delay Time:	6.5 ns
Width:	3.5 mm
Unit Weight:	0.008818 oz
