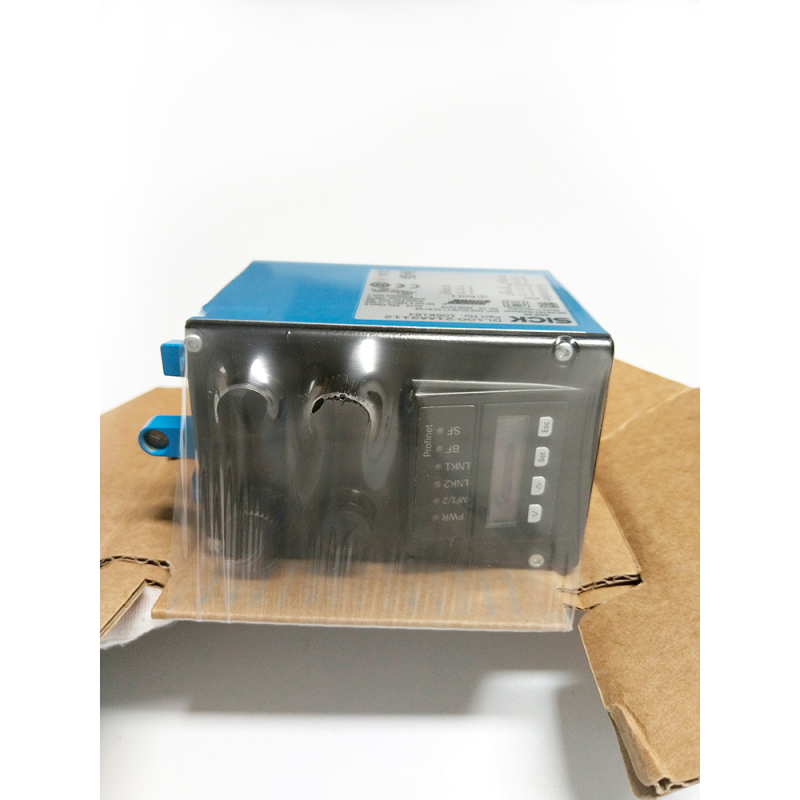

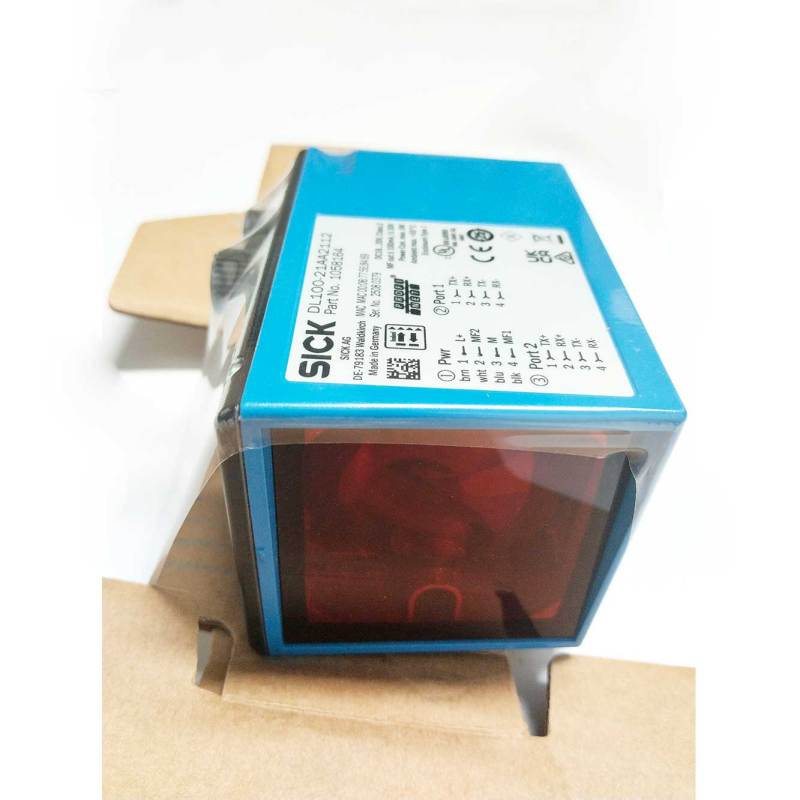

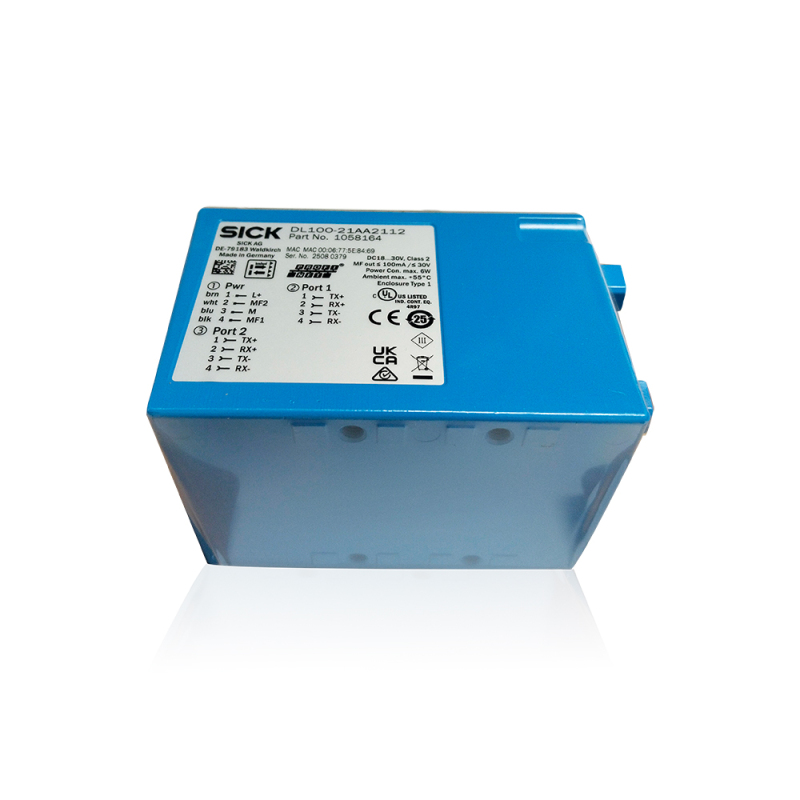

In Stock ! SICK Laser distance sensors DL100-21AA2112

Part no.: 1058164

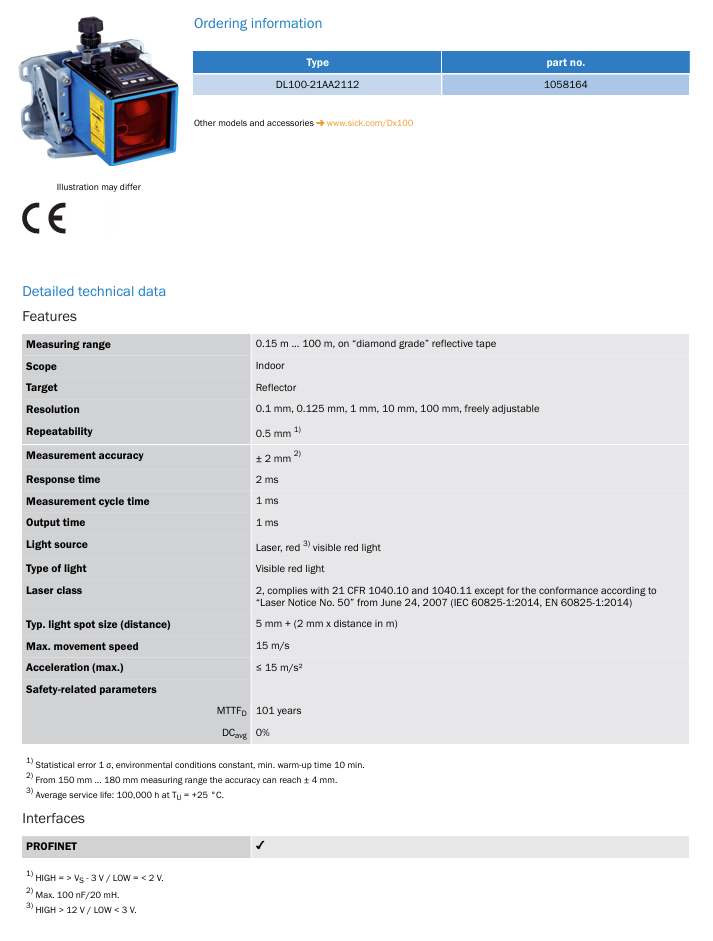

Features：

Measuring range：0.15 m ... 100 m, on “diamond grade” reflective tape

Scope：Indoor

Target：Reflector

Resolution：0.1 mm, 0.125 mm, 1 mm, 10 mm, 100 mm, freely adjustable

Repeatability：0.5 mm 1)

Measurement accuracy：± 2 mm

Response time：2 ms

Measurement cycle time：1 ms

Output time：1 ms

Light source：Laser, red

Typ. light spot size (distance)：5 mm + (2 mm x distance in m)

Max. movement speed：15 m/s

Acceleration (max.)：≤ 15 m/s²

Supply voltage UB：DC 18 V ... 30 V, limit values

Current consumption：At 24 V DC < 250 mA

Ripple：5 Vpp

Modulation frequency：Fix

Initialization time：Typ. 1.5 s

Indication：6 digit 5 x 7 dot matrix display, LEDs

Enclosure rating：IP65

Protection class：III

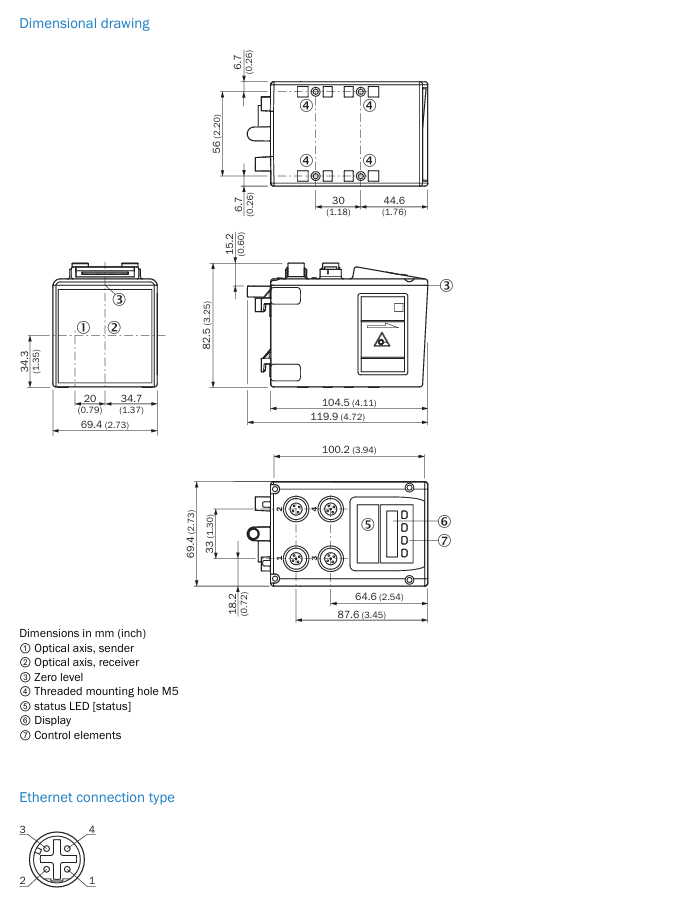

Dimensions (W x H x D)：69.4 mm x 82.5 mm x 100.2 mm

Ambient temperature, operation：

–20 °C ... +55 °C

–20 °C ... +75 °C, operation with cooling case

Ambient temperature, storage：–40 °C ... +75 °C

Effect of air pressure：0.3 ppm/hPa

Laser distance sensors

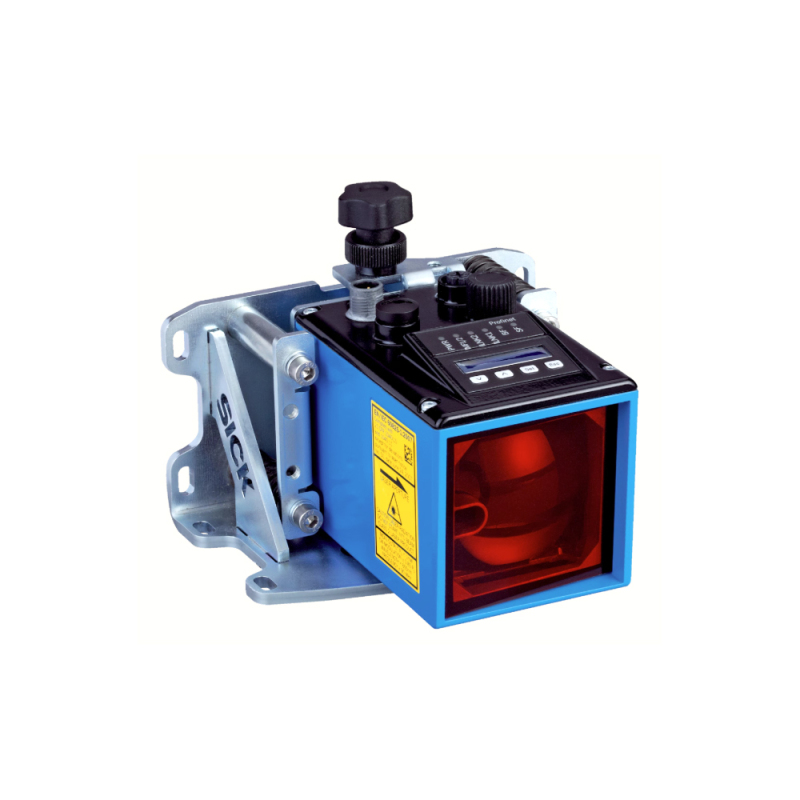

Dx100Reliable, fast, precise positioning

The Dx100 family combines leading edge technology with innovative design. The product’s phase-shift measurement technology ensures the highest performance, which, in co-operation with drives manufacturers, has been optimized for perfect integration into closed control loops. Our innovative 3-axis bracket, the smallest housing in its sensor class, as well as the intelligent quick lock system with fast connectors, offers optimized handling and reduced costs of ownership.
